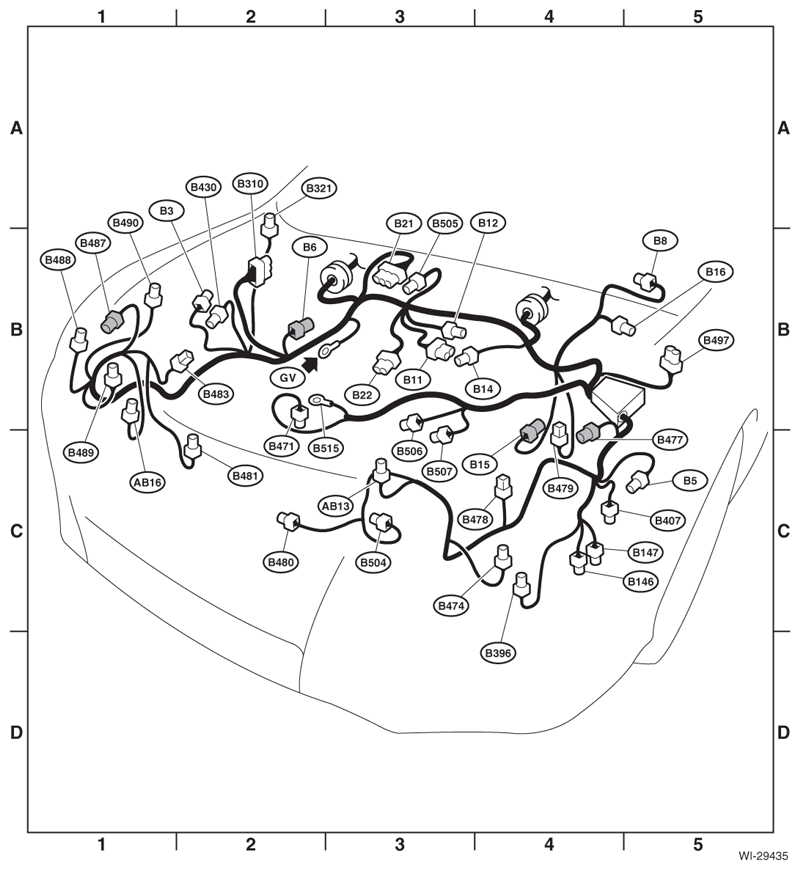

| B3 |
5 |
Black |
B-2 |
|
Mass air flow and intake air temperature sensor |
| B5 |
2 |
Light gray |
C-5 |
|
Daytime running light resistor |
| B6 |
2 |
Light gray |
B-2 |
|
Front ABS wheel speed sensor RH |
| B8 |
5 |
Light gray |
B-5 |
|
Front wiper motor |
| B11 |
20 |
Light gray |
B-3 |
T4 |
Transmission cord |
| B12 |
8 |
Light gray |
B-3 |
T3 |
| B14 |
1 |
Black |
B-3 |
|
Starter motor |
| B15 |
2 |
Light gray |
B-4 |
|
Front ABS wheel speed sensor LH |
| B16 |
2 |
Light gray |
B-4 |
|
Brake fluid level switch |
| B21 |
54 |
Black |
B-3 |
E2 |
Engine wiring harness |
| B22 |
16 |
Brown |
B-3 |
E3 |
| B146 |
2 |
Dark gray |
C-4 |
|
Front washer motor |
| B147 |
2 |
Dark gray |
C-4 |
|
Rear washer motor |
| B310 |
26 |
Black |
B-2 |
|
VDC CM |
| B321 |
2 |
|
B-2 |
|
Hood switch |
| B396 |
2 |
Brown |
C-4 |
|
Washer fluid level sensor |
| B407 |
2 |
Black |
C-4 |
|
Puddle light LH |
| B430 |
2 |
Black |
B-2 |
|
Puddle light RH |
| B471 |
3 |
Green |
B-2 |
|
Generator |
| B474 |
2 |
Brown |
C-4 |
|
Front fog light LH |
| B477 |
8 |
Light gray |
C-4 |
|
Front combination light LH |
| B478 |
5 |
|
C-4 |
|
J/C |
| B479 |
5 |
|
C-4 |
|
| B480 |
2 |
Black |
C-2 |
|
Ambient sensor |
| B481 |
1 |
|
C-2 |
|
Horn |
| B483 |
5 |
|
B-2 |
|
J/C |
| B487 |
8 |
Light gray |
B-1 |
|
Front combination light RH |
| B488 |
2 |
Brown |
B-1 |
|
Front fog light RH |
| B489 |
1 |
Black |
B-1 |
|
Horn |
| B490 |
2 |
Black |
B-1 |
|
Keyless buzzer |
| B497 |
18 |
Black |
B-5 |
|
A/C relay holder |
| B504 |
4 |
Black |
C-3 |
F135 |
Front wiring harness |
| B505 |
3 |
Light gray |
B-3 |
|
Pressure sensor |
| B506 |
2 |
Light gray |
B-3 |
|
Compressor solenoid |
| B507 |
3 |
Black |
C-3 |
|
Flow sensor |
| B515 |
1 |
|
B-2 |
|
Generator terminal B |
| AB13 |
2 |
Yellow |
C-3 |
|
Front sub sensor LH |
| AB16 |
2 |
Yellow |
B-1 |
|
Front sub sensor RH |
