| B36 |
57 |
|
B-1 |
i1 |

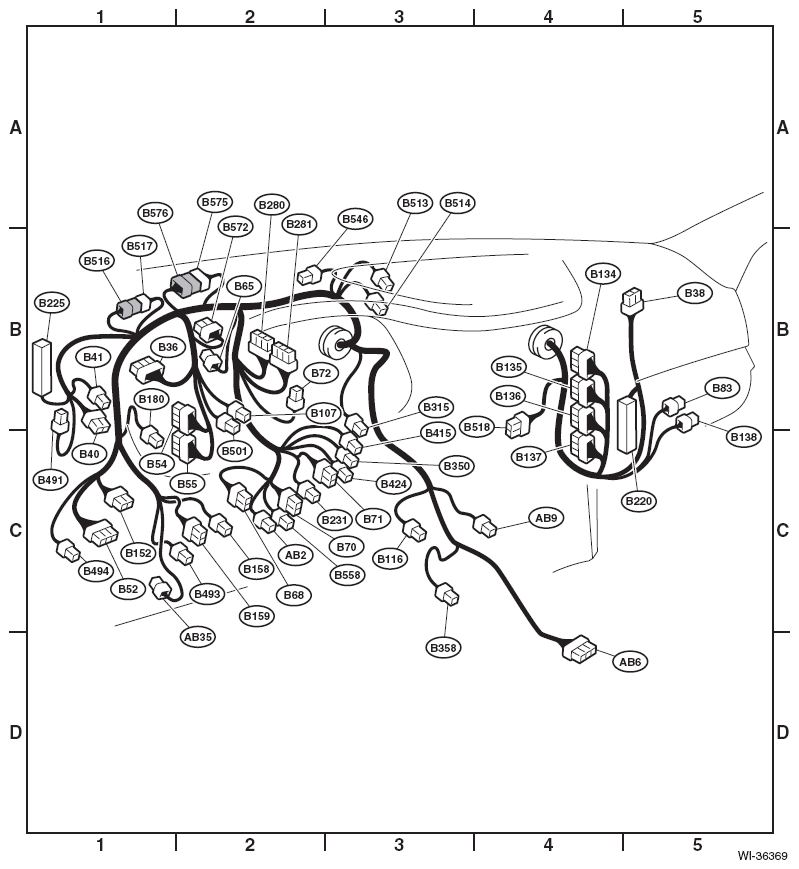

Instrument panel wiring harness |
| B38 |
19 |
|
B-5 |
i3 |
| B40 |
16 |
|
B-1 |
|
Data link connector |
| B41 |
2 |
Blue |
B-1 |
|
Power window circuit breaker |
| B52 |
24 |
|
C-1 |
|
F/B |
| B54 |
26 |
Green |
B-2 |
|
TCM |
| B55 |
22 |
Green |
C-2 |
|
| B65 |
4 |
Black |
B-2 |
|
Stop light and brake switch |
| B68 |
14 |
|
C-2 |
|
Roll connector |
| B70 |
10 |
|
C-2 |
|
Combination switch |
| B71 |
20 |
|
C-2 |
|
| B72 |
6 |
|
B-2 |
|
Ignition switch |
| B83 |
6 |
|
B-5 |
|
J/C |
| B107 |
2 |
Blue |
B-2 |
|
Clutch switch (with cruise control) |
| B116 |
8 |
|
C-3 |
|
AT select lever |
| B134 |
34 |
|
B-4 |
|
ECM |
| B135 |
35 |
|
B-4 |
|
| B136 |
35 |
|
B-4 |
|
| B137 |
31 |
|
C-4 |
|
| B138 |
8 |
|
B-5 |
|
J/C |
| B152 |
10 |
Gray |
C-1 |
|
F/B |
| B158 |
8 |
|
C-2 |
|
| B159 |
9 |
Brown |
C-2 |
|
| B180 |
4 |
|
C-1 |
|
Remote engine start CM (without push button start) |
| 8 |
|
C-1 |
|
Remote engine start CM (with push button start) |
| B220 |
21 |
Black |
B-5 |
|
IG relay |
| Fuel pump relay |
| Main relay |
| A/F, oxygen sensor relay |
| Electronic throttle control relay |
| B225 |
44 |
|
B-1 |
|
Accessory relay (push button start) |
| IG relay 1 (push button start) |
| IG relay 2 (push button start) |
| Starter relay (push button start) |
| Starter cut relay |
| Self shut relay (with push button start) |
| Starter relay (with push button start) |
| B231 |
5 |
|
C-2 |
|
Steering angle sensor |
| B280 |
34 |
|
B-2 |
|
Body integrated unit |
| B281 |
35 |
|
B-2 |
|
| B315 |
6 |
Black |
B-3 |
|
Accelerator pedal position sensor |
| B350 |
6 |
Light gray |
C-3 |
|
Key warning switch & key lock solenoid |
| B358 |
2 |
|
C-3 |
|
AT select lever illumination |
| B415 |
2 |
|
C-3 |
|
Immobilizer antenna |
| B424 |
7 |
Black |
C-3 |
|
Steering lock CM |
| B491 |
5 |
|
B-1 |
|
J/C |
| B493 |
4 |
Black |
C-2 |
|
Starter relay (without push button start) |
| B494 |
4 |
Black |
C-1 |
|
Self shut relay (without push button start) |
| B501 |
5 |
|
B-2 |
|
Clutch stroke sensor (MT model) |
| B513 |
2 |
Blue |
B-3 |
|
Stop light condenser |
| B514 |
2 |
Blue |
B-3 |
|
Stop light register |
| B516 |
2 |
|
B-1 |
B517 |
Bulkhead wiring harness |
| B517 |
2 |
|
B-1 |
B516 |
| B518 |
20 |
|
B-4 |
|
Security CM |
| B546 |
8 |
|
B-2 |
|
J/C |
| B558 |
7 |
|
C-2 |
|
Combination switch |
| B572 |
18 |
|
B-2 |
|
Keyless access CM |
| B575 |
10 |
|
B-2 |
B576 |
Bulkhead wiring harness |
| B576 |
10 |
|
B-2 |
B575 |
| AB2 |
4 |
Yellow |
C-2 |
AB7 |
Driver's airbag module |
| AB6 |
30 |
Yellow |
D-4 |
|
Airbag CM |
| AB9 |
4 |
Yellow |
C-4 |
|
Passenger's airbag module |
| AB35 |
2 |
|
C-1 |
|
F/B |
