Home
>>
Subaru
>>
2013
>>
Legacy Premium, Automatic CVT Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams & Fuse/Relay Locations
>>
Audio System
>>
Wiring Diagram
>>
Without Audio
Without Audio

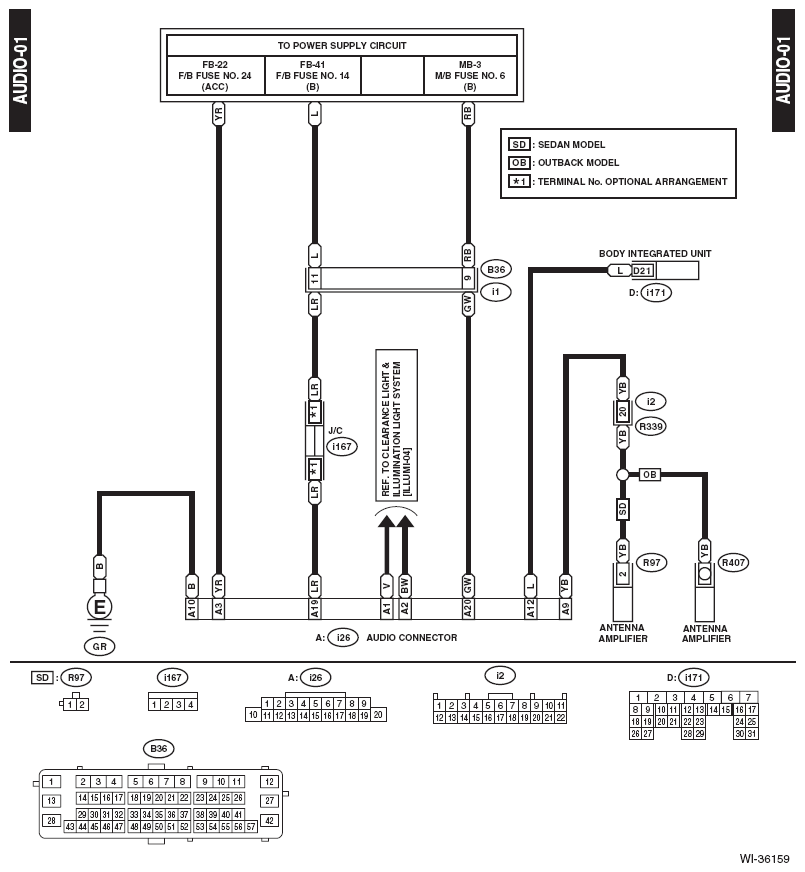

Fig 1: Audio System Wiring Diagram - Without Audio (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

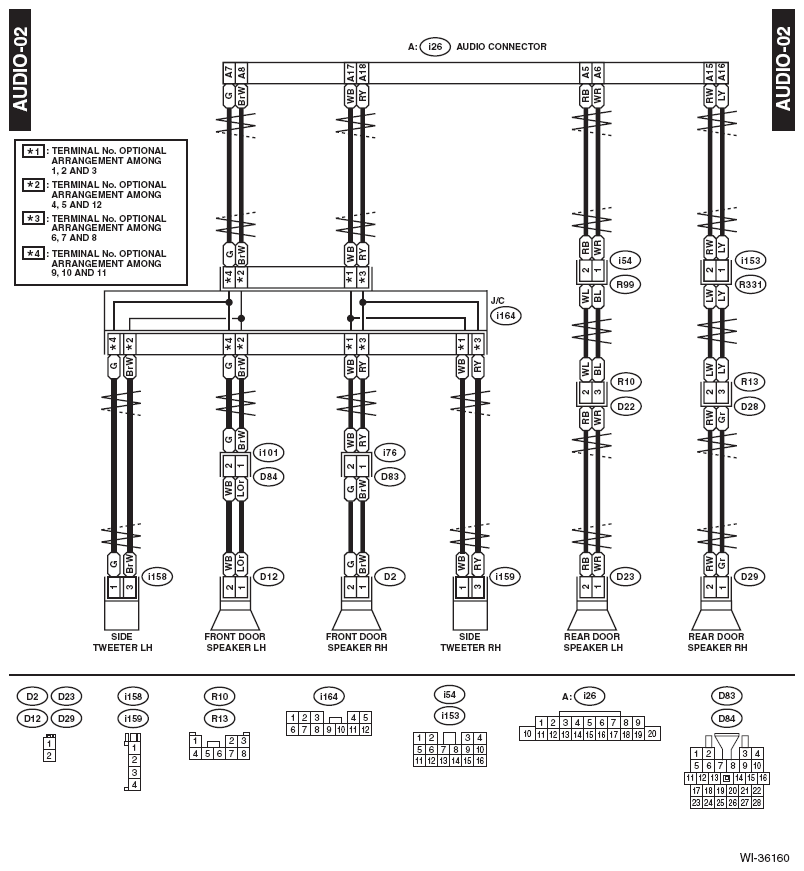

Fig 2: Audio System Wiring Diagram - Without Audio (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
