Subaru
>>
2013
>>
Legacy Premium, Automatic CVT Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams & Fuse/Relay Locations
>>
Audio System
>>
Wiring Diagram
>>
Premium Audio
Premium Audio

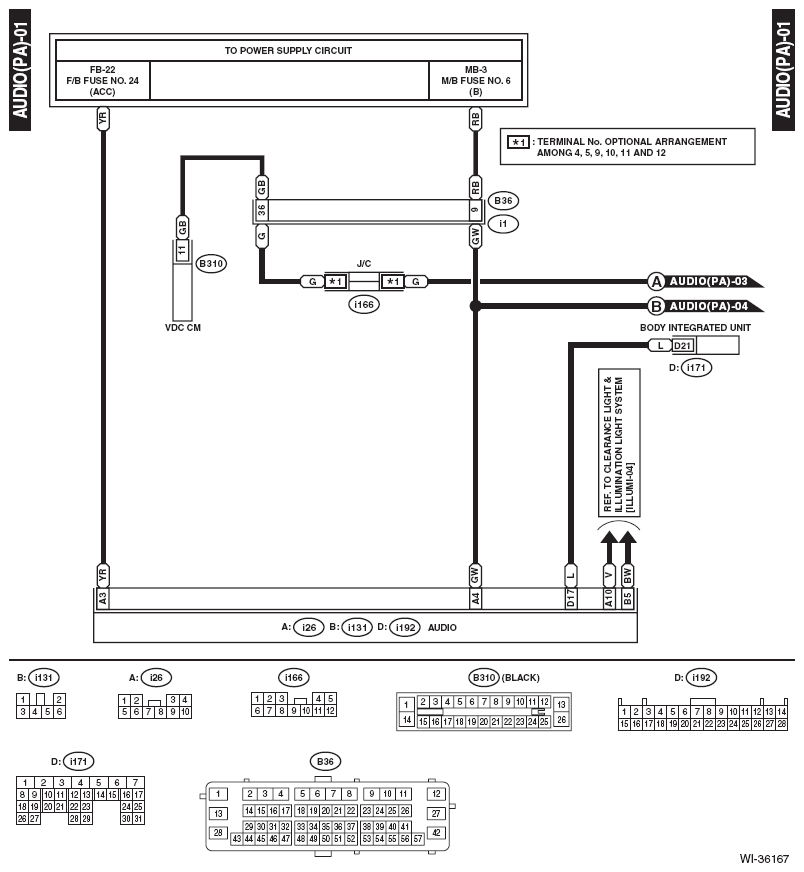

Fig 1: Audio System Wiring Diagram - Premium Audio (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

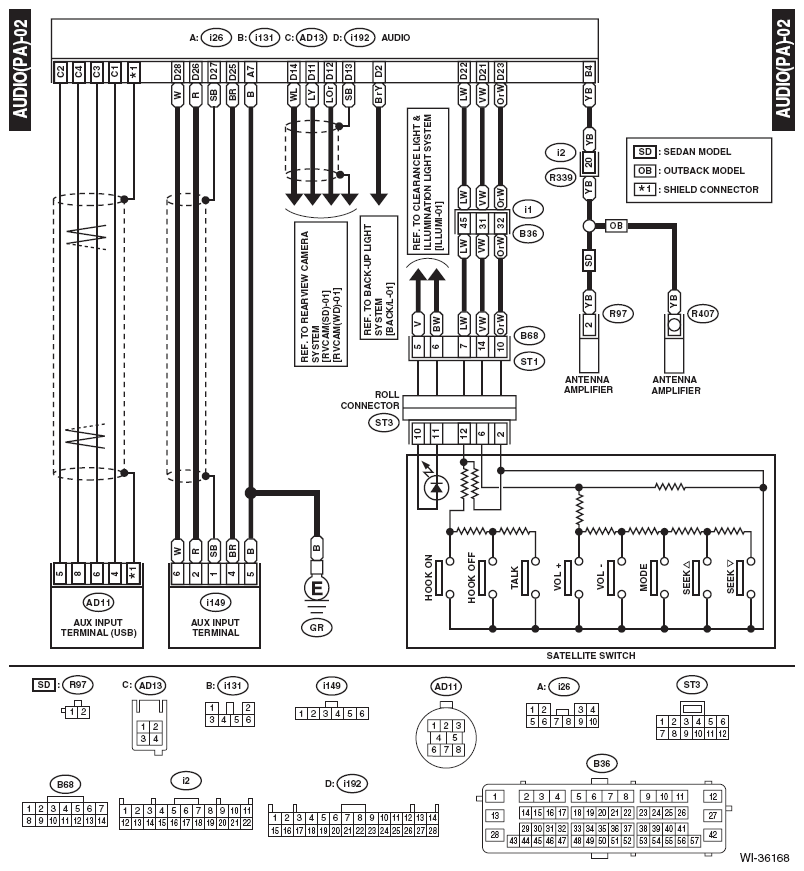

Fig 2: Audio System Wiring Diagram - Premium Audio (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

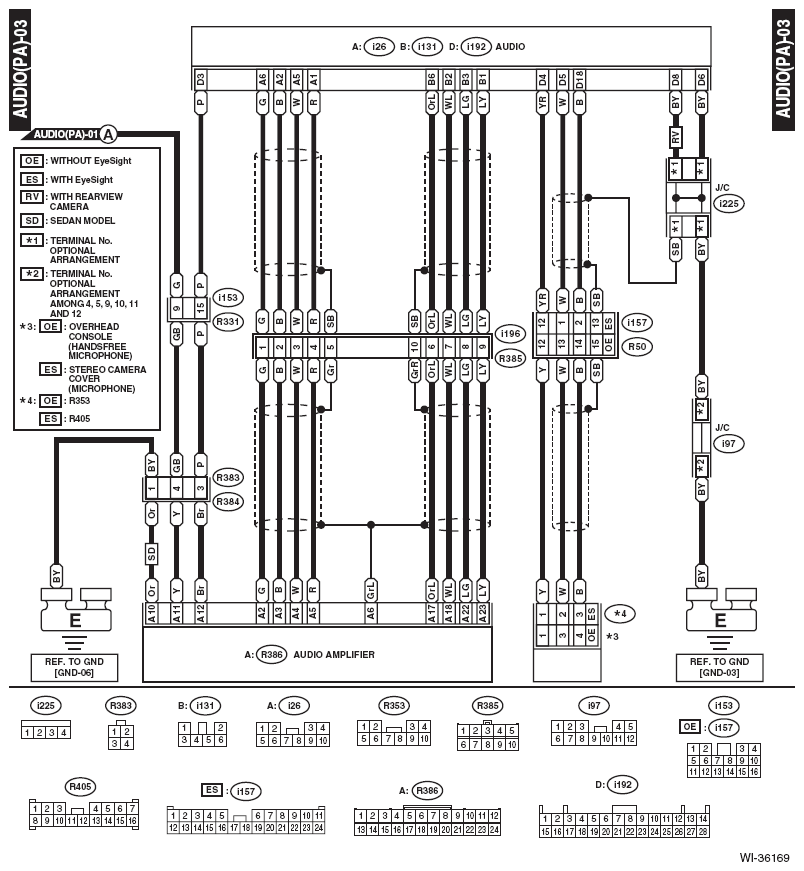

Fig 3: Audio System Wiring Diagram - Premium Audio (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

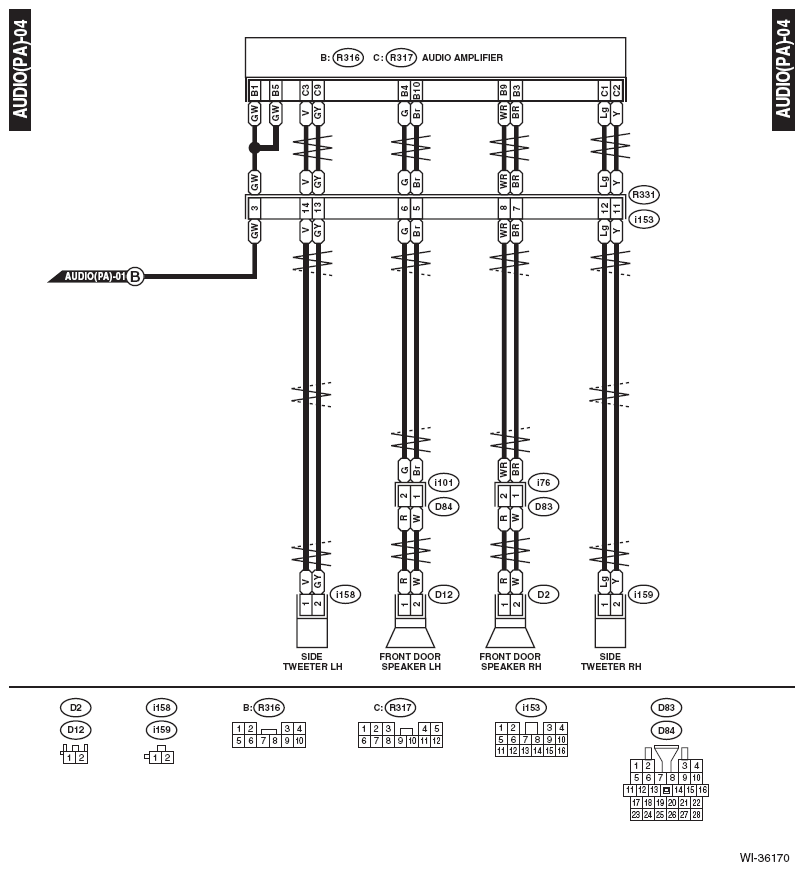

Fig 4: Audio System Wiring Diagram - Premium Audio (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

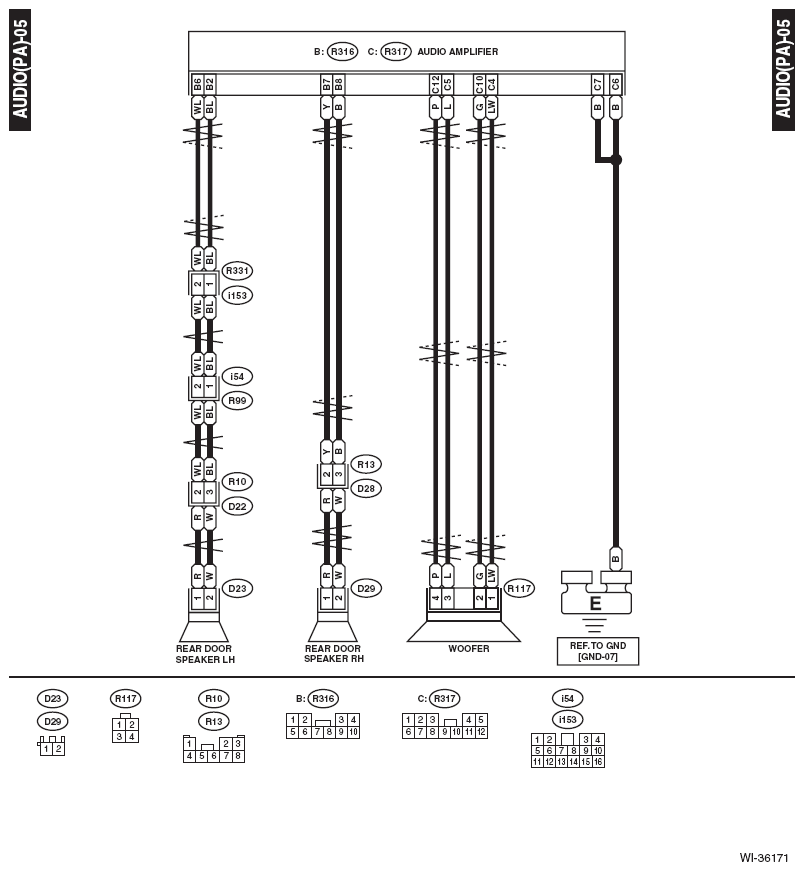

Fig 5: Audio System Wiring Diagram - Premium Audio (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
