Auto A/C

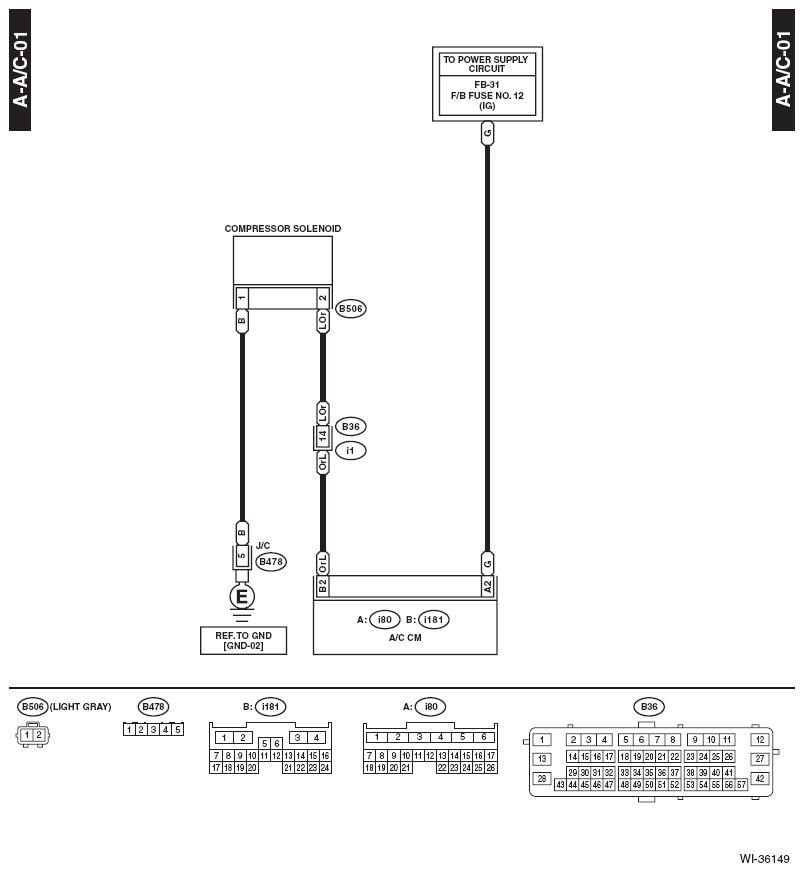

Fig 1: Air Conditioning System Wiring Diagram - Auto A/C (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

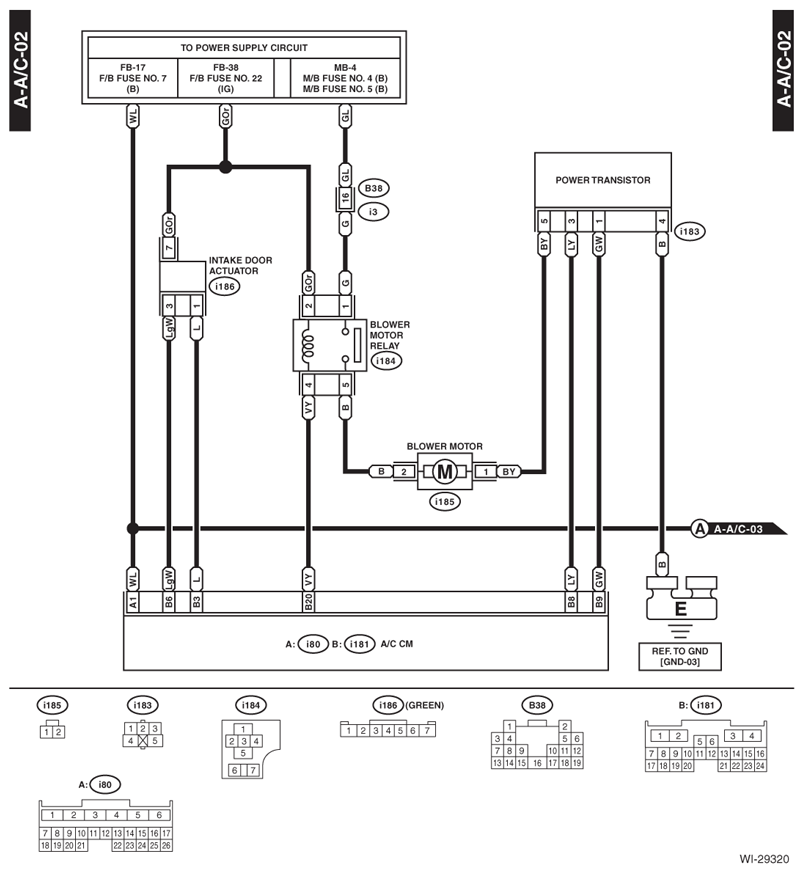

Fig 2: Air Conditioning System Wiring Diagram - Auto A/C (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

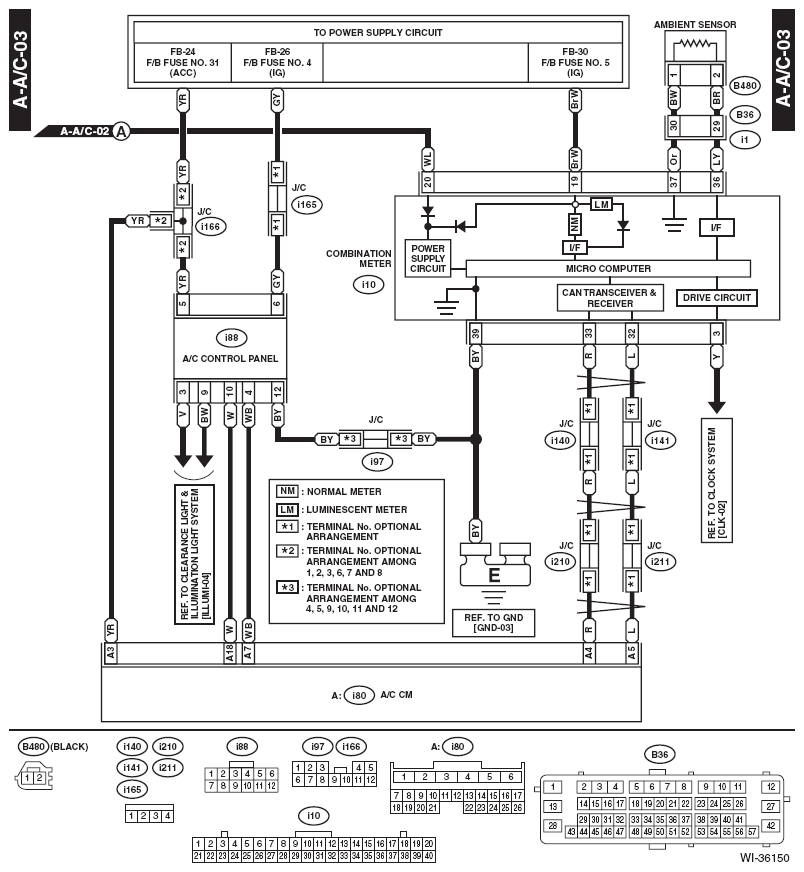

Fig 3: Air Conditioning System Wiring Diagram - Auto A/C (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

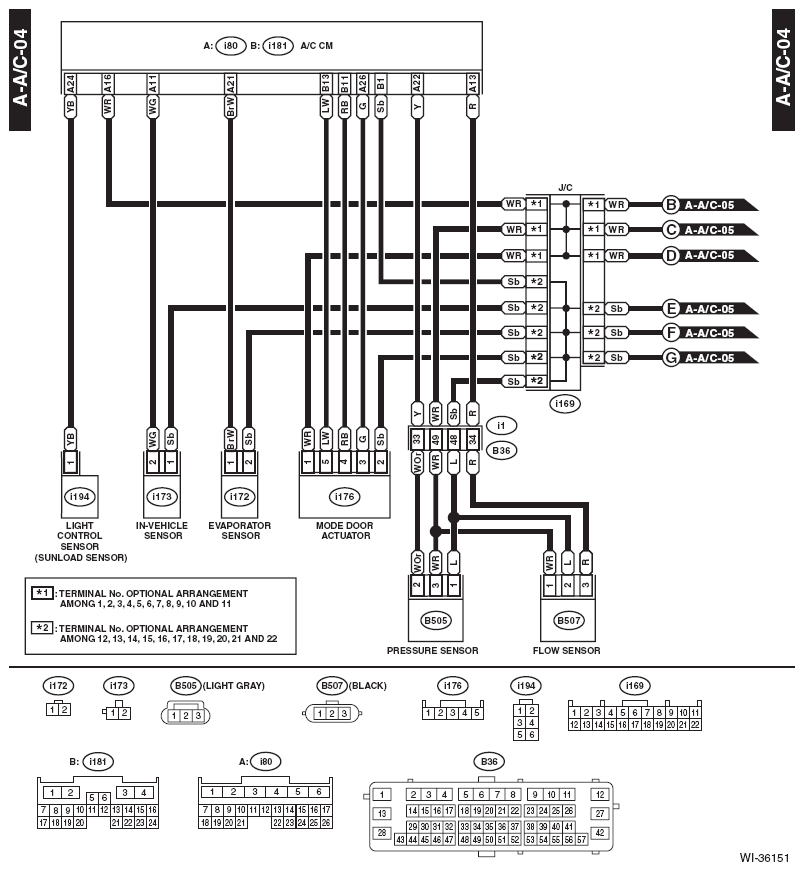

Fig 4: Air Conditioning System Wiring Diagram - Auto A/C (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

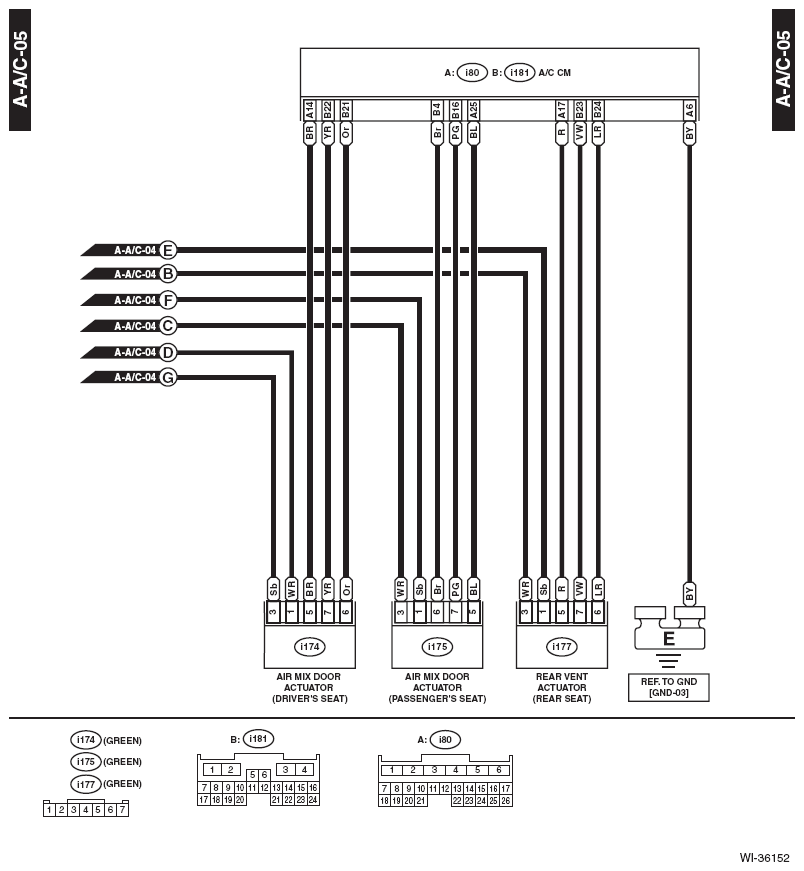

Fig 5: Air Conditioning System Wiring Diagram - Auto A/C (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
