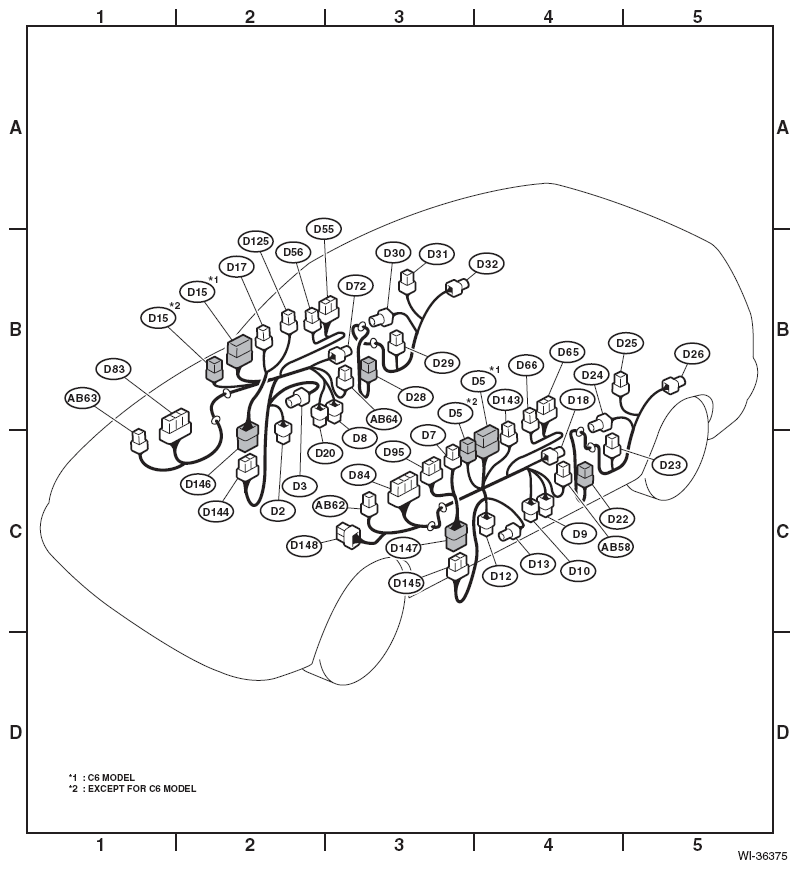

| D2 |
2 |
|
C-2 |
|
Front door speaker RH |
| D3 |
6 |
Dark gray |
B-2 |
|
Front power window motor RH |
| D5 |
6 |
|
C-3 |
|
Outer mirror assembly LH (except for C6 model) |
| 10 |
|
C-4 |
|
Outer mirror assembly LH (C6 model) |
| D7 |
3 |
|
C-3 |
|
Power window main switch |
| D8 |
6 |
|
B-3 |
|
Status switch RH |
| D9 |
6 |
|
C-4 |
|
Status switch LH |
| D10 |
2 |
|
C-4 |
|
Door step light LH |
| D12 |
2 |
|
C-4 |
|
Front door speaker LH |
| D13 |
6 |
Dark gray |
C-4 |
|
Front power window motor LH |
| D15 |
6 |
|
B-2 |
|
Outer mirror assembly RH (except for C6 model) |
| 10 |
|
B-2 |
|
Outer mirror assembly RH (C6 model) |
| D17 |
8 |
|
B-2 |
|
Front power window sub-switch |
| D18 |
2 |
|
C-4 |
|
Front door lock actuator LH |
| D20 |
2 |
|
B-2 |
|
Door step light RH |
| D22 |
8 |
|
C-4 |
R10 |
Rear wiring harness LH |
| D23 |
2 |
|
C-4 |
|
Rear door speaker LH |
| D24 |
6 |
Dark gray |
B-4 |
|
Rear power window motor LH |
| D25 |
8 |
|
B-4 |
|
Rear power window sub-switch LH |
| D26 |
2 |
|
B-5 |
|
Rear door lock actuator LH |
| D28 |
8 |
|
B-3 |
R13 |
Rear wiring harness RH |
| D29 |
2 |
|
B-3 |
|
Rear door speaker RH |
| D30 |
6 |
Dark gray |
B-3 |
|
Rear power window motor RH |
| D31 |
8 |
|
B-3 |
|
Rear power window sub-switch RH |
| D32 |
2 |
|
B-3 |
|
Rear door lock actuator RH |
| D55 |
10 |
Black |
B-3 |
|
Oscillator RH |
| D56 |
6 |
|
B-2 |
|
Front lock button RH and keyless access exterior antenna |
| D65 |
10 |
Black |
B-4 |
|
Oscillator LH |
| D66 |
6 |
|
B-4 |
|
Front lock button LH and keyless access exterior antenna |
| D72 |
2 |
|
B-3 |
|
Front door lock actuator RH |
| D83 |
28 |
|
B-2 |
i76 |
Instrument panel wiring harness |
| D84 |
28 |
|
C-3 |
i101 |
| D95 |
16 |
|
C-3 |
|
Power window main switch |
| D125 |
5 |
|
B-2 |
|
Passenger's seat door lock switch |
| D143 |
8 |
|
C-4 |
|
Seat position memory switch |
| D144 |
12 |
|
C-2 |
D146 |
Adapter cord (power window sub-switch) |
| D145 |
20 |
|
C-3 |
D147 |
Adapter cord (power window main switch) |
| D146 |
12 |
|
C-2 |
D144 |
Front door cord RH |
| D147 |
20 |
|
C-3 |
D145 |
Front door cord LH |
| D148 |
12 |
|
C-3 |
i197 |
Instrument panel wiring harness |
| AB58 |
2 |
Yellow |
C-4 |
|
Front door impact sensor LH |
| AB62 |
2 |
Yellow |
C-3 |
R123 |
Rear wiring harness LH |
| AB63 |
2 |
Yellow |
C-1 |
R124 |
Rear wiring harness RH |
| AB64 |
2 |
Yellow |
B-3 |
|
Front door impact sensor RH |
