Door Construction
The front and rear doors have in their inside a side door beam and a window shoulder area reinforcement.

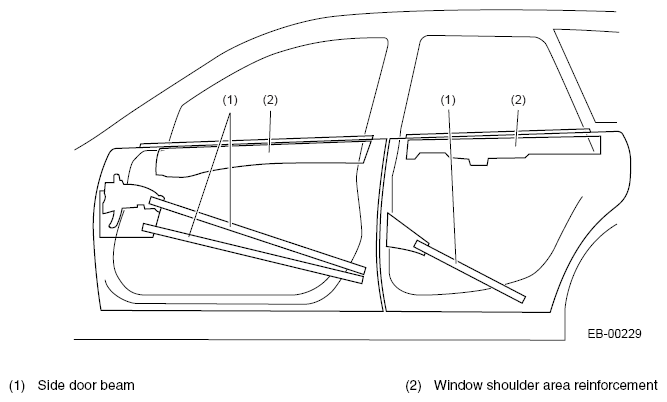

Fig 1: Identifying Side Door Beam And Window Shoulder Area Reinforcement
Courtesy of SUBARU OF AMERICA, INC.
Tight closure of each door is ensured by the double weather strip at the bottom which also reduces intruding noise.

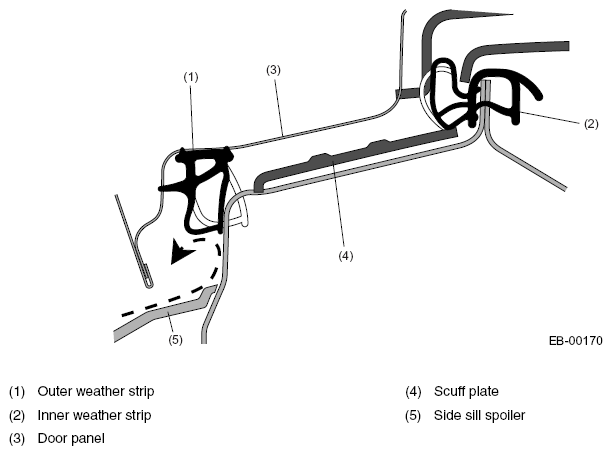

Fig 2: Identifying Side Sill Spoiler, Scuff Plate, Door Panel, Inner And Outer Weather Strip
Courtesy of SUBARU OF AMERICA, INC.
