Seat Heater Switch

  1. Disconnect the ground cable from battery.
  2. Remove the console front cover assembly.
    • MT model
      1. Remove the shift knob.
      2. Release the clips and claws, then pull up the console front cover assembly.

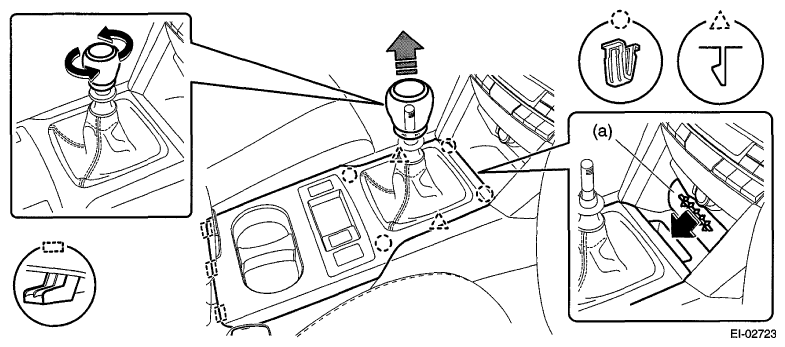

        Fig 1: Removing Console Front Cover Assembly (MT Model)
        G06653100
        NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
      3. Disconnect the harness connector and remove the console front cover assembly.
    • AT model
      1. Remove the select lever knob.
        1. Lower the cover grip AT.
        2. Remove the clamp grip pin, then remove the select lever knob.
      2. Release the clips and claws, then pull up the console front cover assembly.

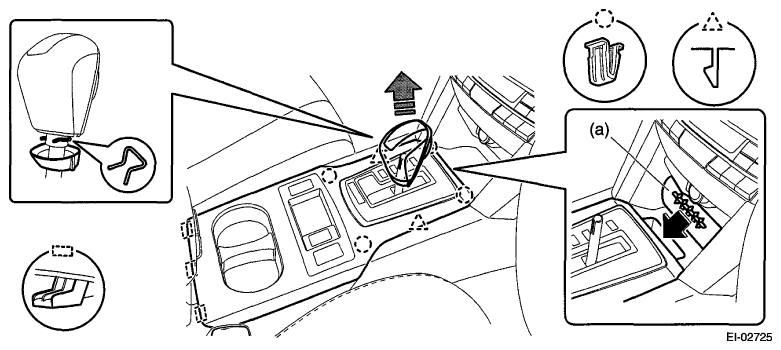

        Fig 2: Removing Console Front Cover Assembly (AT Model)
        G06653101
        NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
      3. Disconnect the harness connector and remove the console front cover assembly.
  3. Release the claws and remove the seat heater switch from the back of console front cover.
