Seat Heater Relay And Fuse

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover.
    1. Remove the clips, and remove the instrument panel side cover LH.

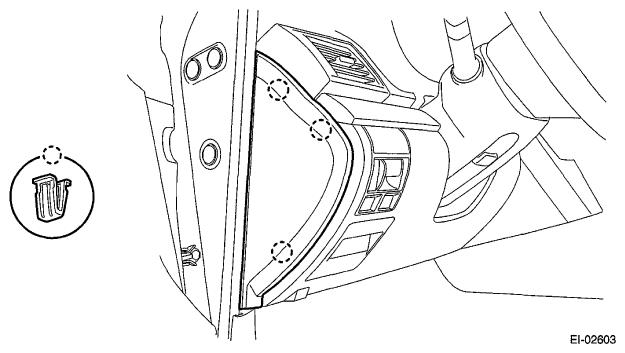

      Fig 1: Identifying Instrument Panel Side Cover Clips (LH)
      G06653104
    2. Remove the clips and data link connector, and remove the instrument panel lower cover under.

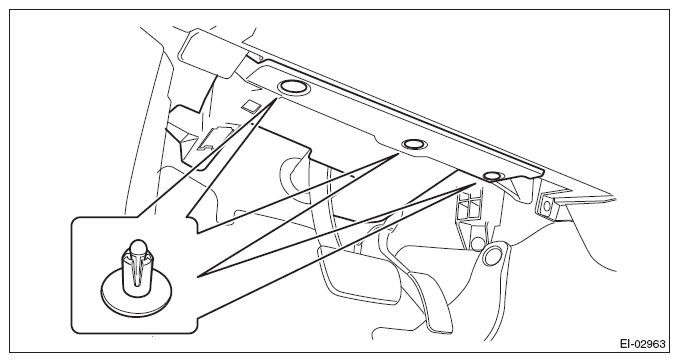

      Fig 2: Identifying Instrument Panel Lower Cover Clips
      G08584901
    3. Remove the screws and clips and release the claws, and remove the instrument panel lower cover while disconnecting the harness connectors.

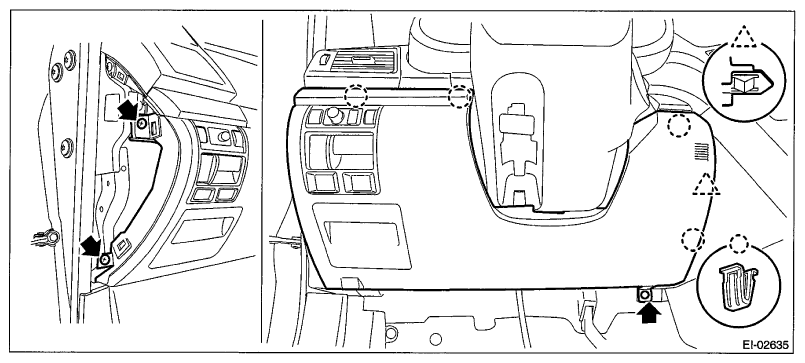

      Fig 3: Locating Instrument Panel Lower Cover Screws And Clips
      G06653106
  3. Remove the seat heater relay and fuse.
    1. Remove the joint box bolts.
    2. Remove the seat heater relay

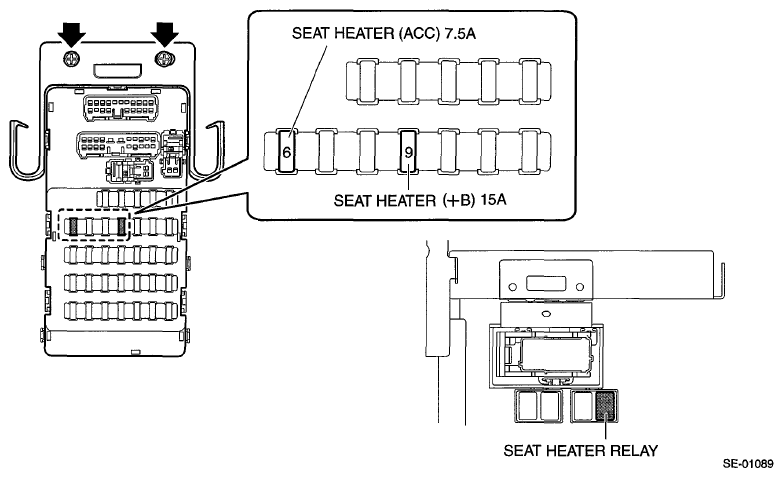

      Fig 4: Locating Seat Heater Relay And Fuse
      G06653872
