Lower Inner Trim: Removal

Release the claws, and then remove the side sill cover-front INN.
CAUTION: Do not pull with excessive force. Doing so may damage the claws of the side sill cover INN.

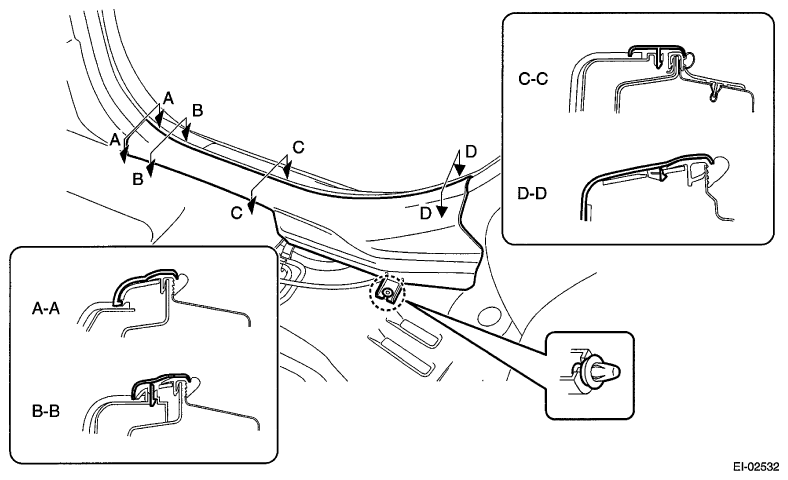

Fig 1: Identifying Side Sill Cover - Front INN On Left And Right Sides Sections
Courtesy of SUBARU OF AMERICA, INC.

NOTE: To release the claws of the side sill cover INN, the following steps are recommended.
1. Take out the weather strip from under the side sill cover INN.
2. Turn over the floor mat and release the claw (C-C) by accessing from behind the side sill cover INN.
Remove the clip, and remove the side sill cover front.

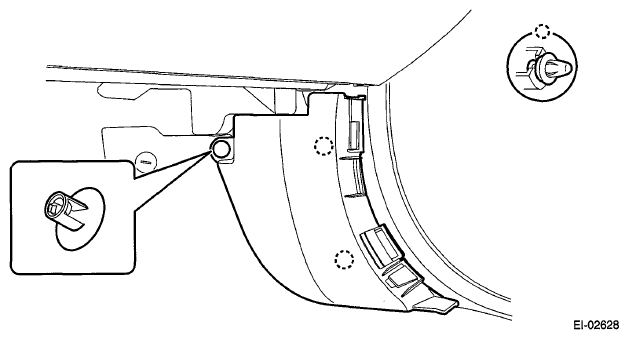

Fig 2: Identifying Sill Cover Front Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat cushion assembly.
1. Pull up the seat cushion and release the hook.
  CAUTION: If the hook is disconnected from the vehicle body, replace the hook with the new part to prevent the decline of the fixed force of the seat.

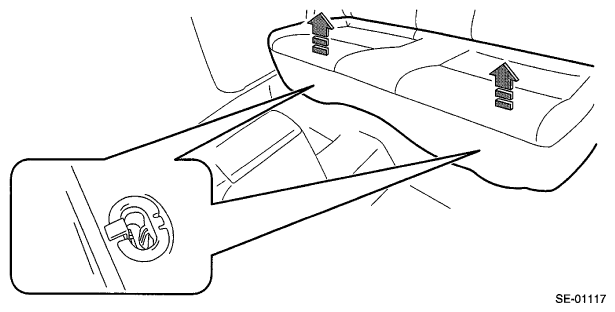

  Fig 3: Identifying Hook
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 4: Removing Rear Seat Cushion Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the hook (A) by pushing it back while lifting the front side of the seat cushion, and remove the seat cushion.

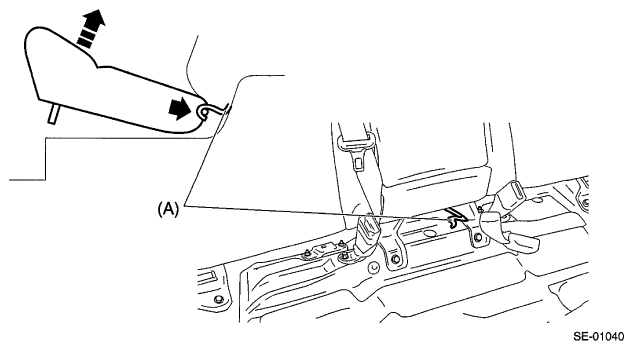

  Fig 5: Removing Hook By Pushing It Back
  Courtesy of SUBARU OF AMERICA, INC.
Release the clips and claws, and then remove the side sill cover - rear INN.
CAUTION: Do not pull with excessive force. Doing so may damage the claws of the side sill cover INN.

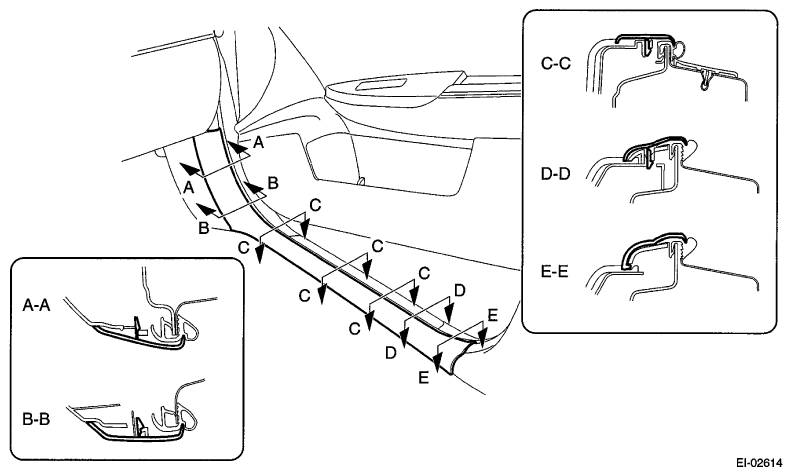

Fig 6: Identifying Side Sill Cover Sections - Rear INN
Courtesy of SUBARU OF AMERICA, INC.

NOTE: To release the claws of the side sill cover INN, the following steps are recommended.
1. Take out the weather strip from under the side sill cover INN.
2. Turn over the floor mat and release the claw (C-C and D-D) by accessing from behind the side sill cover INN.
Remove the center pillar trim LWR.
1. Release the clip by pulling the center pillar trim LWR toward you.
2. Expand the claws of center pillar trim LWR outward and remove it from the center pillar trim UPR.
  CAUTION: Do not expand the center pillar trim LWR excessively. Doing so may damage the trim.

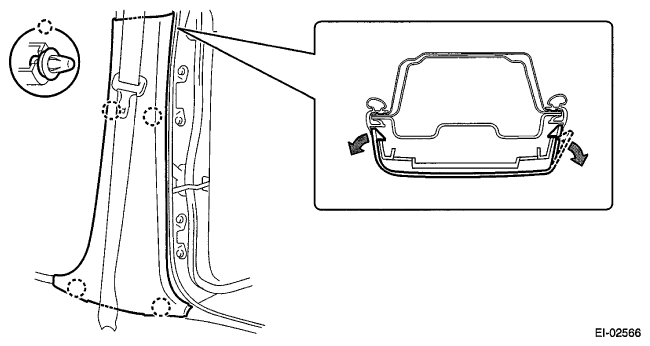

  Fig 7: Removing Center Pillar Trim LWR
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: First release the claw located to the rear of the vehicle.

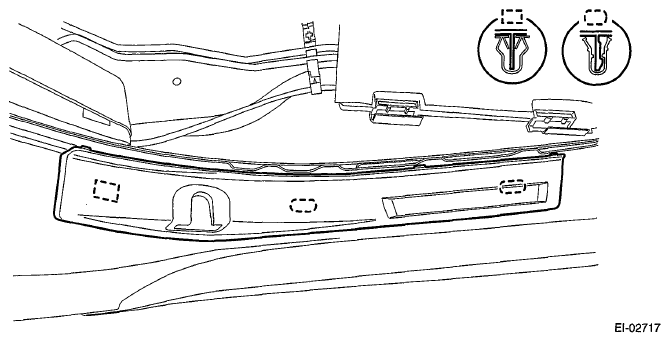

Release the claws, and then remove the side sill cover-front OUT.

Fig 8: Identifying Side Sill Cover Claws
Courtesy of SUBARU OF AMERICA, INC.

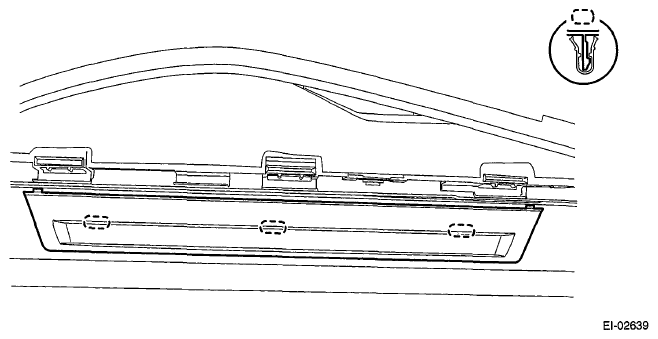

Release the claws and metal clips, and then remove the side sill cover-rear OUT.

Fig 9: Identifying Side Sill Cover Claws And Metal Clips
Courtesy of SUBARU OF AMERICA, INC.
