Front Under Cover: Removal

  1. Lift up the vehicle.
  2. Remove the bolts and clips, and remove the front under cover.

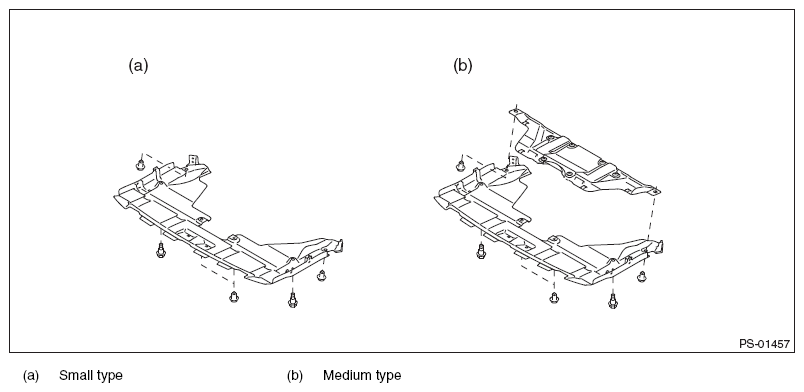

    Fig 1: Identifying Front Under Cover (Small Type And Medium Type)
    G08585128Courtesy of SUBARU OF AMERICA, INC.
