Radio Antenna Amplifier

Sedan model
1. Remove the rear quarter trim LH. Refer to SEDAN MODEL .
2. Remove the radio antenna amplifier assembly.
  1. Disconnect the connector.
  2. Remove the bolts, and then remove the radio antenna amplifier assembly.

    Fig 1: Locating Radio Antenna Amplifier Assembly Mounting Bolts
    Courtesy of SUBARU OF AMERICA, INC.
OUTBACK model
1. Remove the rear gate upper trim.
  1. Remove the claws on the trim edge.
  2. Disconnect the claws in the center of trim, and remove the rear gate upper trim.

    Fig 2: Removing Rear Gate Upper Trim
    Courtesy of SUBARU OF AMERICA, INC.
2. Remove the radio antenna amplifier assembly.
  1. Disconnect the connector.
  2. Remove the bolts, and then remove the radio antenna amplifier assembly.

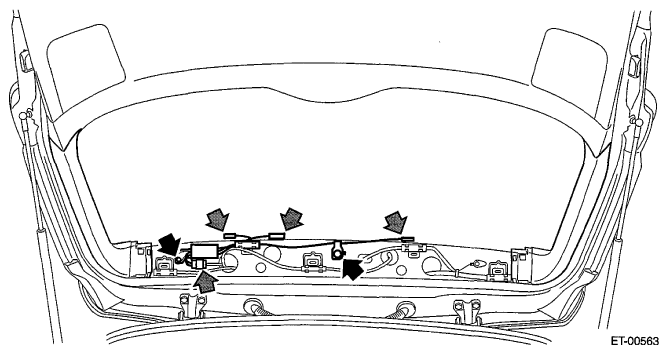

    Fig 3: Locating Radio Antenna Amplifier Assembly Connector And Mounting Bolts
    Courtesy of SUBARU OF AMERICA, INC.
