56 - 64 Ω (Stereo Camera): Wiring Diagram

CAN communication system. See appropriate SYSTEM WIRING DIAGRAM article.

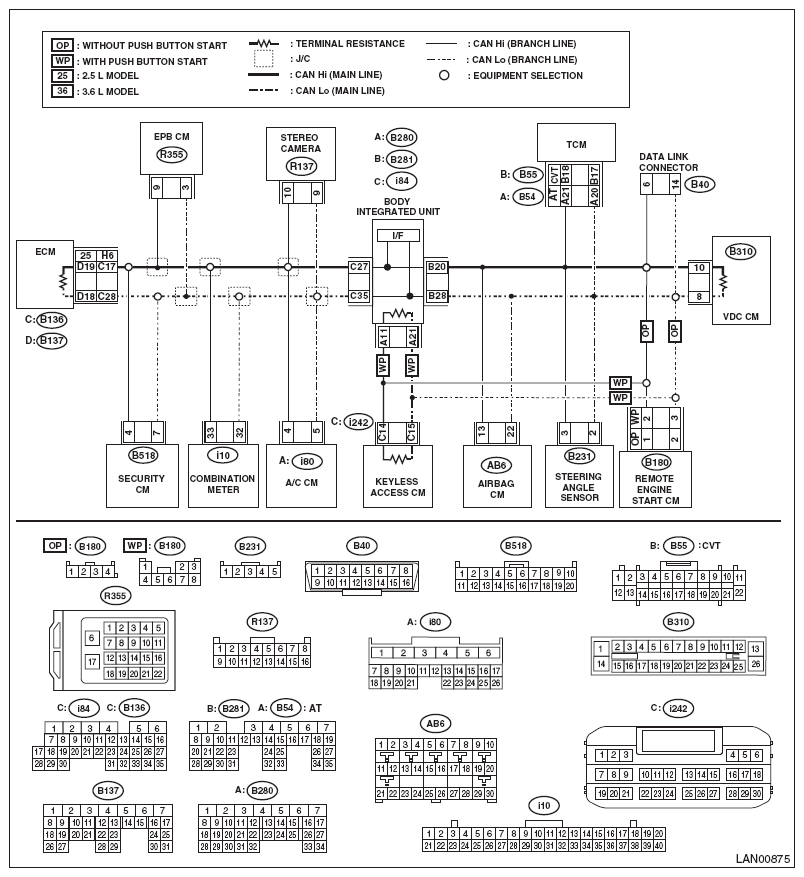

Fig 1: CAN Communication System - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS. Disconnect the stereo camera CM connector. Using the tester, measure the resistance between terminals. Connector & terminal (R137) No. 10 - No. 9:	Is the resistance 400 Ω or more?	Related lines between stereo camera CM and main wiring harness is open, or main wiring harness is open at two places or more.	Go to step 2 .
2 CHECK RELATED LINES. Using the tester, measure the resistance between terminals. Connector & terminal (R137) No. 9 - (B40) No. 14: (R137) No. 10 - (B40) No. 6:	Is the resistance 10 Ω or more?	Repair or replace the open circuit portion of stereo camera CM related lines.	Check DTC of stereo camera. Refer to OPERATION .
