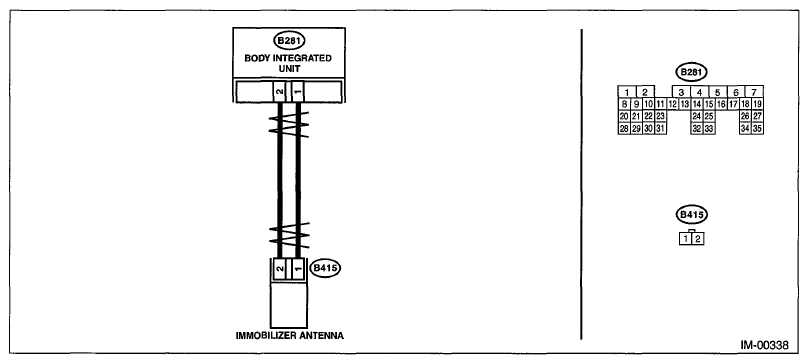

DTC B1570 Antenna: Wiring Diagram
Immobilizer system. See appropriate SYSTEM WIRING DIAGRAM article.
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK ANTENNA CIRCUIT.
|
Is the resistance 6 - 10 Ω? | Go to step 2 . | Replace the antenna. Refer to IMMOBILIZER ANTENNA . |
2 CHECK ANTENNA CIRCUIT.
|
Is the resistance less than 10 Ω? | Go to step 3 . | Repair the harness. |
| 3 CHECK ANTENNA CIRCUIT. Measure the resistance between body integrated unit connector and chassis ground. Connector & terminal (B281) No. 1 - Chassis ground: (B281) No. 2 - Chassis ground: |
Is the resistance 1 MΩ or more? | Go to step 4 . | Repair the harness. |
4 CHECK BODY INTEGRATED UNIT FUNCTION.
|
Is the maximum voltage more than 40 V? (Approx. 0.1 second after inserting the key) Is the voltage 0 V? (Approx. 1 second after inserting the key) | Go to step 5 . | Replace the body integrated unit Refer to BODY INTEGRATED UNIT . Register all ignition keys (transponders). Refer to the "REGISTRATION MANUAL FOR IMMOBILIZER". |
5 CHECK IGNITION KEY (TRANSPONDER).
|
Does the engine start? | Replace the ignition key (transponder). Execute the registration procedure next. Refer to the "REGISTRATION MANUAL FOR IMMOBILIZER". | Replace the body integrated unit Refer to BODY INTEGRATED UNIT . Register all ignition keys (transponders). Refer to the "REGISTRATION MANUAL FOR IMMOBILIZER". |
