Purge Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut which holds the purge control solenoid valve onto intake manifold.
NOTE: Hold the purge control solenoid valve unit by hand to prevent it from rotating together.

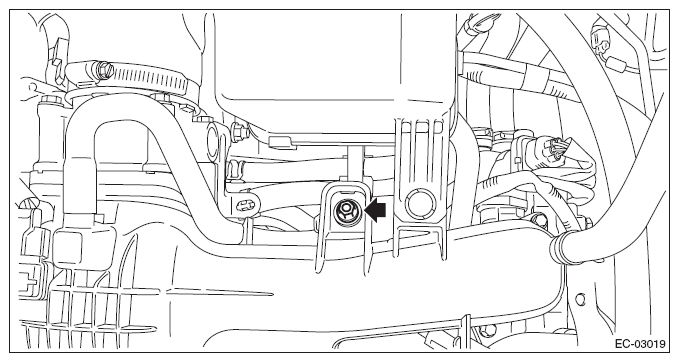

Fig 2: Locating Purge Control Solenoid Valve Nut
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the vacuum hose from purge control solenoid valve.

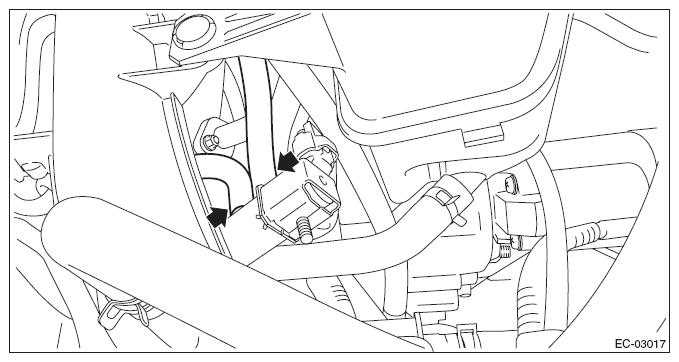

Fig 3: Locating Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the purge control solenoid valve, and then remove the purge control solenoid valve.

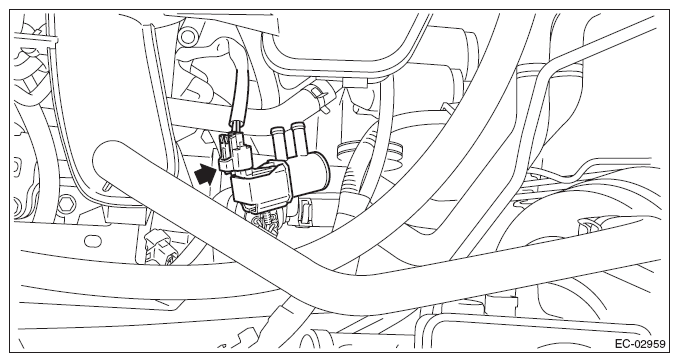

Fig 4: Locating Purge Control Solenoid Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
