EGR Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 2: Identifying Air Intake Boot Clamps And Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 3: Identifying Air Intake Boot And Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe assembly from the water pipe assembly and the cylinder head RH.

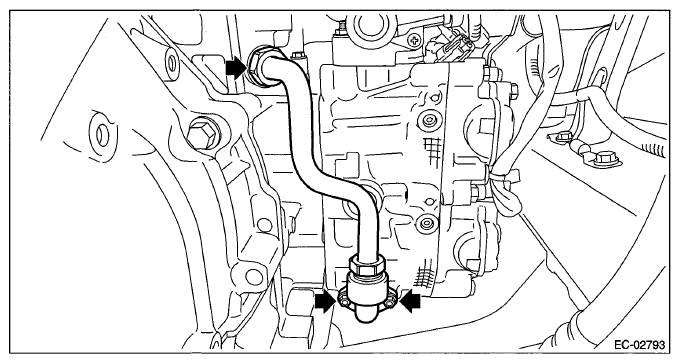

Fig 4: Locating EGR Pipe Assembly Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe from EGR pipe adapter.

Fig 5: Locating EGR Pipe Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the throttle body.

Fig 6: Locating Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the throttle body and the blow-by hose stay to the intake manifold, and tilt the throttle body to the rear side of vehicle.

Fig 7: Locating Throttle Body Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts that hold the EGR pipe to the intake manifold and the water pipe assembly, and remove the EGR pipe.

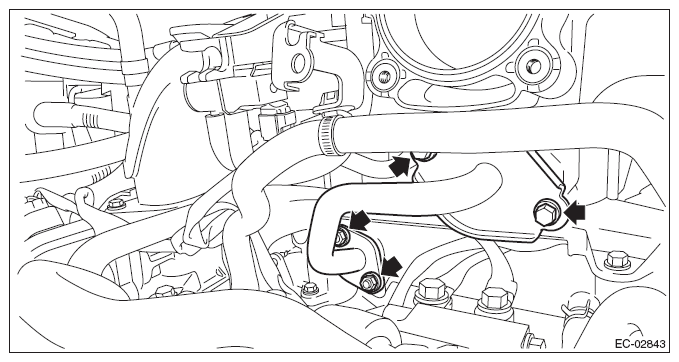

Fig 8: Locating EGR Pipe To Intake Manifold Mounting Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
