Section 9 (Emission Control Systems (Aux. Emission Control Devices) (H4DO)): Canister: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Open the rear gate, and remove the luggage floor mat.
Remove the center sub trunk (A) (model with center sub trunk), and remove the sub trunk RH (B) and sub trunk LH (C) fixed by clips.

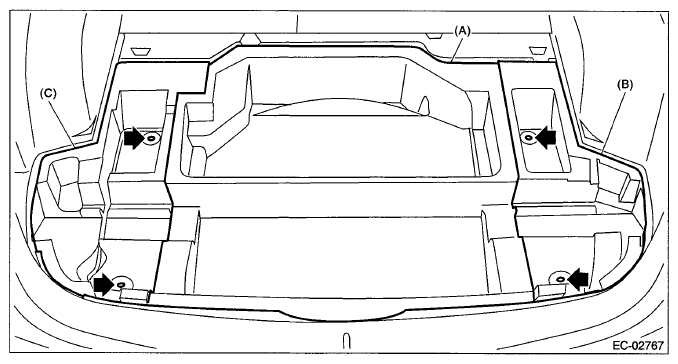

Fig 2: Locating Sub Trunk RH And Sub Trunk LH Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Tilt the rear seat backrest forward.
Remove the clips that is holding the rear seat backrest cover on the canister cover, and turn over the rear seat backrest cover toward the front side of the vehicle.

Fig 3: Locating Canister Cover Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the center canister cover.

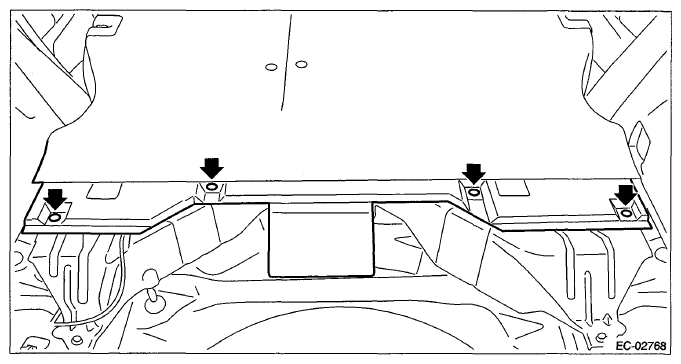

Fig 4: Locating Center Canister Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the canister cover RH.

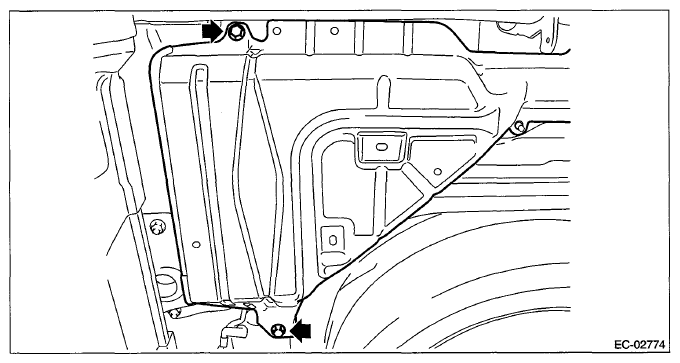

Fig 5: Locating Canister Cover Nuts (RH)
Courtesy of SUBARU OF AMERICA, INC.

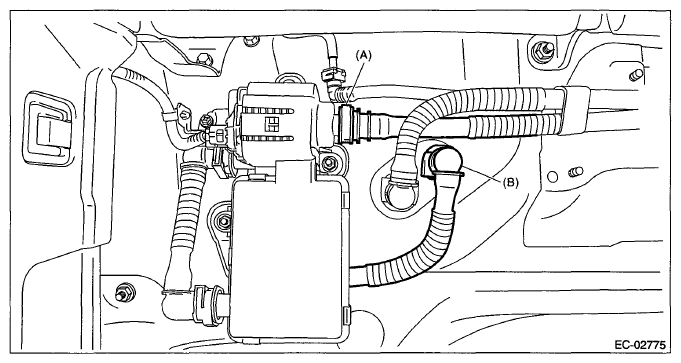

Disconnect the purge tube (A), vent tube (B), and drain tube A (C).
NOTE: Disconnect the quick connector as shown in the figure.

Fig 6: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Purge Tube, Vent Tube And Drain Tube
Courtesy of SUBARU OF AMERICA, INC.

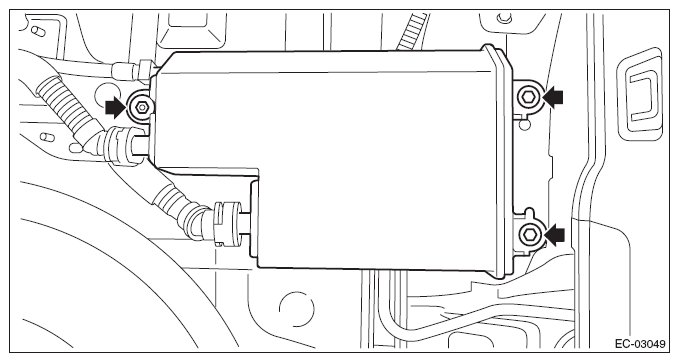

Remove the canister.

Fig 8: Locating Canister Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

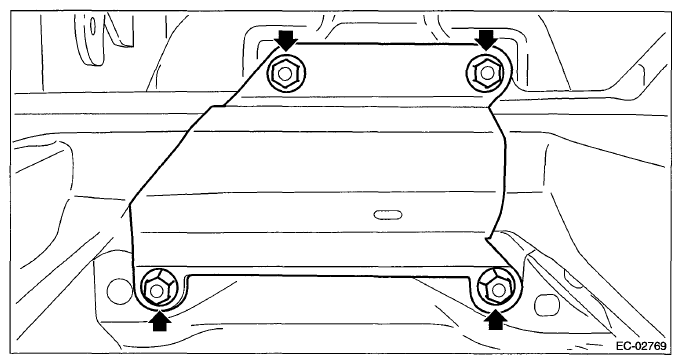

Remove the canister cover LH.

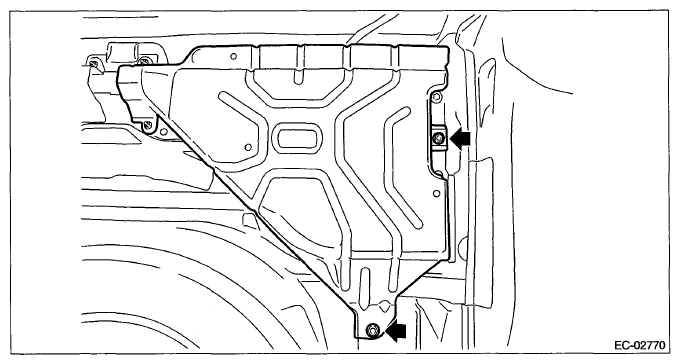

Fig 9: Locating Canister Cover Bolts (LH)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect drain tube A (A) and drain tube B (B).
NOTE: Disconnect the quick connector as shown in the figure.

Fig 10: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Drain Tube A And B
Courtesy of SUBARU OF AMERICA, INC.

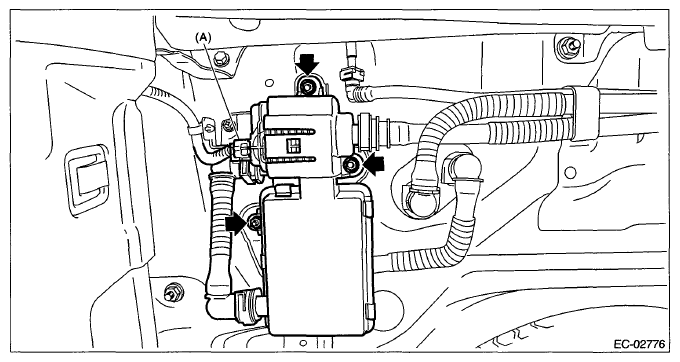

Disconnect the connector (A) from leak check valve assembly, and remove the leak check valve assembly.

Fig 12: Locating Leak Check Valve Assembly And Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

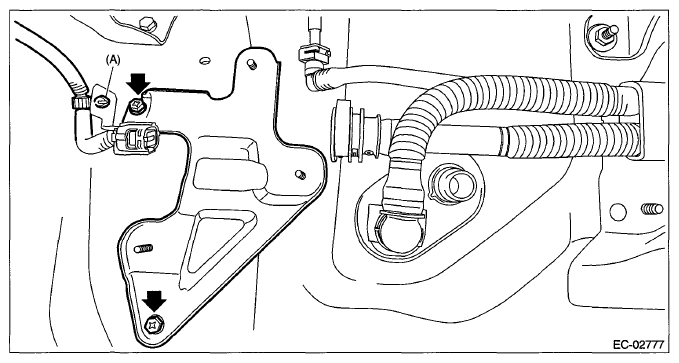

Remove the clip (A) which secures the leak check valve harness to the bracket, and remove the valve bracket.

Fig 13: Locating Valve Bracket Mounting Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect purge tube (A) and vent tube (B).
NOTE: Disconnect the quick connector as shown in the figure.

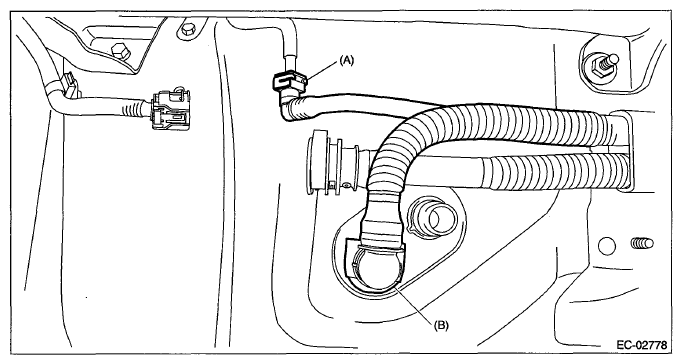

Fig 14: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Identifying Purge Tube And Vent Tube
Courtesy of SUBARU OF AMERICA, INC.

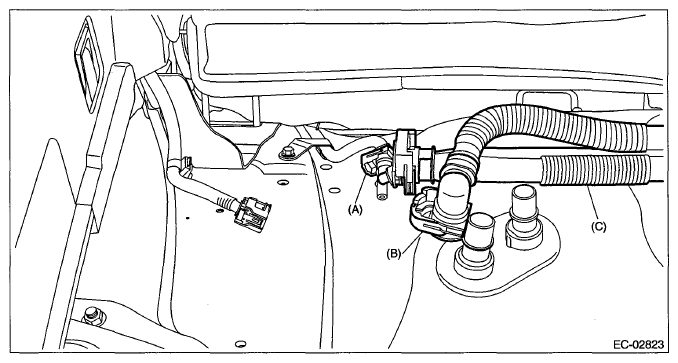

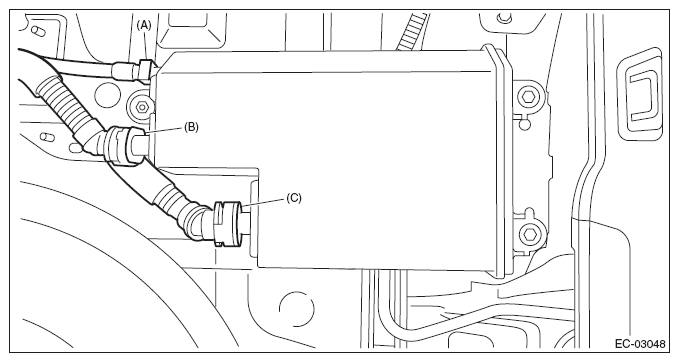

Remove purge tube (A), vent tube (B), and drain tube A (C).

Fig 16: Identifying Purge Tube, Vent Tube And Drain Tube A
Courtesy of SUBARU OF AMERICA, INC.
