Section 9 (Emission Control Systems (Aux. Emission Control Devices) (H4DO)): Canister: Installation

Install in the reverse order of removal while being careful of the following.

• Connect the quick connector as shown in the figure.
  CAUTION:

  • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
  • When connecting the quick connector, securely insert the pipe all the way before locking the retainer.
  • When it is difficult to lock the retainer, make sure that the pipe is securely inserted.
  • Make sure that the quick connector is securely connected.
  Fig 1: Connecting Quick Connector

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

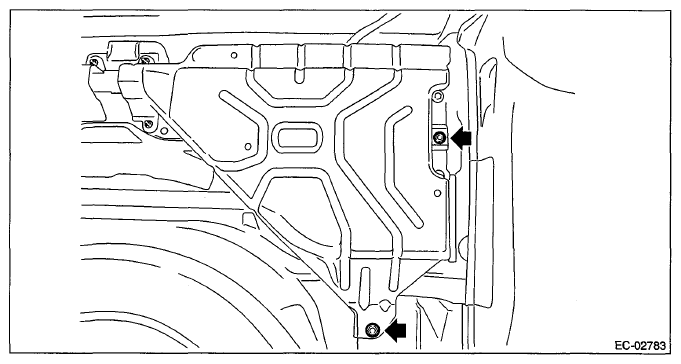

Fig 2: Identifying Retainer Mounting Bolt (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

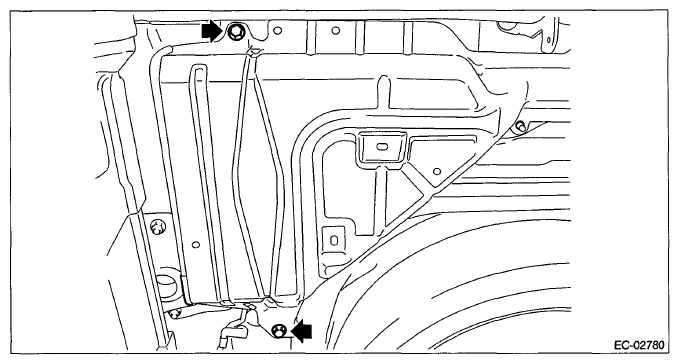

Fig 3: Identifying Retainer Mounting Bolt (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

N.m (1.8 kgf-m, 13.3 ft-lb)

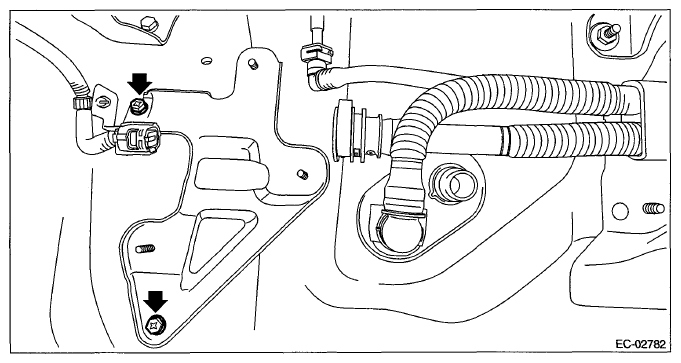

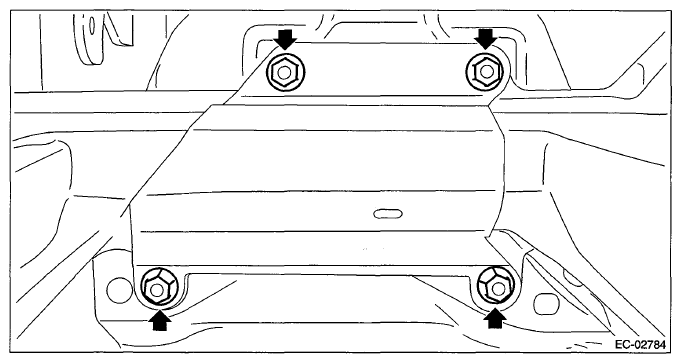

Fig 4: Locating Valve Bracket Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

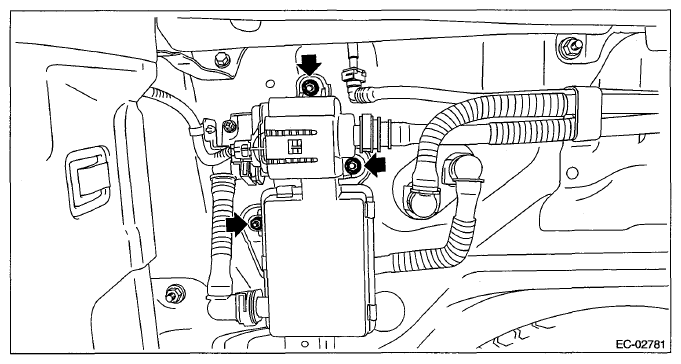

Fig 5: Locating Leak Check Valve Assembly Mounting Nuts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

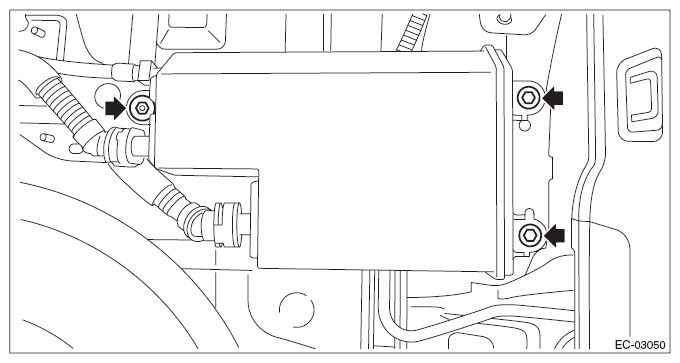

Fig 6: Locating Valve Bracket Mounting Bolts (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Locating Valve Bracket Mounting Bolts (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
