Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

WARNING: This page is about a different variant/trim than selected.

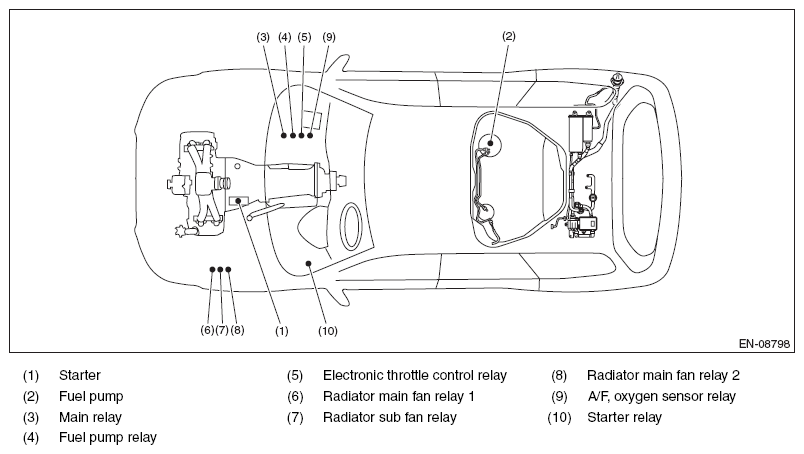

Fig 1: Solenoid Valve, Actuator, Emission Control And Ignition System Parts Components Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

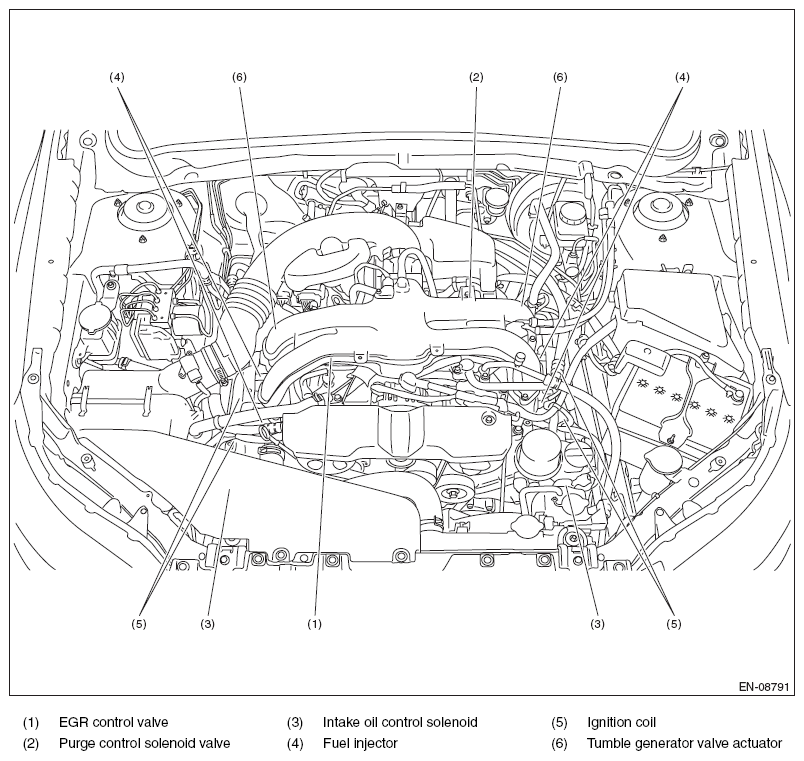

Fig 2: Solenoid Valve, Actuator, Emission Control And Ignition System Parts Components Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

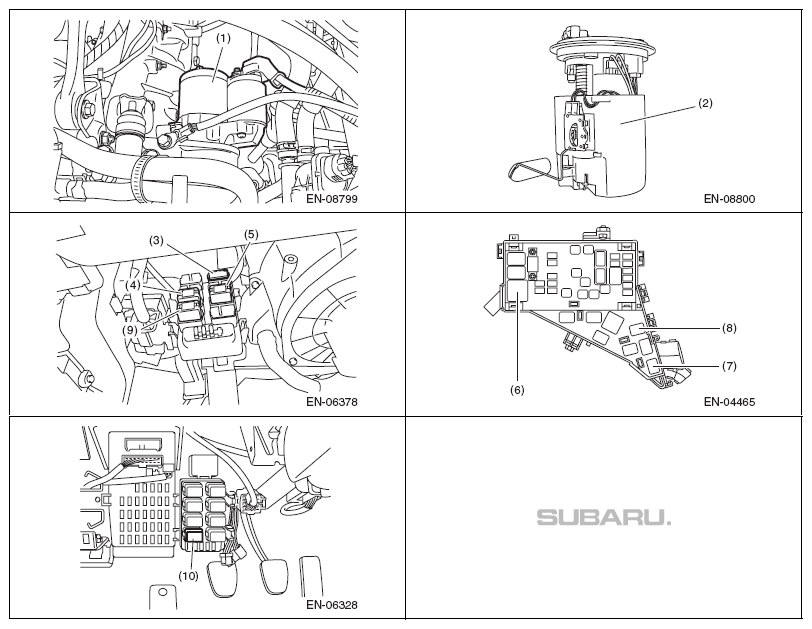

Fig 3: Solenoid Valve, Actuator, Emission Control And Ignition System Parts Components Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

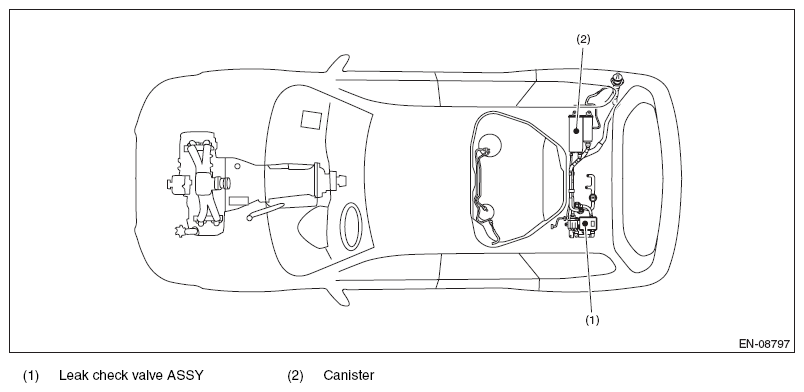

Fig 4: Solenoid Valve, Actuator, Emission Control And Ignition System Parts Components Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

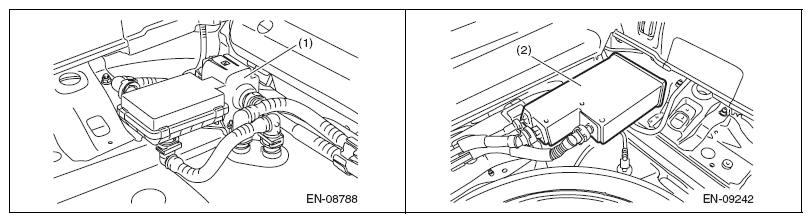

Fig 5: Solenoid Valve, Actuator, Emission Control And Ignition System Parts Components Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

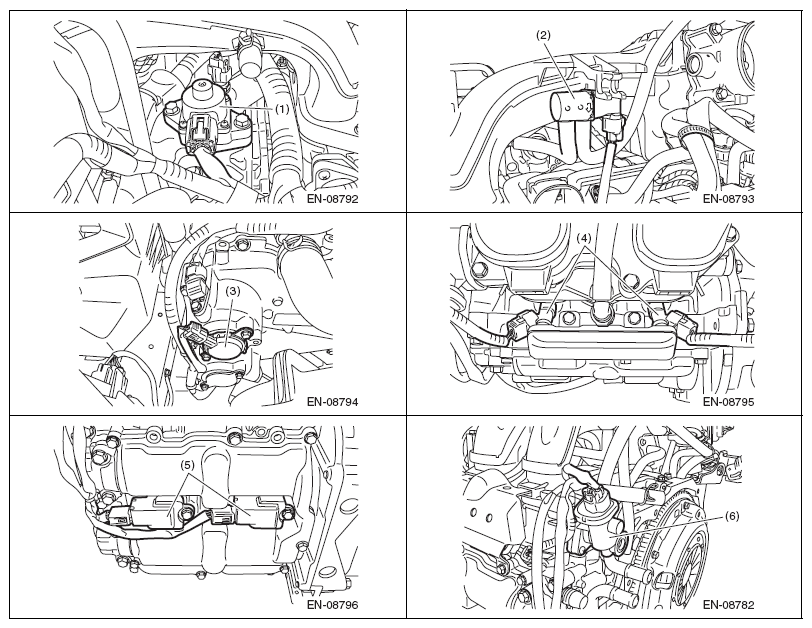

Fig 6: Solenoid Valve, Actuator, Emission Control And Ignition System Parts Components Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
