Radiator Sub Fan and Fan Motor: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip which holds the sub fan motor assembly connector onto the radiator sub fan shroud.
  2. Remove the sub fan motor assembly from the radiator sub fan shroud.

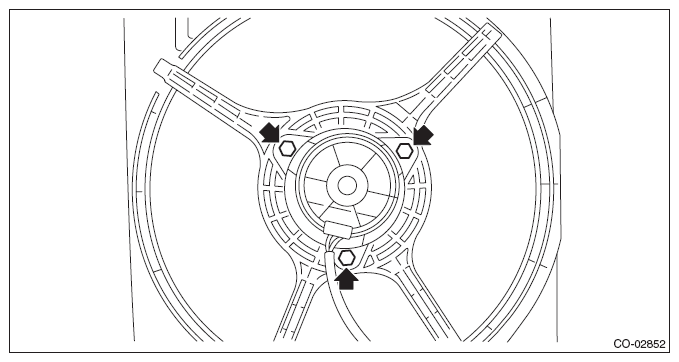

    Fig 1: Locating Radiator Sub Fan Shroud Mounting Bolts
    G08563325Courtesy of SUBARU OF AMERICA, INC.
