Radiator Main Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the reservoir tank. < Refer to REMOVAL , Reservoir Tank. >
Disconnect the connector from the main fan motor assembly.

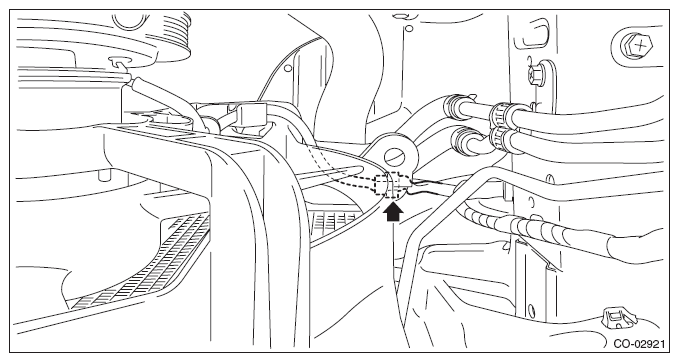

Fig 2: Locating Main Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the ATF radiator hose from the clip of the radiator main fan shroud. (AT model)
Remove the bolts which hold the radiator main fan shroud onto the radiator.

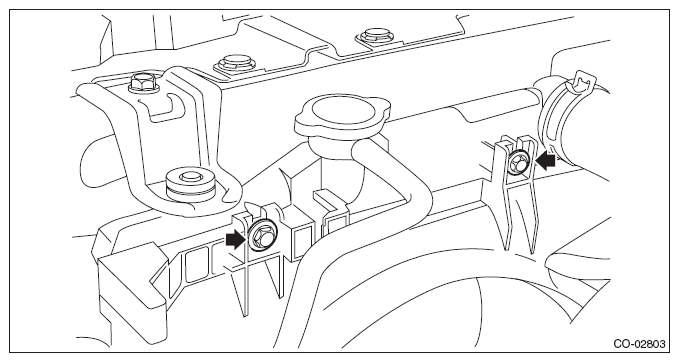

Fig 3: Locating Radiator Main Fan Shroud Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan and fan motor from vehicle.
