Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Radiator Fan System < Refer to SYSTEM WIRING DIAGRAM. >

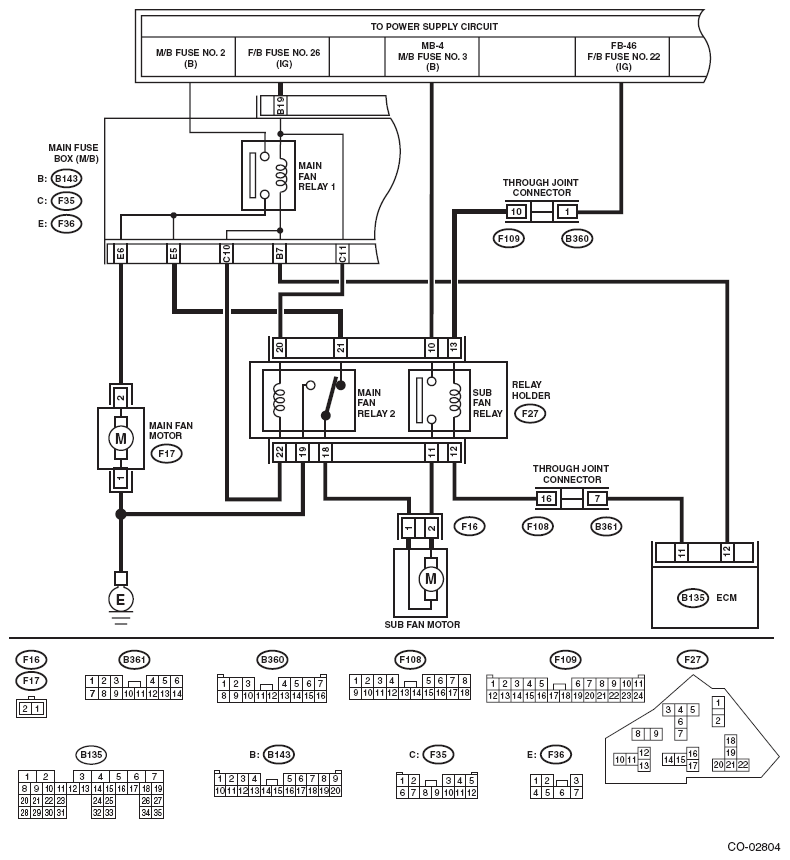

Fig 1: Radiator Fan System - Wiring Diagram
G08563287Courtesy of SUBARU OF AMERICA, INC.
