Component Description

WARNING: This page is about a different variant/trim than selected.

ELCM consists of the pressure sensor, the reference orifice (diameter of 0.02 inch), the vacuum pump which introduces the negative pressure into evaporative emission system, and the switching valve which switches the passage to introduce the negative pressure.

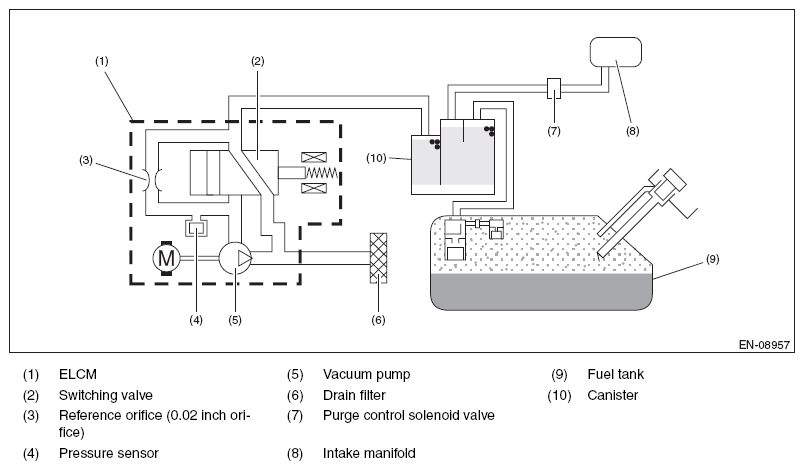

Fig 1: Evaporative Emission System Pressure Sensor/Switch - System Diagram
G08570580Courtesy of SUBARU OF AMERICA, INC.
