Oil Pan

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before installing the oil pan, wipe and clean the mating surface of oil pan and oil pan upper.
Use a new oil pan seal ring.

Apply liquid gasket to the mating surfaces of oil pan upper, and install the oil pan.
NOTE:
Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

5±1 mm (0.1969±0.0394 in)

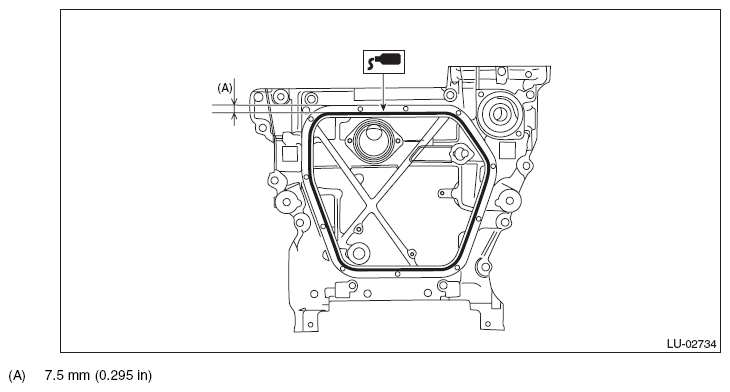

Fig 1: Identifying Liquid Gasket Applying Area On Mating Surfaces Of Oil Pan Upper
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts to install the oil pan to the oil pan upper in the numerical order.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 2: Identifying Oil Pan To Oil Pan Upper Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. < Refer to INSTALLATION , Front Exhaust Pipe. >
Install the under cover. < Refer to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Connect the battery ground terminal.

Fig 3: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Refill the engine oil. < Refer to REPLACEMENT , Engine Oil. >
