Section 11 (Engine Mechanical (H4DO)): V-belt: Removal: V-Belt

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belt covers.
    Fig 1: Locating V-Belt Cover Bolt
    G07665154Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct (rear). < Refer to REMOVAL , Air Intake Duct. >
  3. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to loosen and remove the V-belt.

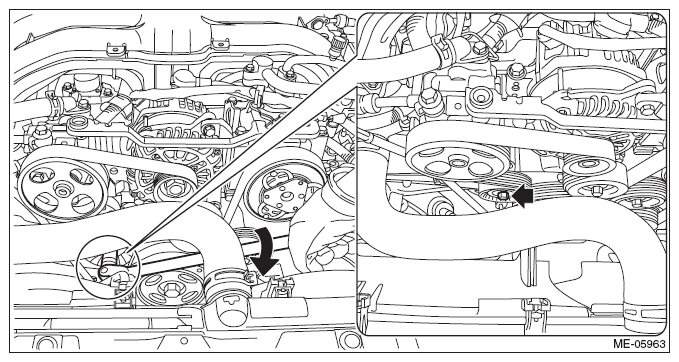

    Fig 2: Removing V-Belt Using Tool
    G08562906Courtesy of SUBARU OF AMERICA, INC.
