V-Belt TENSIONER Assembly And Idler Pulley

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. < Refer to V-BELT , REMOVAL, V-belt. >
  2. Remove the cap from V-belt tensioner assembly.
    Fig 1: Locating V-Belt Tensioner Assembly Cap
    G08562907Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt securing the V-belt tensioner assembly to the power steering pump bracket, and remove the V-belt tensioner assembly.
    Fig 2: Locating V-Belt Tensioner Assembly Bolt
    G08562908Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which secure the idler pulley to the chain cover, and remove the idler pulley.

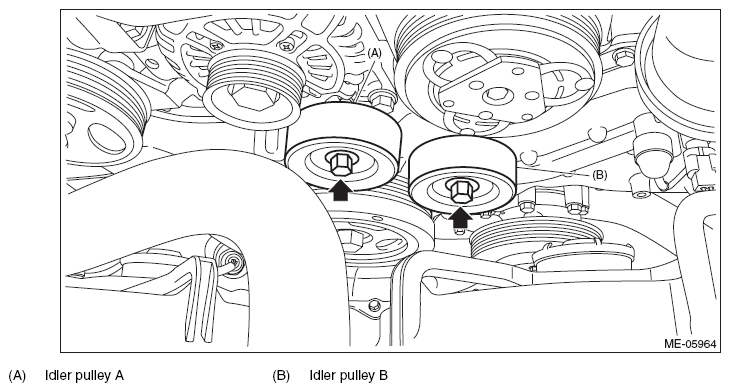

    Fig 3: Identifying Idler Pulley Mounting Bolts (A And B)
    G08562909Courtesy of SUBARU OF AMERICA, INC.
