Section 11 (Engine Mechanical (H4DO)): V-belt: Installation: V-Belt

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

CAUTION:

When reusing the V-belt, wipe off dust and water with cloth.
Do not use the V-belt if there is any oil, grease or coolant on the belt.
Be careful not to rub the V-belt end surface with bare hands; exposed core may cause injury.
Wipe off any dust, oil and water on the groove of each pulley with cloth.

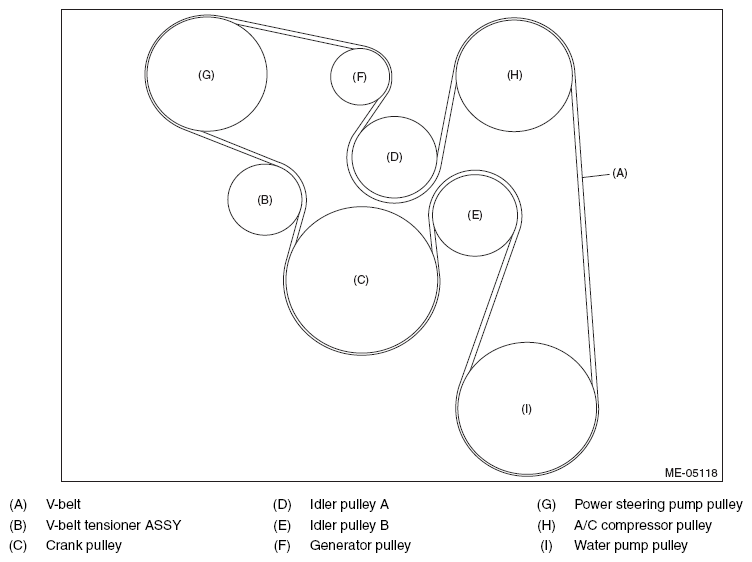

Fig 1: V-Belt Routing Diagram
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Fig 2: Locating V-Belt Cover Bolt

Courtesy of SUBARU OF AMERICA, INC.
