Rocker Cover LH

WARNING: This page is about a different variant/trim than selected.

Align the timing mark (A) of crank pulley to the timing gauge (B) of chain cover as shown in the figure, and turn the crankshaft by 180° clockwise from that position.
NOTE:
- This procedure is required only when working on the vehicle.
- This procedure is required to prevent the rocker cover LH and the cam lobe of camshaft LH contacting with each other when installing the rocker cover LH.
Fig 1: Aligning Timing Mark Of Crank Pulley To Timing Gauge Of Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the #2 spark plug pipe gasket and #4 spark plug pipe gasket to the #2 spark plug pipe and #4 spark plug pipe.
NOTE:
- Use a new #2 spark plug pipe gasket and #4 spark plug pipe gasket.
- Apply a light coat of engine oil to the #2 spark plug pipe gasket and #4 spark plug pipe gasket, and insert them onto the spark plug pipe edge (A).

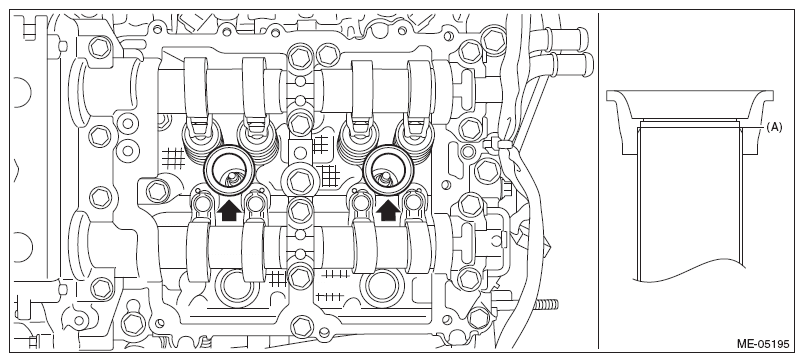

Fig 2: Locating Spark Plug Pipe Gaskets
Courtesy of SUBARU OF AMERICA, INC.
Install the rocker cover gasket LH to the rocker cover LH.
NOTE: Use a new rocker cover gasket LH.
Apply liquid gasket to the mating surface of rocker cover LH as shown in the figure.
NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the engine.
- Be careful not to allow liquid gasket to be squeezed out from rocker cover LH.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

3.5±0.5 mm (0.1378±0.0197 in)

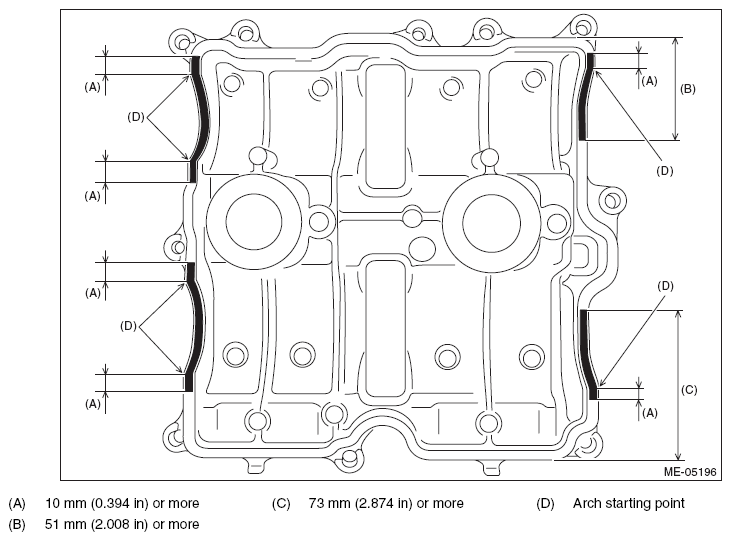

Fig 3: Identifying Liquid Gasket Applying Areas On Mating Surface Of Rocker Cover LH
Courtesy of SUBARU OF AMERICA, INC.
Set the rocker cover LH, and tighten the bolts in numerical order as shown in the figure.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

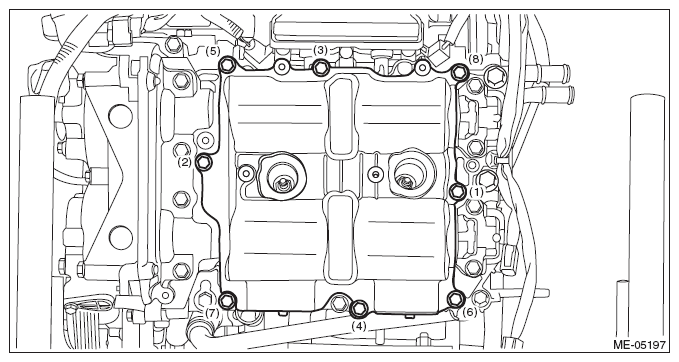

Fig 4: Identifying Rocker Cover LH Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold protector LH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

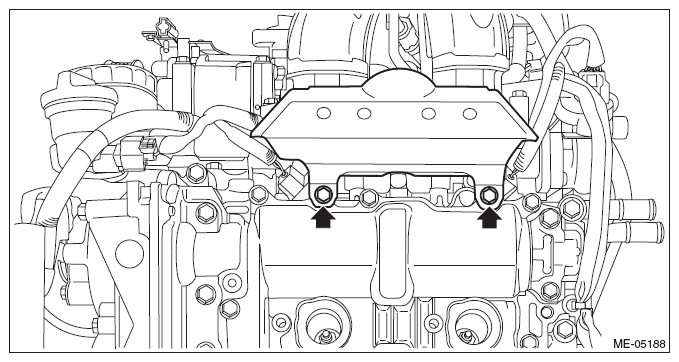

Fig 5: Locating Intake Manifold Protector LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the #2 ignition coil and the #4 ignition coil. < Refer to INSTALLATION , Ignition Coil. >
When working on the vehicle
1. Install the air intake duct. < Refer to INSTALLATION , Air Intake Duct. >
2. Install the V-belt cover.
  Tightening torque:

  13 N.m (1.3 kgf-m, 9.6 ft-lb)

  Fig 6: Locating V-Belt Cover Bolt
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the battery. < Refer to INSTALLATION , Battery. >
