Engine Mounting

WARNING: This page is about a different variant/trim than selected.

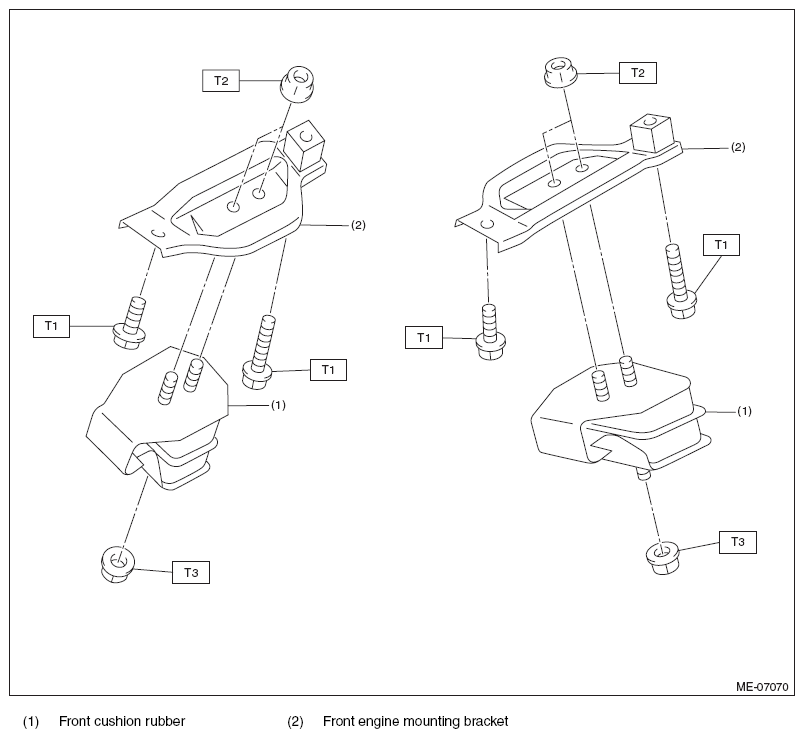

Fig 1: Front Cushion Rubber, Front Engine Mounting Bracket And Bolts With Torque Specifications
G08562805Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 42 (4.3, 31.0)

T3: 45 (4.6, 33.2)
