Cylinder Head And Camshaft

WARNING: This page is about a different variant/trim than selected.

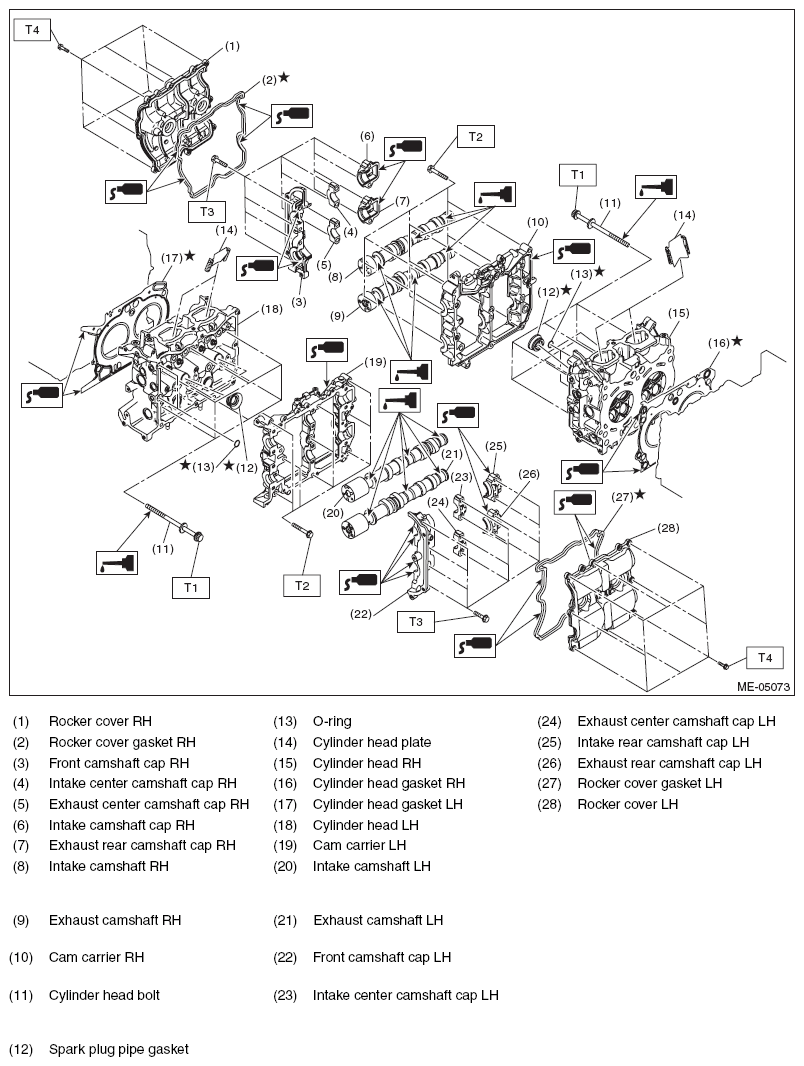

Fig 1: Exploded View Of Cylinder Head And Camshaft With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: < Refer to INSTALLATION , Cylinder Head. >

T2: < Refer to INSTALLATION , Cam Carrier. >

T3: < Refer to ASSEMBLY , Cam Carrier. >

T4: < Refer to INSTALLATION , Rocker Cover. >
