Crank Sprocket: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the crank sprocket.
    NOTE: The direction of installation is not specified for the crank sprocket.

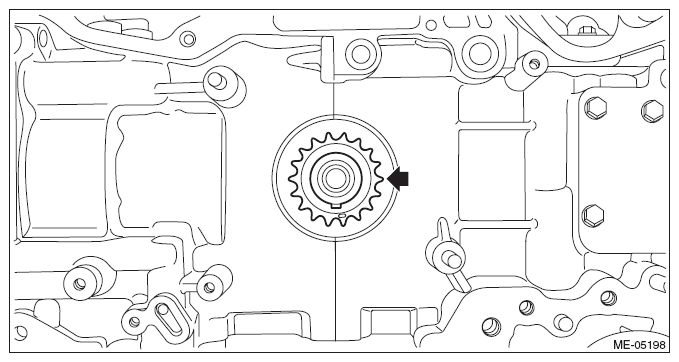

    Fig 1: Locating Crank Sprocket
    G08563008Courtesy of SUBARU OF AMERICA, INC.
  2. Install the timing chain. < Refer to INSTALLATION , Timing Chain Assembly. >
  3. Install the chain cover. < Refer to INSTALLATION , Chain Cover. >
