Chain Cover: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the sensor cover to the chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

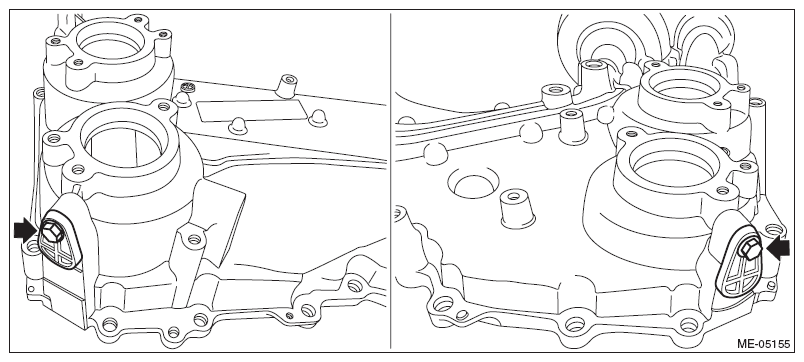

    Fig 1: Locating Sensor Cover Bolts
    G08562962Courtesy of SUBARU OF AMERICA, INC.
  2. Install the actuator cover to chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

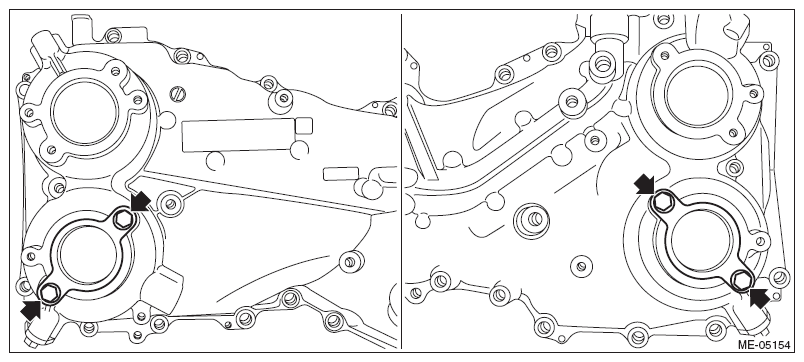

    Fig 2: Locating Actuator Cover Bolts
    G08562961Courtesy of SUBARU OF AMERICA, INC.
  3. Install the camshaft position sensor. < Refer to INSTALLATION , Camshaft Position Sensor. >
  4. Install the oil control solenoid. < Refer to INSTALLATION , Oil Control Solenoid. >
  5. Install the engine oil temperature sensor. < Refer to INSTALLATION , Engine Oil Temperature Sensor. >
  6. Install the oil pressure switch. < Refer to INSTALLATION , Oil Pressure Switch. >
  7. Install the engine oil filter and the oil pump union. < Refer to INSTALLATION , Engine Oil Filter. >
  8. Install the oil filler cap.

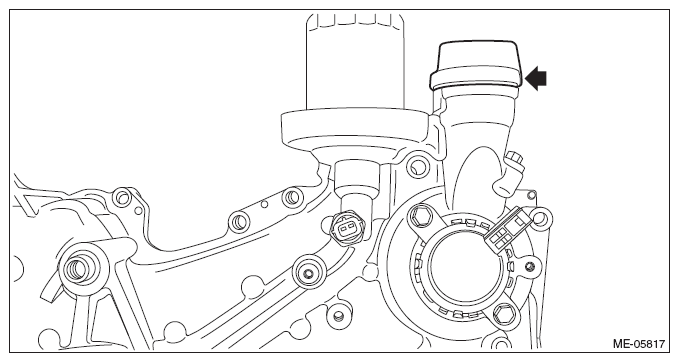

    Fig 3: Locating Oil Filler Cap
    G08316938Courtesy of SUBARU OF AMERICA, INC.
