Combination Meter System: Inspection: Self-Diagnosis

The self-diagnosis (checking of each meter, warning light, indicator light, illumination, LCD) of combination meter can be performed in the following procedure.

CAUTION: Perform the steps described in 2) through 4) within 10 seconds.

Within 3 seconds after turning the ignition switch to ON, set the lighting switch to tail light or headlight position.
Press the odo/trip meter knob three times.
Turn the lighting switch to OFF, and press the odo/trip meter knob three times.
Set the lighting switch to tail light or headlight position again, and press the odo/trip meter knob three times.
NOTE:
- When pressing the odo/trip meter knob four times, the display changes to DTC display mode.< Refer to DTC DISPLAY MODE , INSPECTION, Combination Meter System. >
- Warning light, indicator light, and LCD display checks are performed when self-diagnosis is performed. After this, every time the odo/trip meter knob is pressed, the buzzer will sound for 0.5 seconds, and operation checks for meter operation, meter readings, and the LCD are performed in this order. Turn the ignition switch to OFF to cancel the self-diagnosis function.
- The self-diagnosis function is not canceled if the engine is started during diagnosis. However, the self-diagnosis function is canceled automatically for safety when you start to drive the vehicle.

Go to "Check meter indicator operation".

Check meter operation, warning light, indicator light, and LCD.

NOTE:

"dIAGS.1" (model with normal meter) or "_S_1" (model with luminescent meter) is displayed on the LCD for one second. After that, the meter indicator operation check mode is initiated.
Each of the meter indicator operation display and LCD display switches every 6 seconds.

Meter indicator

LCD display, illumination

Warning light, indicator light

MIN indication
↓
MAX indication

ILL1 (Min. brightness)
↓⁽⁴⁾
ILL6 (Max. brightness)

⁽¹⁾, ⁽²⁾, ⁽³⁾

MAX indication
↓
MIN indication

ILL6 (Max. brightness)
↓⁽⁴⁾
ILL1 (Min. brightness)

⁽¹⁾	Warning lights and indicator lights controlled by the meter drive circuit are illuminated.< Refer to SPECIFICATION , General Description. >

⁽²⁾	Warning lights and indicator lights controlled by other module are turned on/off according to the module control.< Refer to SPECIFICATION , General Description. >

⁽³⁾	Engine coolant temperature warning light illuminates in red. (model with normal meter)

⁽⁴⁾	Display for one second for each level

Press the odo/trip meter knob once.

Go to "Meter Indicator Needle Indication Check".

Check meter operation, warning light, indicator light, and LCD.

NOTE:

Meter indicator switches every 1.5 seconds for each indication.
ILL indication illuminates at the same brightness as when entering "Meter Indicator Needle Indication Check".
During operation, "dIAGS.2" (model with normal meter) or "_S_2" (model with luminescent meter) is displayed on the LCD.

MODEL WITH NORMAL METER

Speedometer (km/h)	Tachometer (rpm)	Fuel gauge	Fuel level warning light	Warning light, indicator light
0	0	Lowest point	Light ON	⁽⁾, ⁽⁾, ⁽⁾
0	0	E	Light ON
40	1000	1/2	Light OFF
100	4000	F	Light OFF
40	1000	1/2	Light OFF
0	0	E	Light ON

MODEL WITH LUMINESCENT METER

Speedometer
(km/h)

Tachometer
(rpm)

Engine coolant temperature gauge

ECO gauge

Warning light, indicator light

Lowest point

⁽¹⁾, ⁽²⁾

-Max

1000

Starting point of the red line

100

4000

+Max

1000

Starting point of the red line

-Max

⁽¹⁾	Warning lights and indicator lights controlled by the meter drive circuit turn off.< Refer to SPECIFICATION , General Description. >

⁽²⁾	Warning lights and indicator lights controlled by other module are turned on/off according to the module control.< Refer to SPECIFICATION , General Description. >

⁽³⁾	Engine coolant temperature indicator light illuminates in blue. (model with normal meter)

Press the odo/trip meter knob once.
Go to "Check LCD display".
Check the LCD.
NOTE:
- "dIAGS.3" (model with normal meter) or "_S_3" (model with luminescent meter) is displayed on the LCD for one second. After that, the LCD display check mode is initiated.
- LCD display switches every 1 second.
- Warning lights and indicator lights controlled by the meter drive circuit turn off.< Refer to SPECIFICATION , General Description. >
- Warning lights and indicator lights controlled by other module are turned on/off according to the module control.< Refer to SPECIFICATION , General Description. >
- The meter indication remains at the same level as "Meter Indicator Needle Indication Check".
- ILL indication illuminates at ILL6 level (max. brightness).
- After No. 13 is displayed in the illumination order, display is repeated from No. 1 again. (model with normal meter)
- After No. 14 is displayed in the illumination order, display is repeated from No. 1 again. (model with luminescent meter)
Model with normal meter

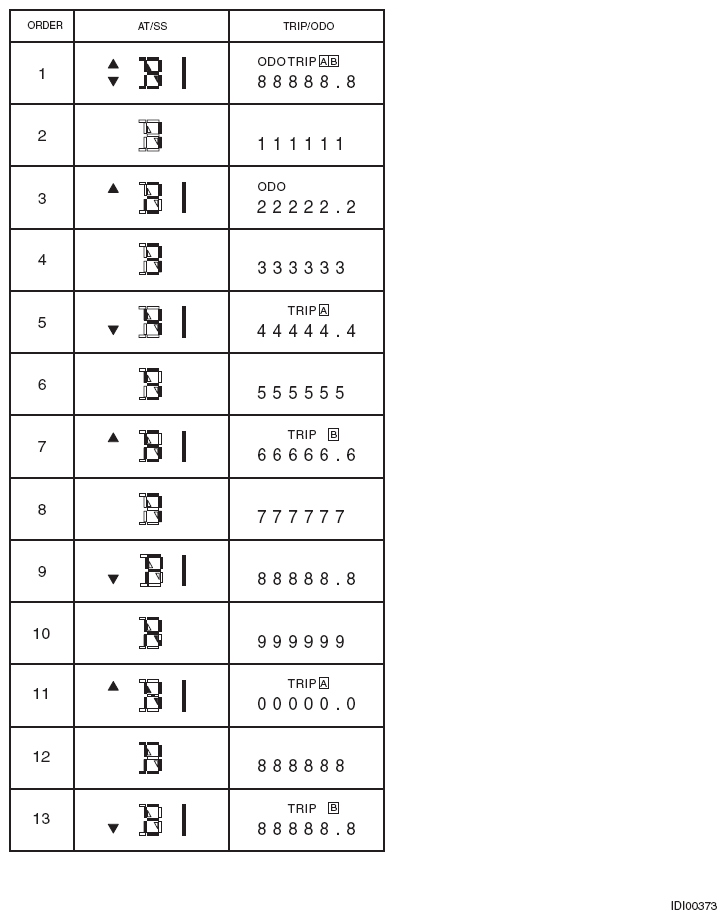

Fig 1: LCD Display (Normal Meter)
Courtesy of SUBARU OF AMERICA, INC.

Model with luminescent meter

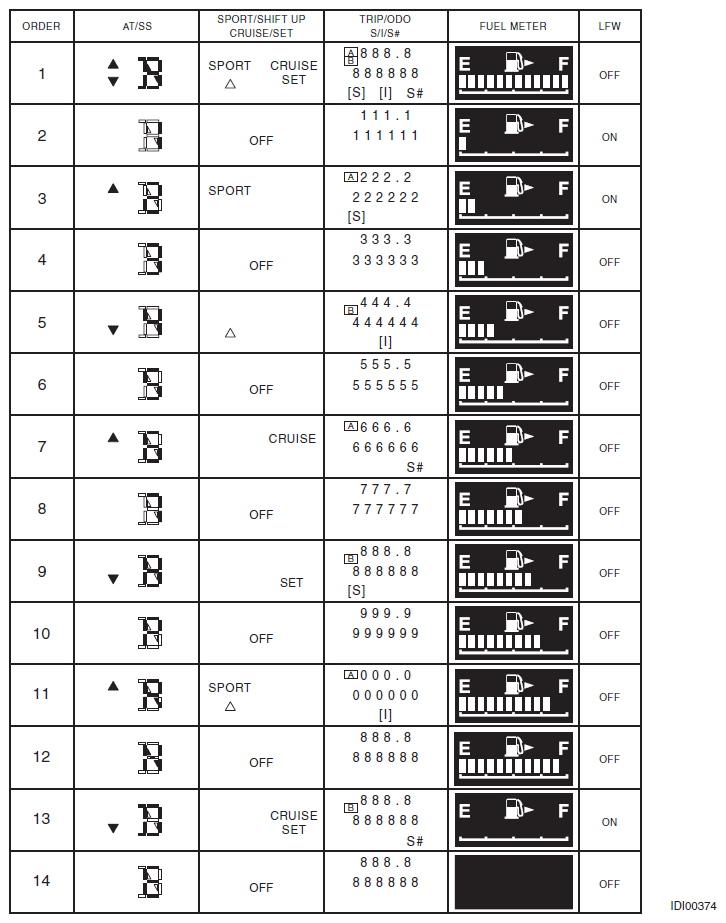

Fig 2: LCD Display (Luminescent Meter)
