Disassembly Of Combination Meter

CAUTION:

Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
Be careful not to apply excessive force to the trip knob.
Be sure not to touch the meter indicator needle.

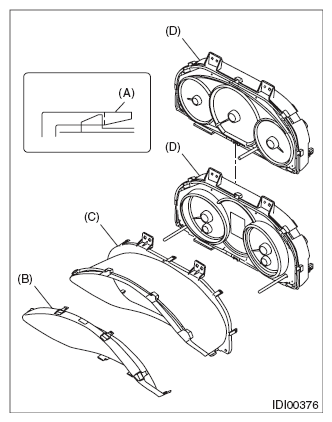

Disengage the tabs (A), and remove the meter glass assembly (B) and meter visor (C) from the meter case assembly (D).

Fig 1: Identifying Tabs, Meter Glass Assembly, Meter Visor And Meter Case Assembly

Courtesy of SUBARU OF AMERICA, INC.
