General Description

General Description

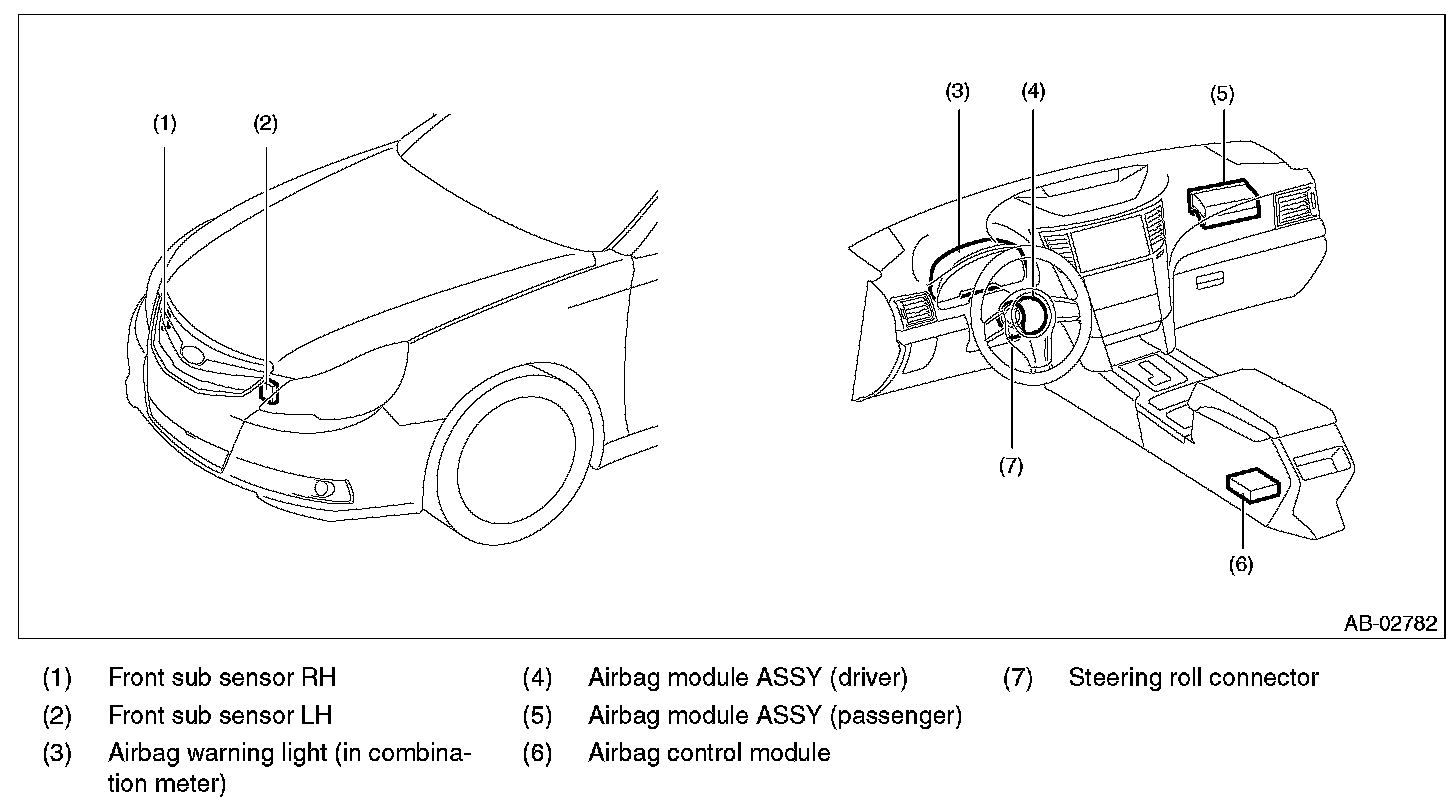

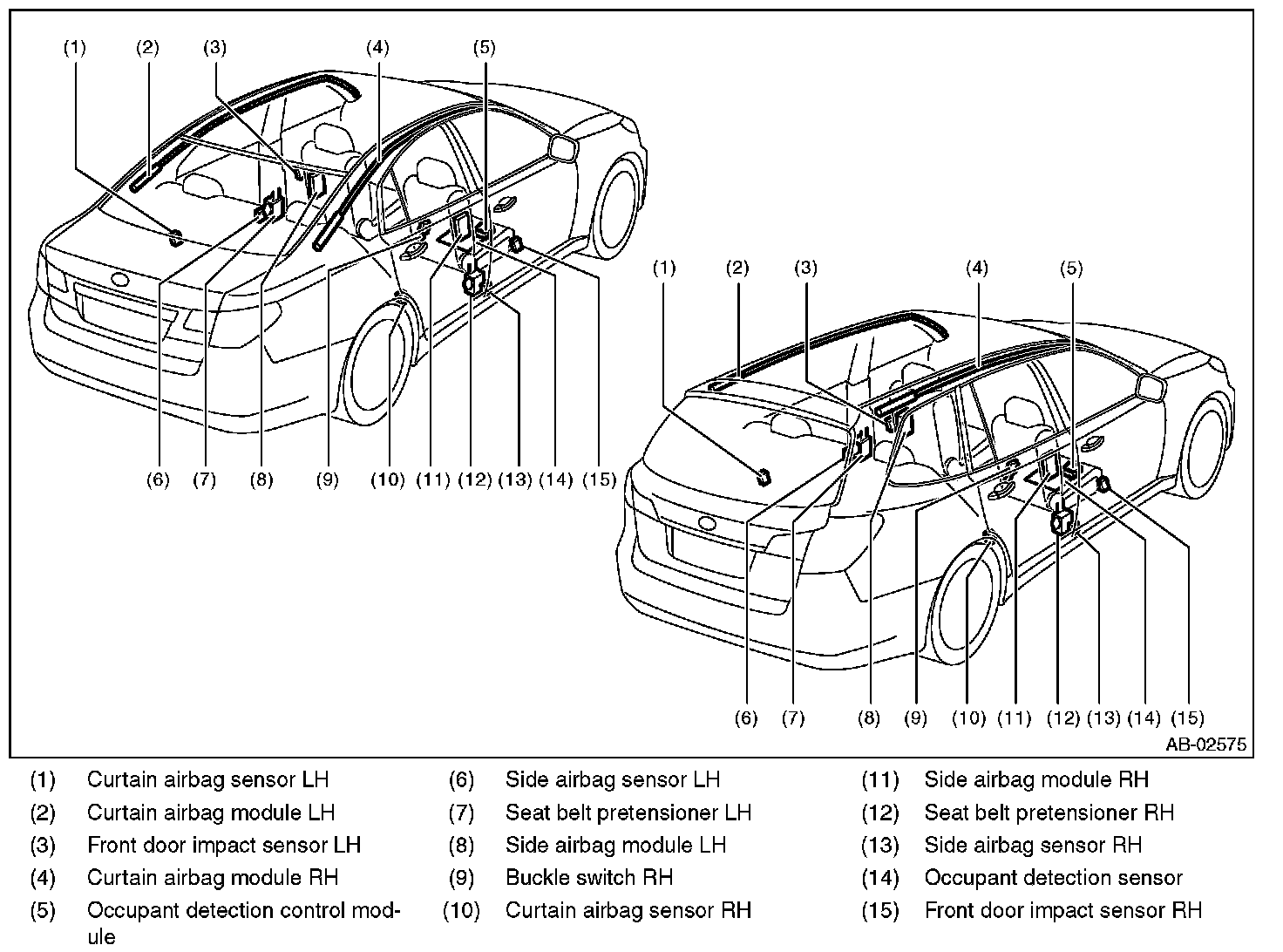

COMPONENT

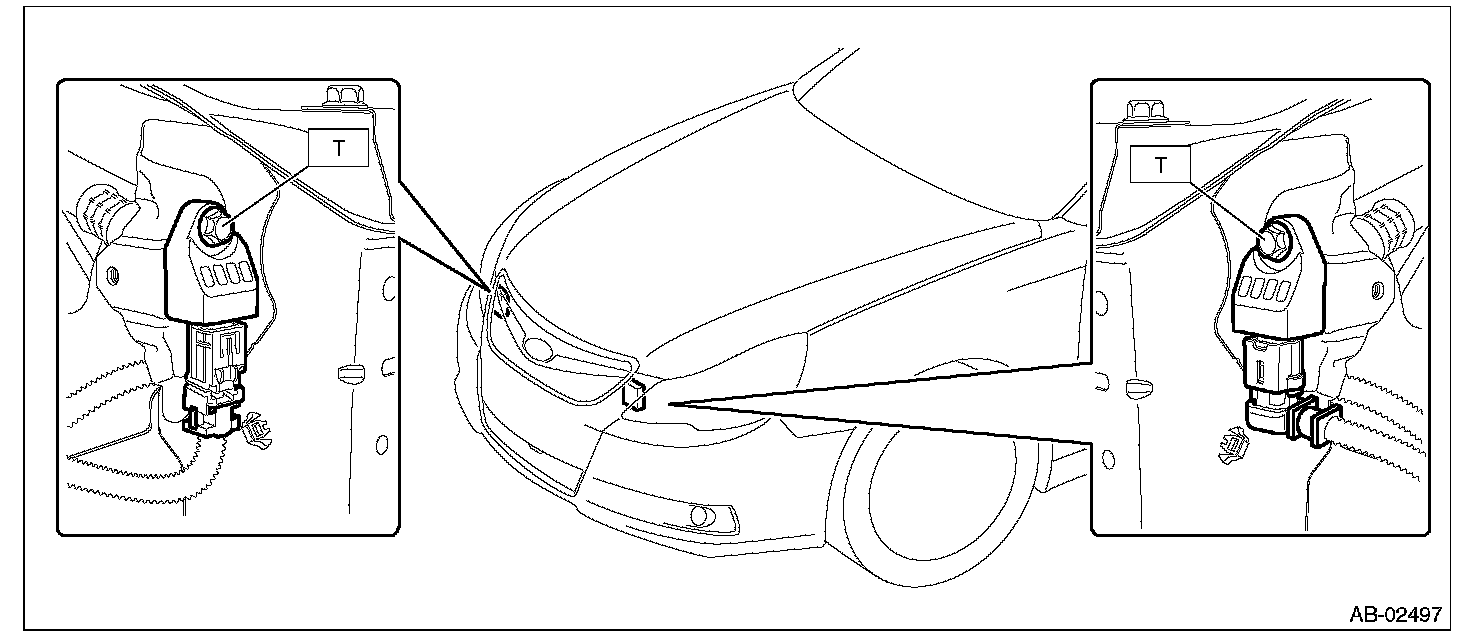

1. FRONT SUB SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

Tightening torque: 13 N.m (1.33 kgf-m, 9.6 ft-lb)

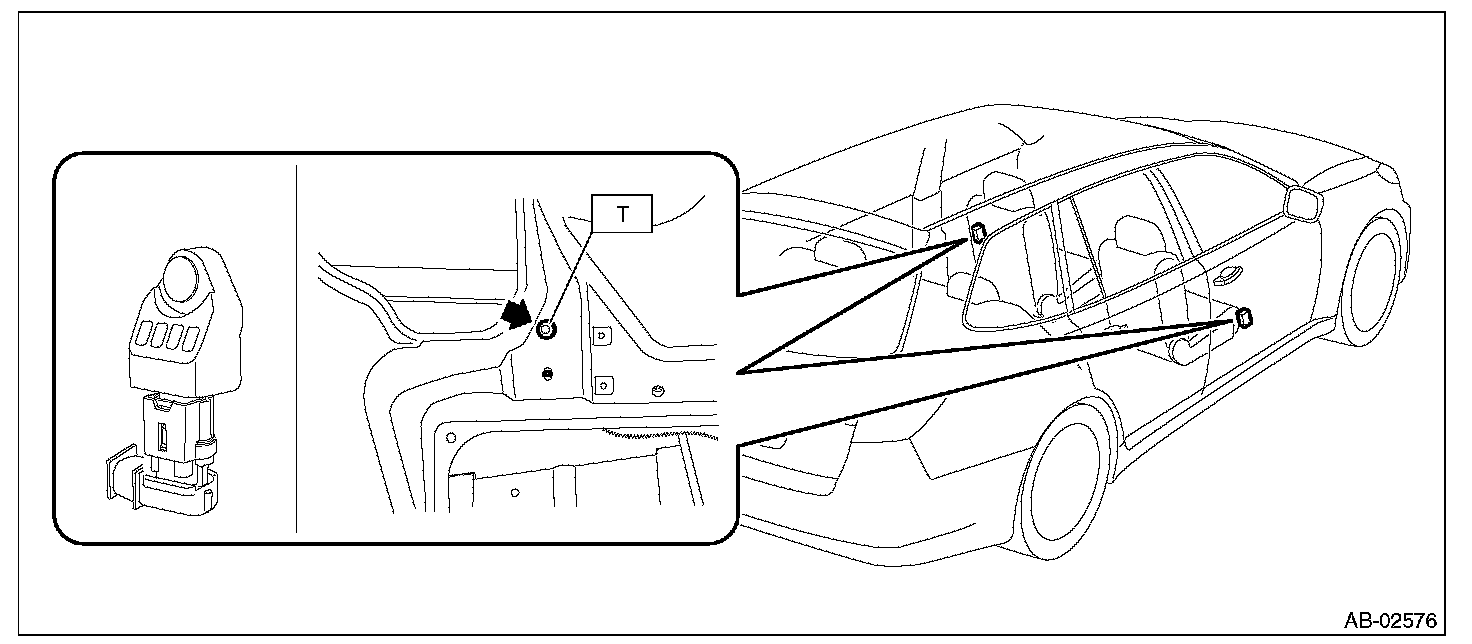

2. FRONT DOOR IMPACT SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

3. SIDE AIRBAG SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

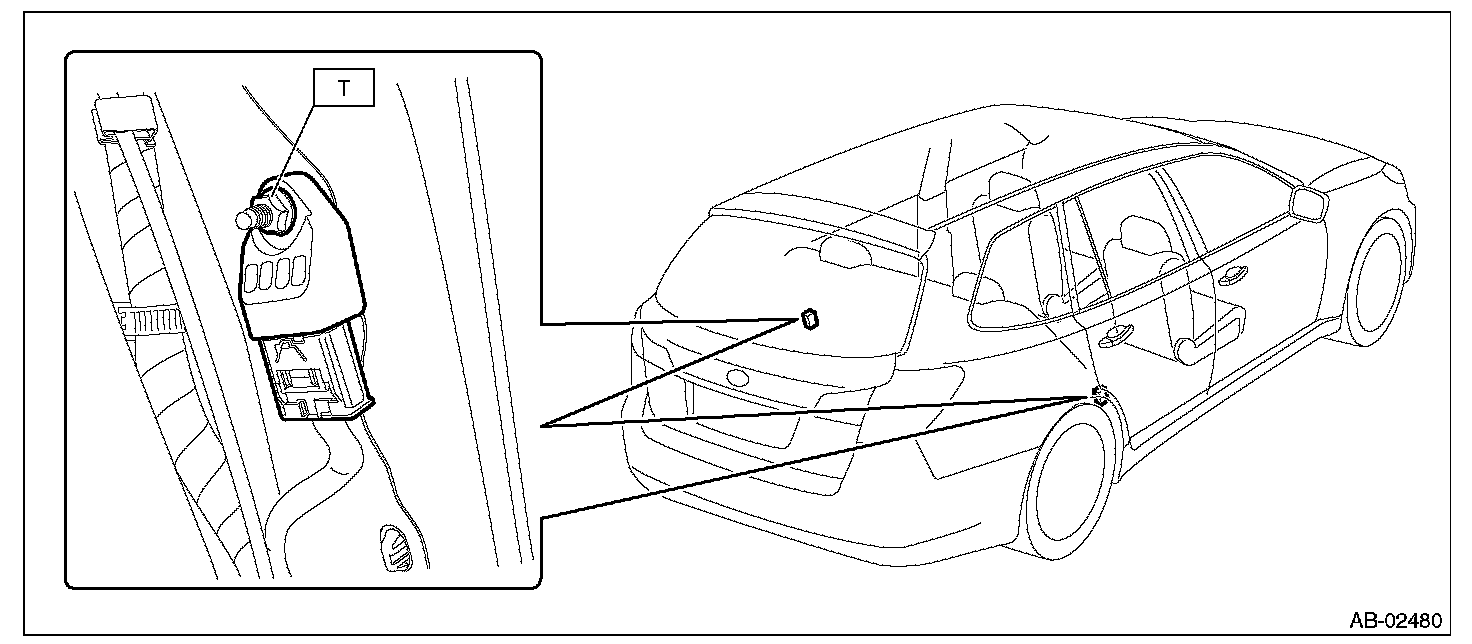

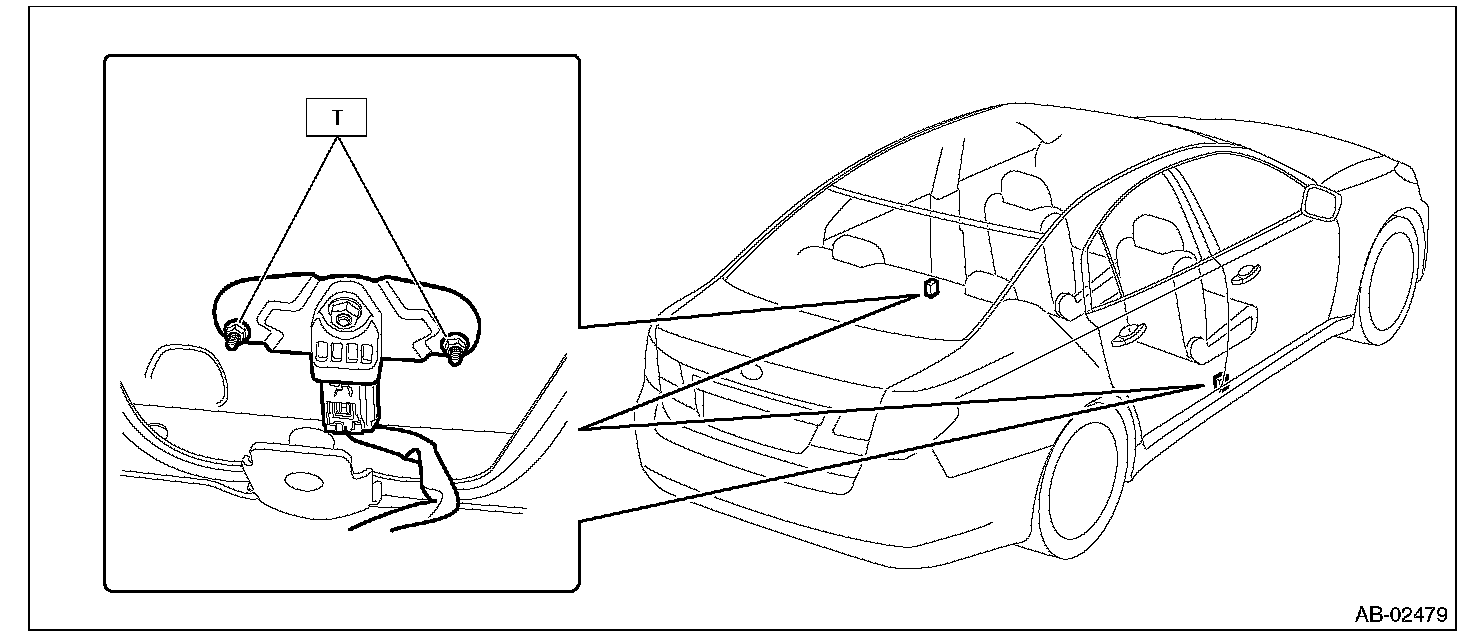

4. CURTAIN AIRBAG SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
