Impact Sensor
>>
Locations
>>
Electrical Component Location
Electrical Component Location
Electrical Component Location

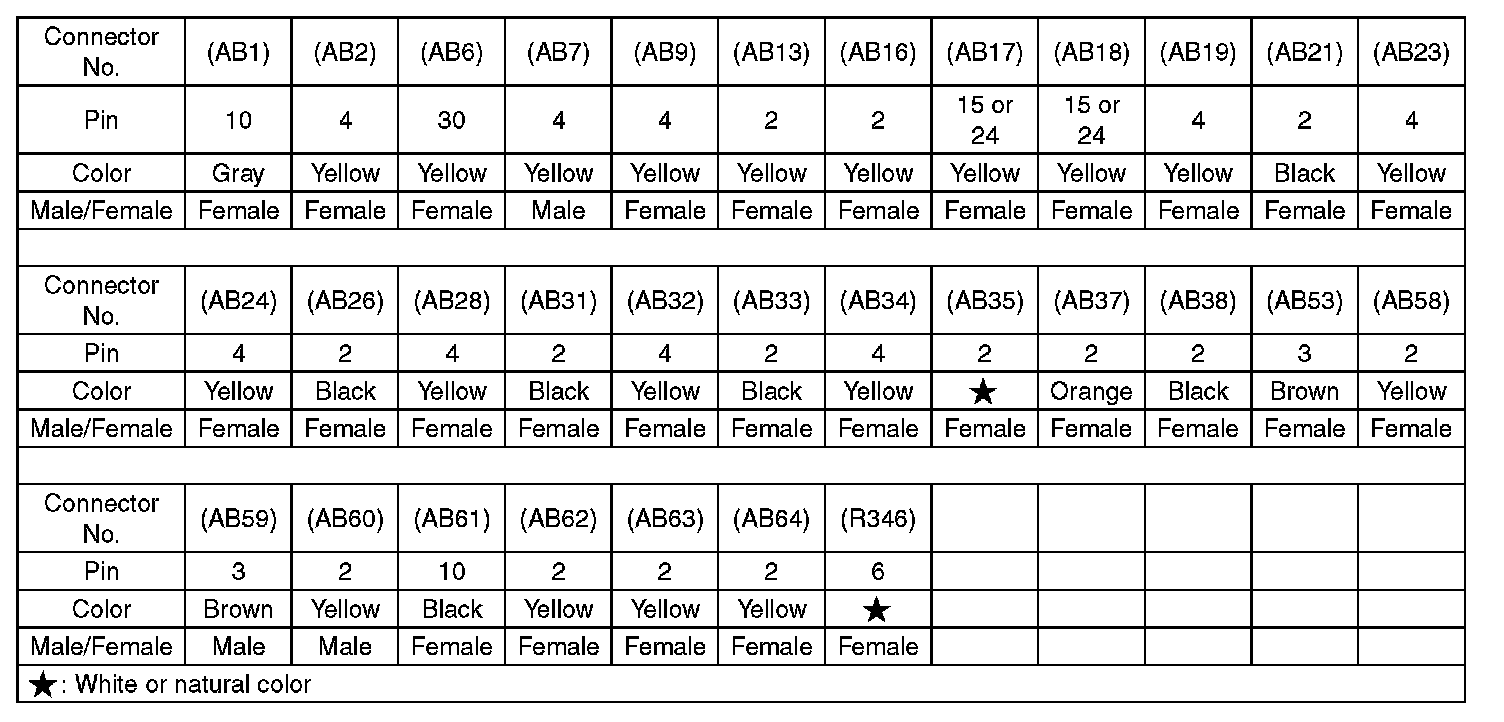

LOCATION

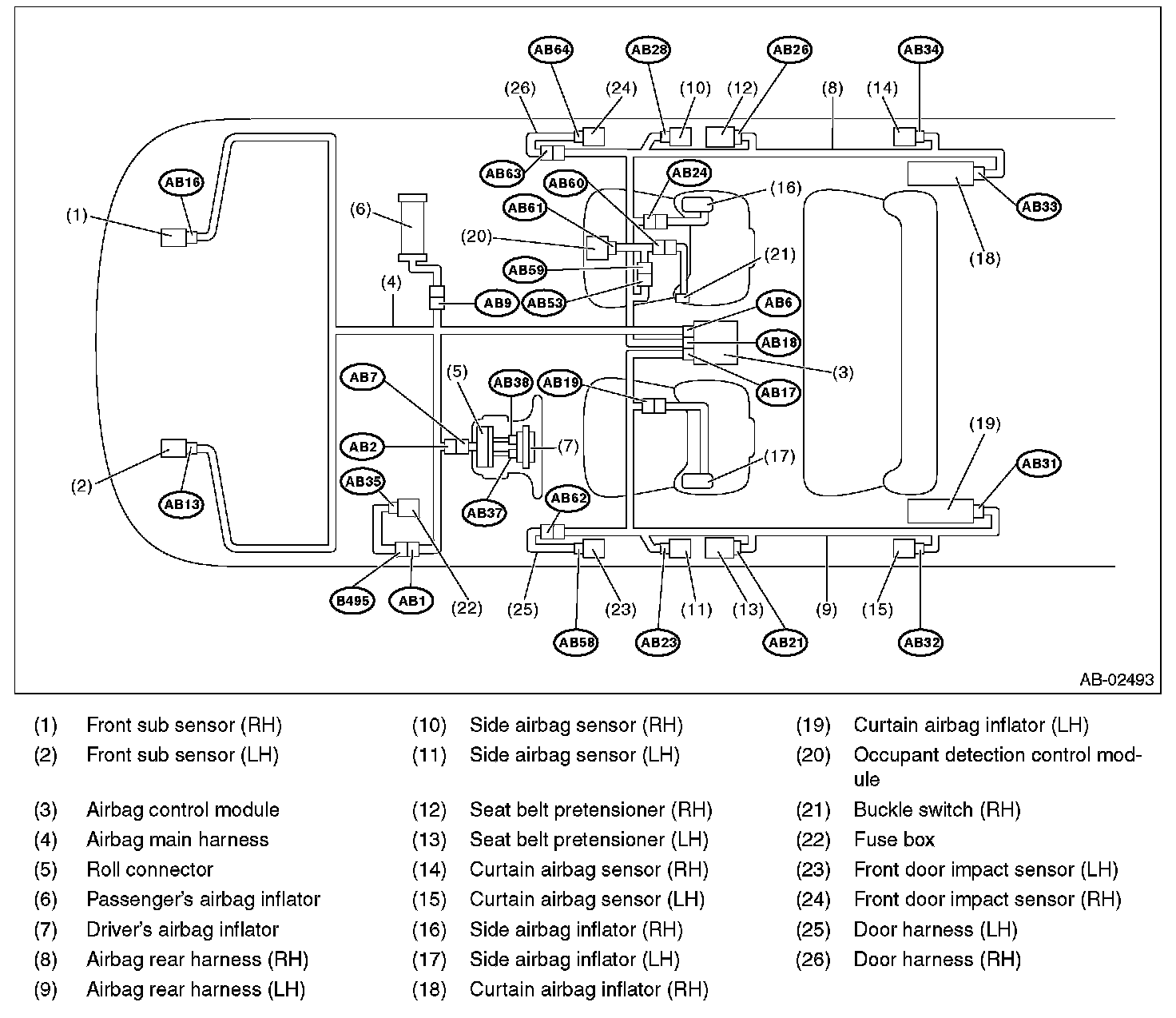

Type A

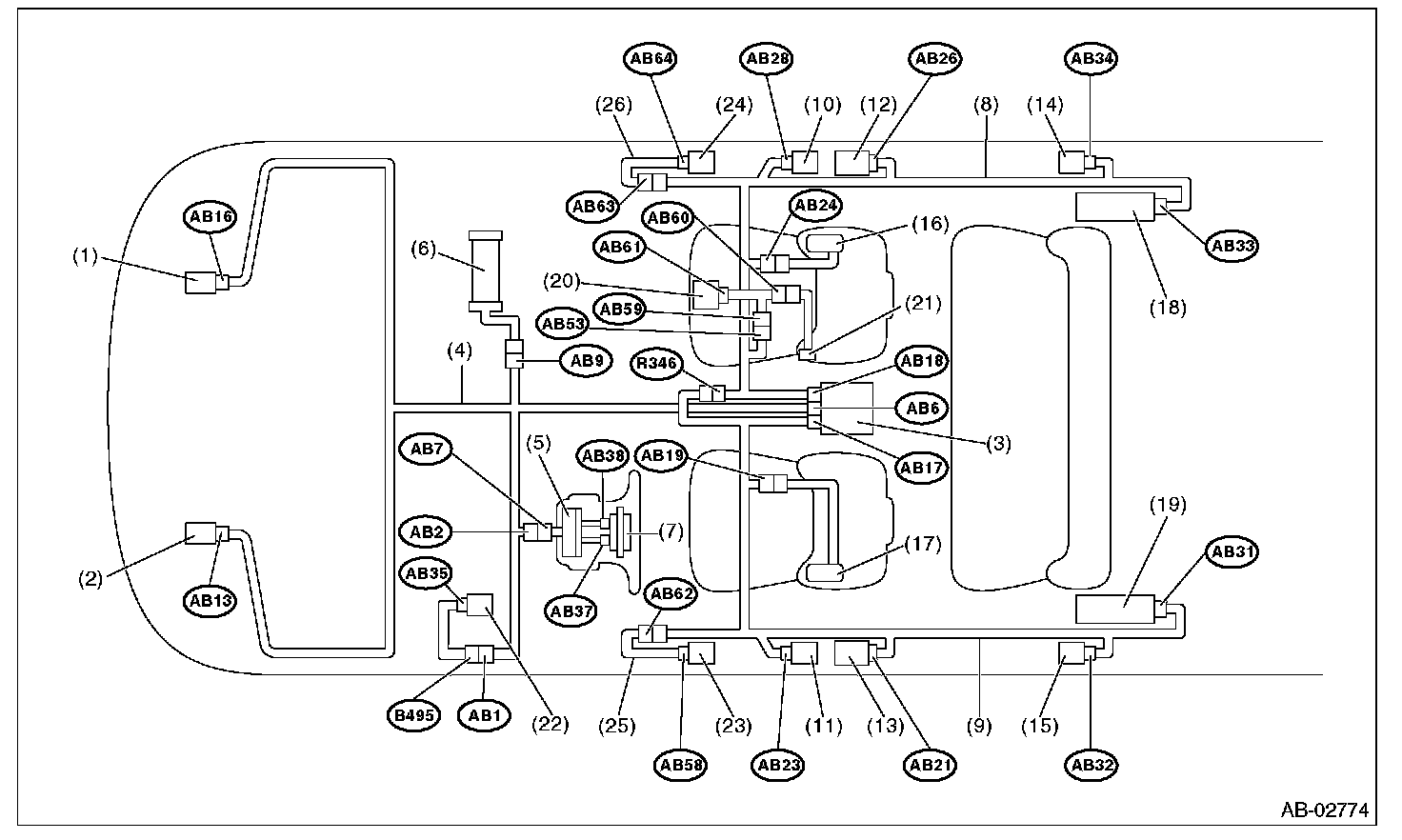

Type B (OUTBACK model)

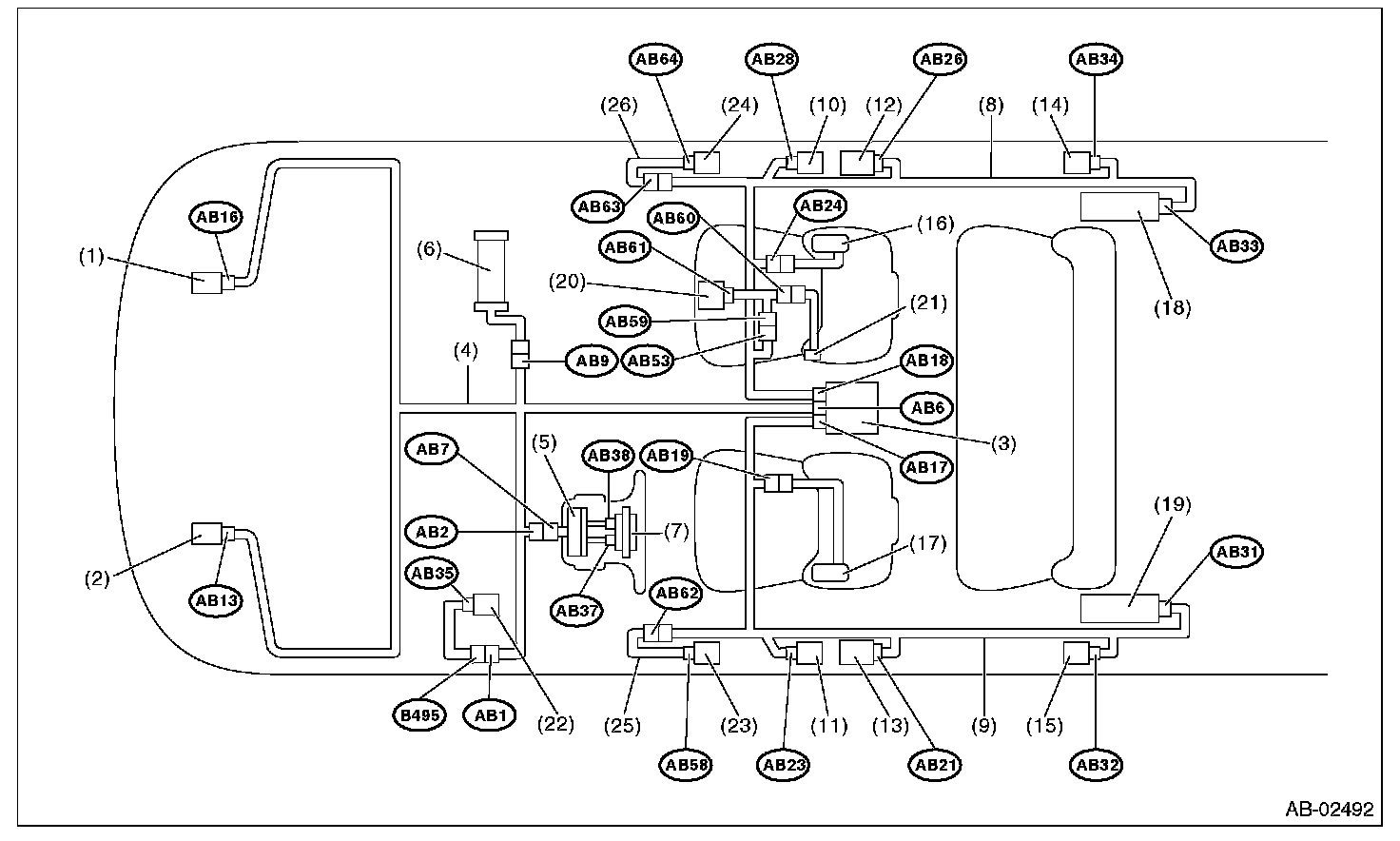

Type B (SEDAN model)
