Rear Wiper Motor

Rear Wiper Motor

INSPECTION

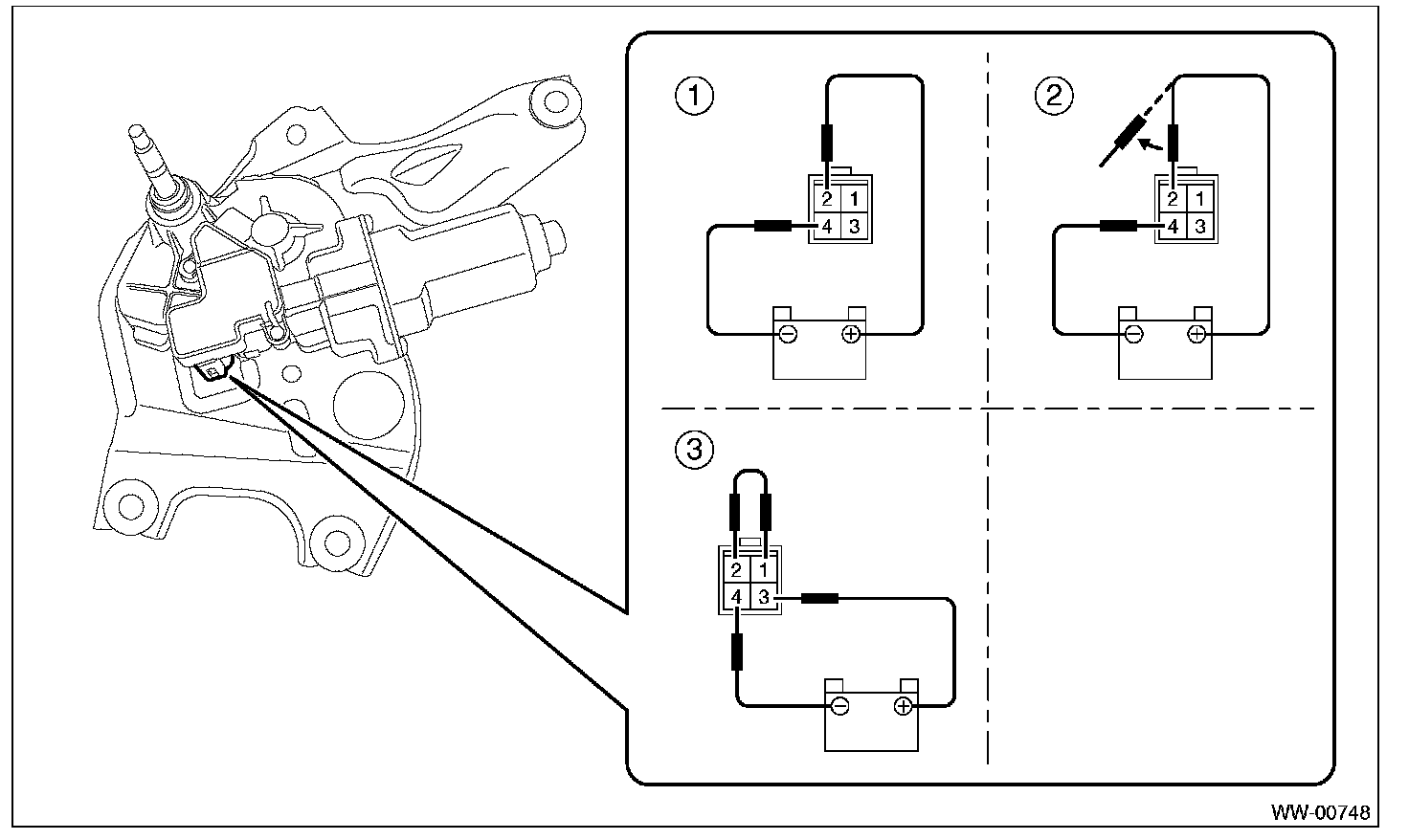

1. Connect the battery to the wiper motor connector and confirm that wiper motor operates.
2. Connect the battery to the terminals of connector, then run the motor and disconnect the terminal in mid motion.
3. Connect the battery and confirm that the motor stops at the automatic stop position after the motor operates at low speed again.
