Sunroof / Moonroof Switch: Testing and Inspection

INSPECTION

1. Remove the overhead console.

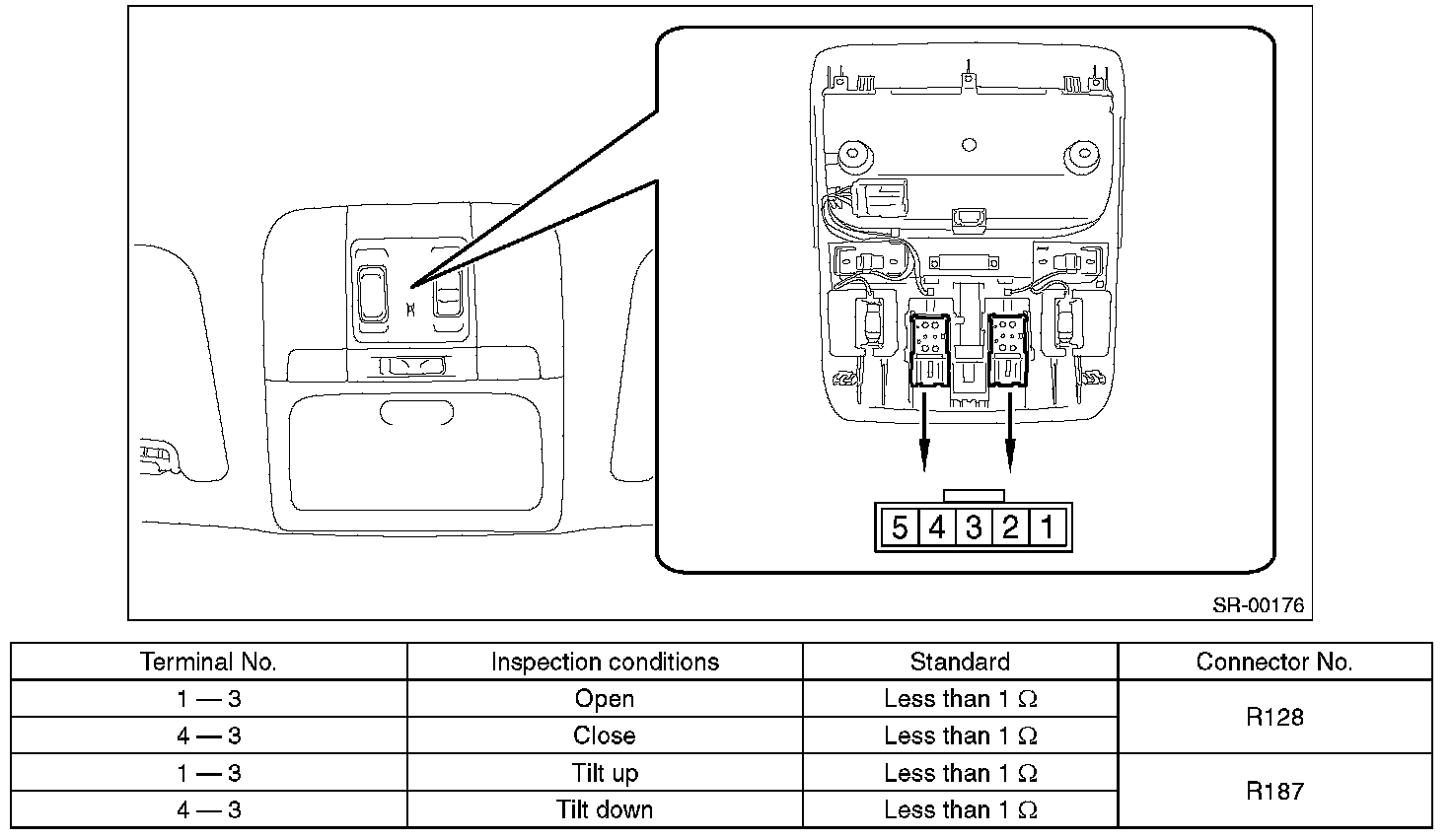

2. Check the resistance between sunroof switch terminals.

Preparation tool: Circuit tester







3. Replace the sunroof switch if the inspection result is not within the standard value.
