Horn Switch: Testing and Inspection
Horn SwitchINSPECTION
1. CHECK HORN SWITCH.
1. Remove the horn switch.
2. Check that the connection of the horn switch harness connector is correct.
3. Disconnect the horn switch harness connector and check the resistance between the harness connectors.
Preparation tool: Circuit tester
4. Replace the driver's airbag module if the inspection result is not within the standard value.

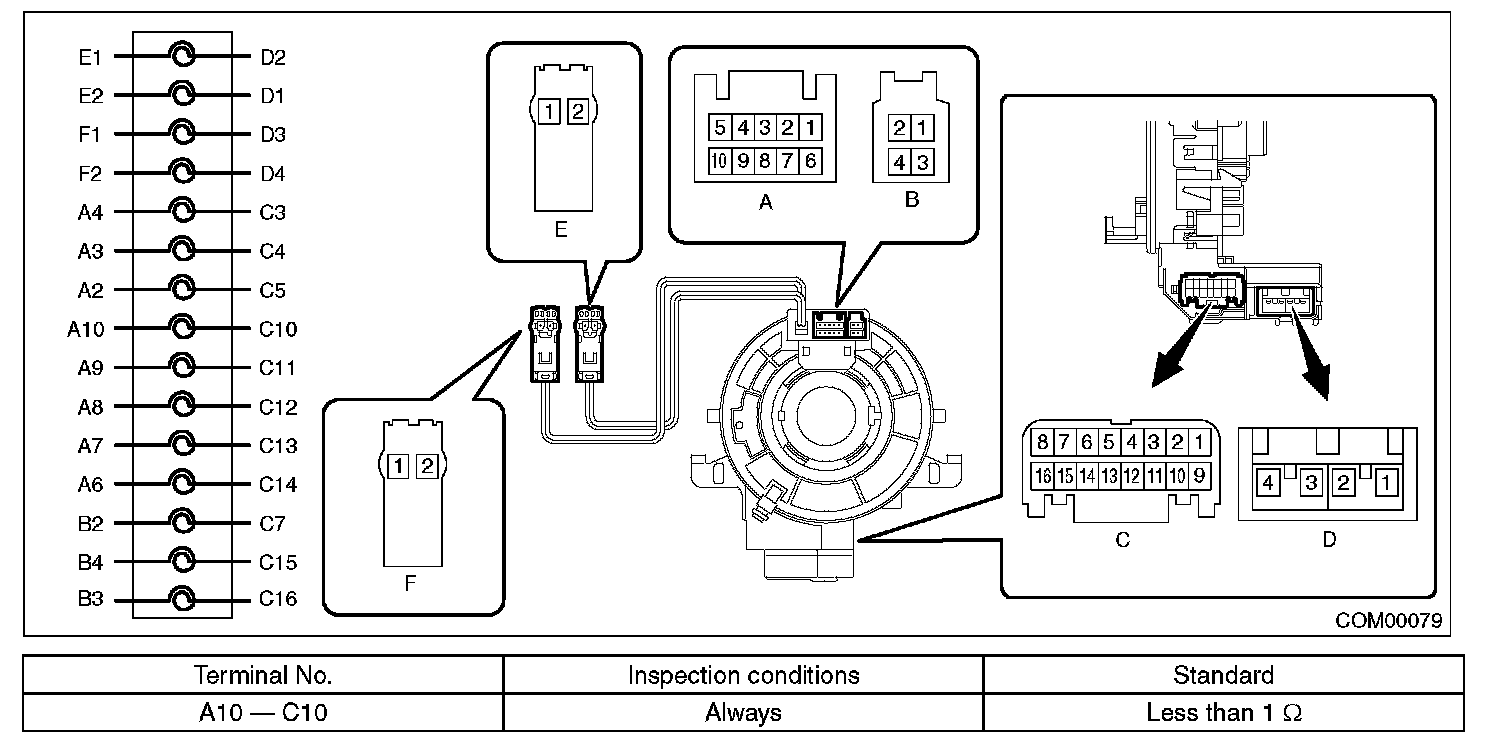

2. CHECK ROLL CONNECTOR.
1. Remove the roll connector.
2. Check the resistance between roll connector terminals.
Preparation tool: Circuit tester
3. Replace the roll connector if the inspection result is not within the standard value.
