Vehicle Identification Number: Sedan Model 002016 Or Older Outback Model 200012 Or Older

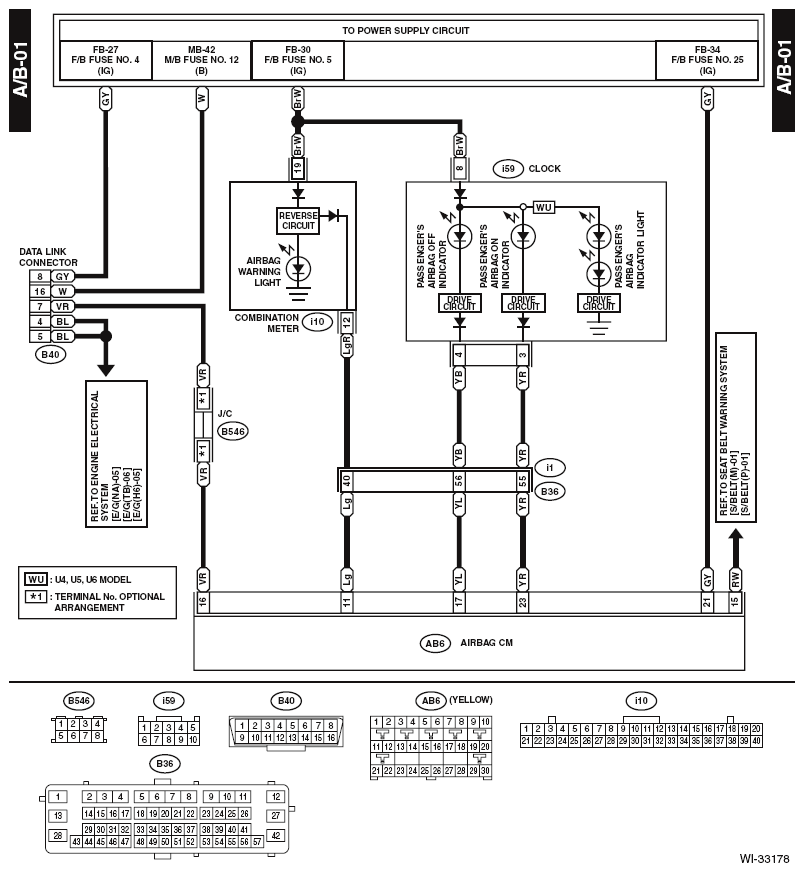

Fig 1: Airbag System Wiring Diagram - Vehicle Identification Number Sedan Model 002016 (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

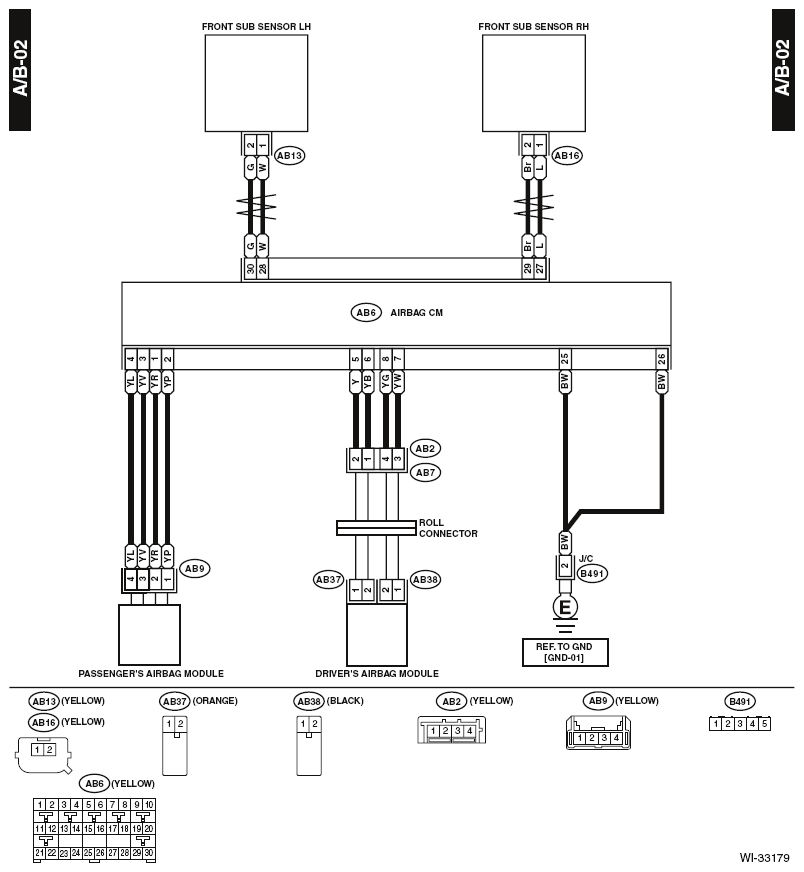

Fig 2: Airbag System Wiring Diagram - Vehicle Identification Number Sedan Model 002016 (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Airbag System Wiring Diagram - Vehicle Identification Number Sedan Model 002016 (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Airbag System Wiring Diagram - Vehicle Identification Number Sedan Model 002016 (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
