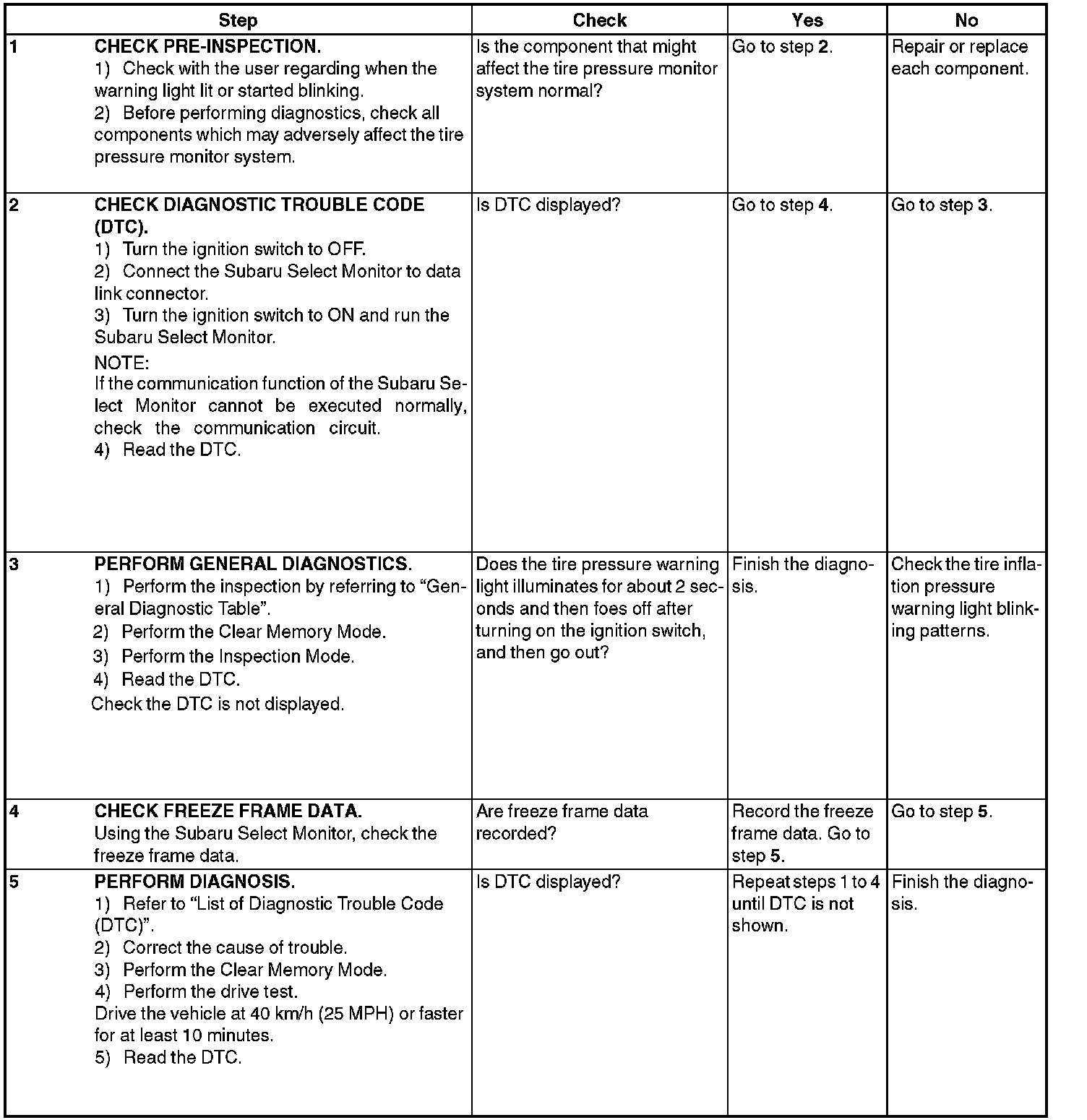

Diagnostic Strategies

PROCEDURE

CAUTION:
Remove foreign matter (dust, water, oil etc.) from the TPMS & keyless entry control module connector when removing and installing.

NOTE:
To check harness for open or short circuits, shake the suspected trouble spot or connector.
