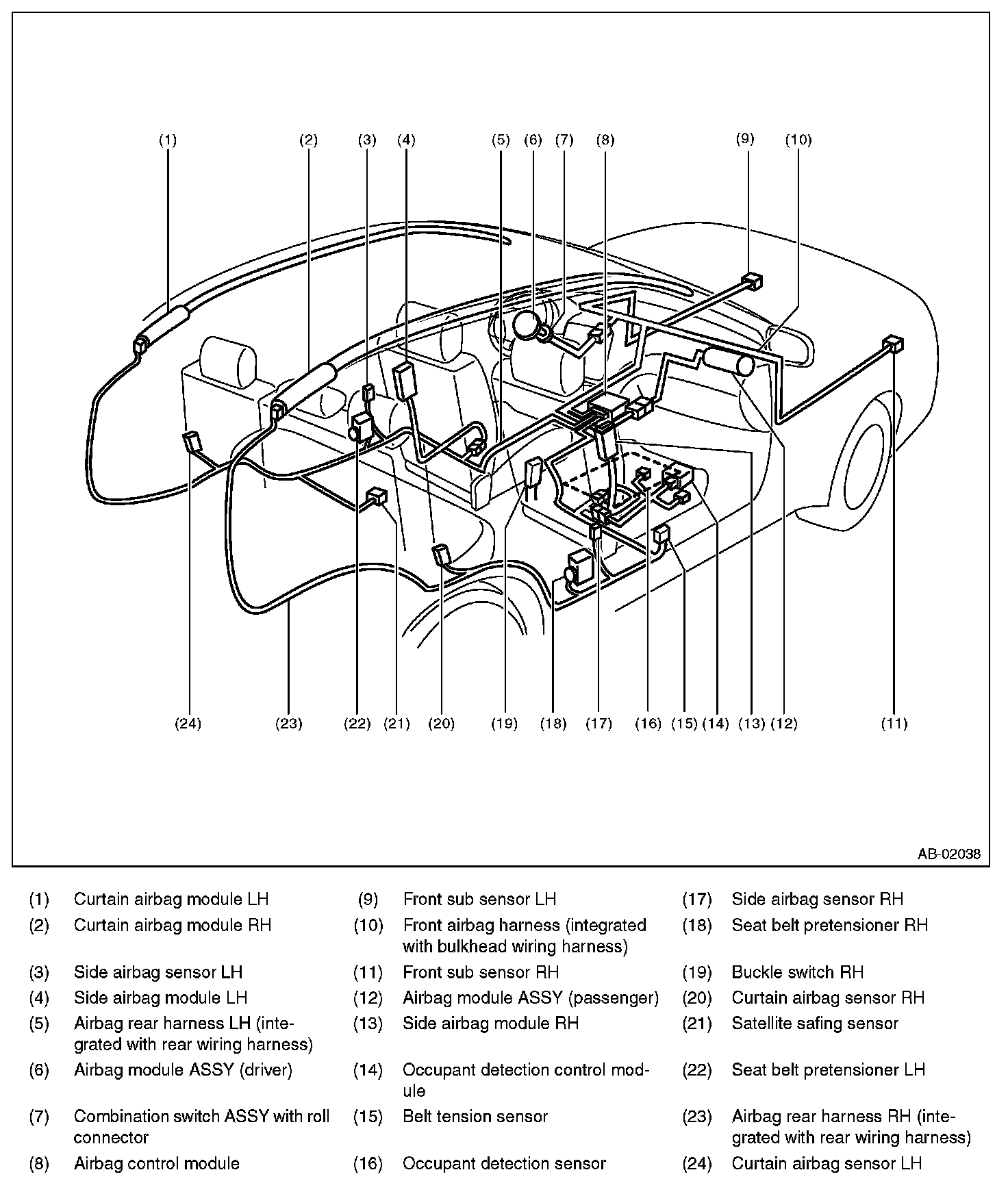

General Description
GENERAL DESCRIPTIONCOMPONENT
6. FRONT SUB SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 13 N.m (1.32 kgf-m, 9.6 ft-lb)
7. SIDE AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
8. CURTAIN AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
