Sunroof / Moonroof Switch: Service and Repair

Sunroof Switch

REMOVAL

1. Disconnect the ground cable from battery.

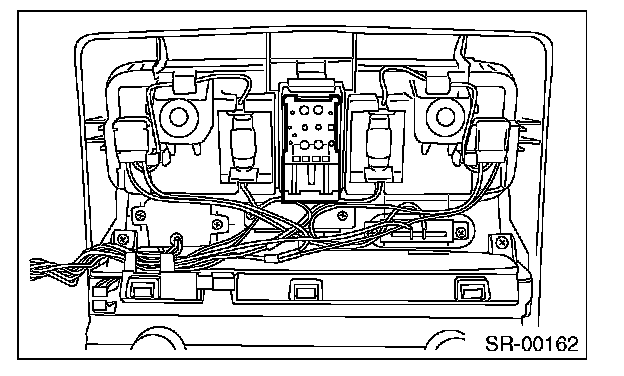

2. Remove the overhead console.







1. Push and open the rear end of the overhead console lid, and remove the screws.
2. Remove the overhead console and disconnect the harness connector.

3. Remove the sunroof switch from the overhead console.







INSTALLATION

Install each part in the reverse order of removal.
