Service Procedure

*There are two separate WQA37 Seatbelt Kits available, Kit 1 or Kit 2. Only one kit is needed for each vehicle and either one is acceptable for completing this recall. The applicable part numbers are listed in the chart under Parts Information.*

The repair procedure will consist of replacing the rear center seating position seatbelt buckles *and, when installing Kit 1,* the rear center seating position *retractable shoulder belt*.

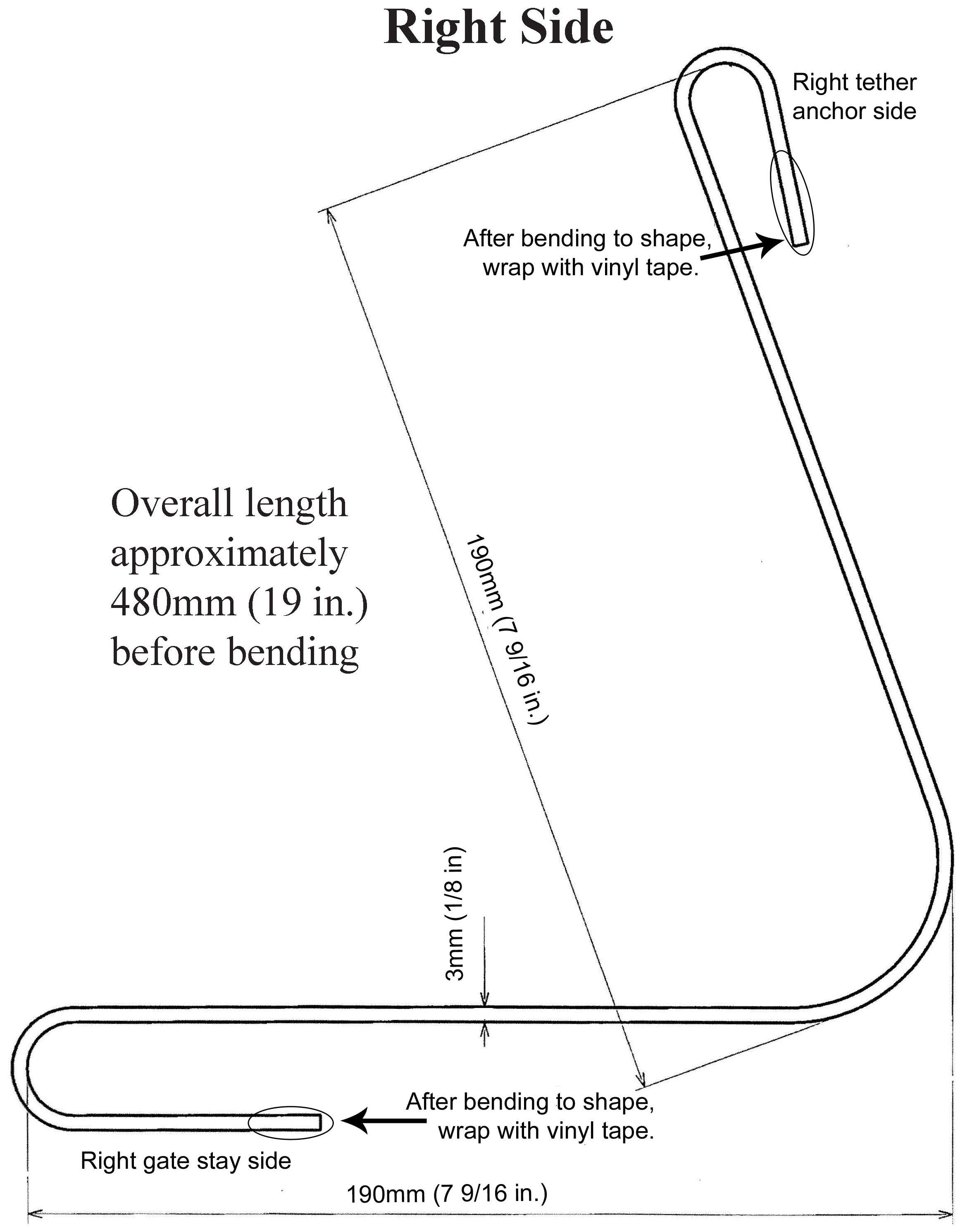

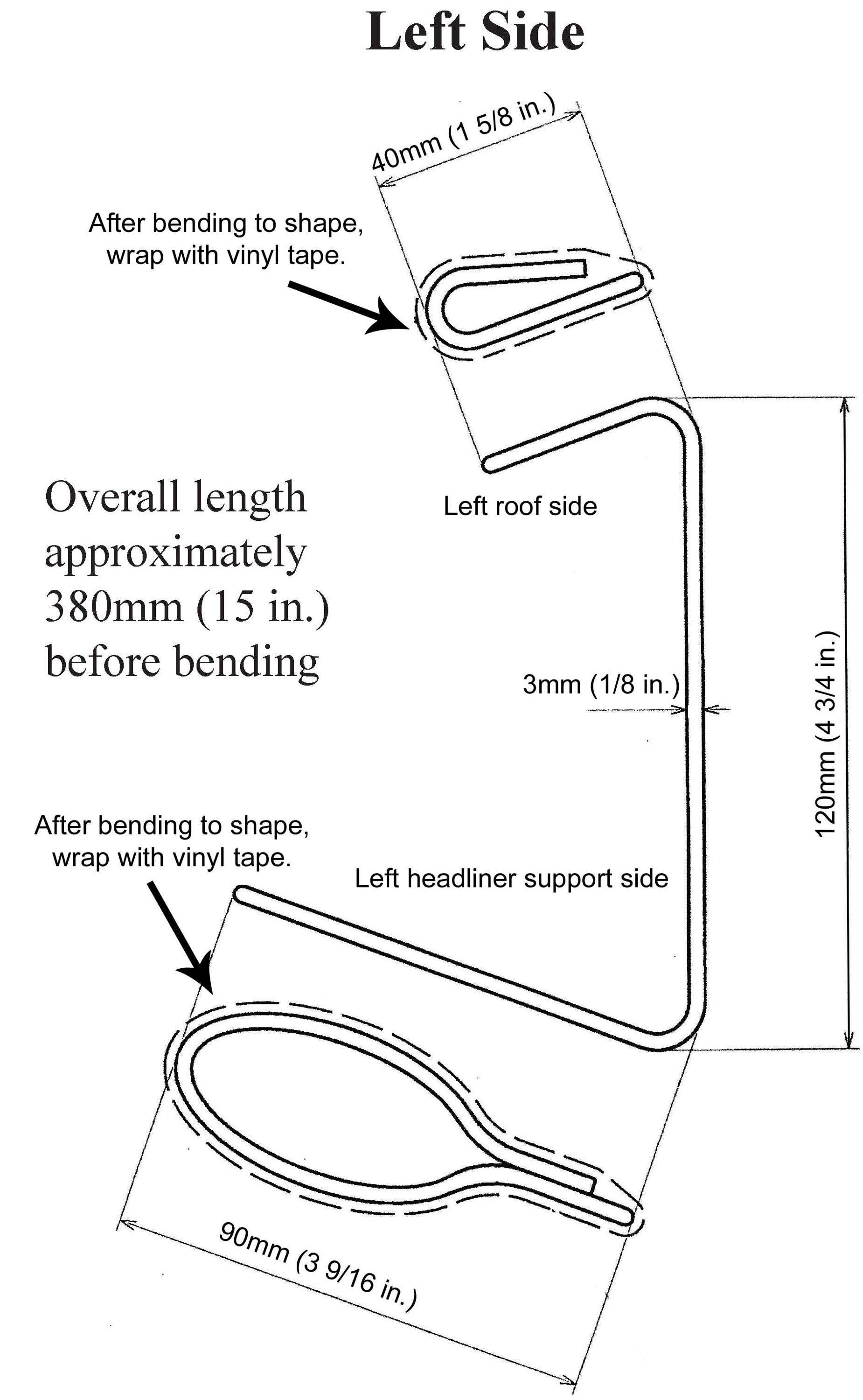

In preparation for installing *Kit 1 only,* prepare two headliner supports, one of each design using the materials listed above and the diagrams found above.
