Rear Seat Belt

REAR SEAT BELT

REMOVAL

1. OUTER SEAT BELT ASSEMBLY RH & LH
1. Remove the luggage floor mat.
2. Remove the rear seat cushion assembly and seatback shoulder.
3. Remove the seat belt lower anchor bolt.





4. Remove the rear quarter trim.
5. Remove the nuts, and remove the outer belt assembly.






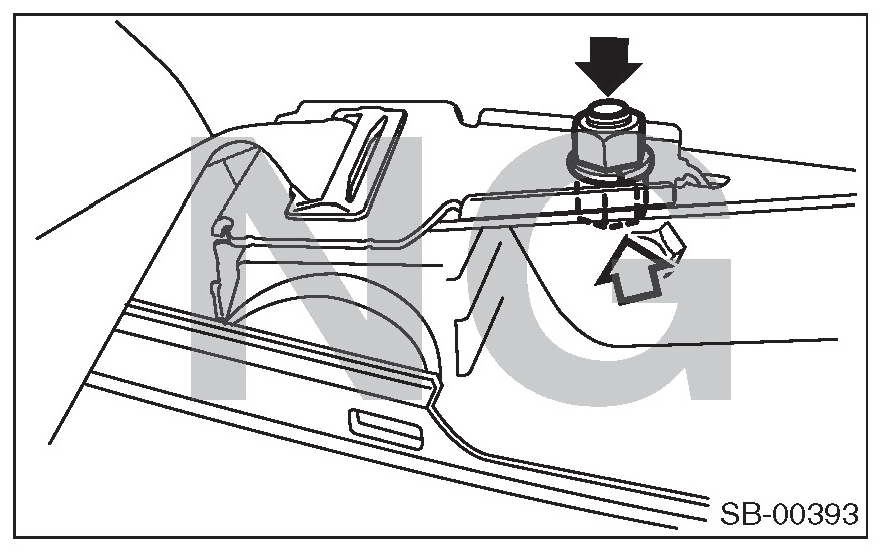

CAUTION: Do not remove the bolt and nut securing the retractor and bracket.






2. OUTER SEAT BELT CENTER ASSY
1. Carefully remove the snap lock, and remove cover (B). Pull the outer seat belt center tongue (A) from the hole towards the trim.






2. Remove the clip and drop the rear end of the roof trim from the roof.
3. Remove the bolts, then remove the outer seat belt center assembly.






3. CENTER SEAT BELT ASSEMBLY
1. Remove the rear seat cushion.
2. Remove the bolts, then remove the center seat belt assembly.






INSTALLATION

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.
- Check that the center seat belt is not assembled wrongly.

1. Install each part in the reverse order of removal.

Tightening torque:
T1: 30 N.m (3.06 kgf-m, 22.1 ft-lb)
T2: 53 N.m (5.40 kgf-m, 39.1 ft-lb)

2. Route the seat belt as shown in the figure below, and affix with Velcro tape.
- LH side






- RH side






3. Install the seat cushion and pull out the center seat belt assembly.
