Home >> Subaru >> 2012 >> Forester F4-2.5L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> U Code Charts >> U1311

U1311

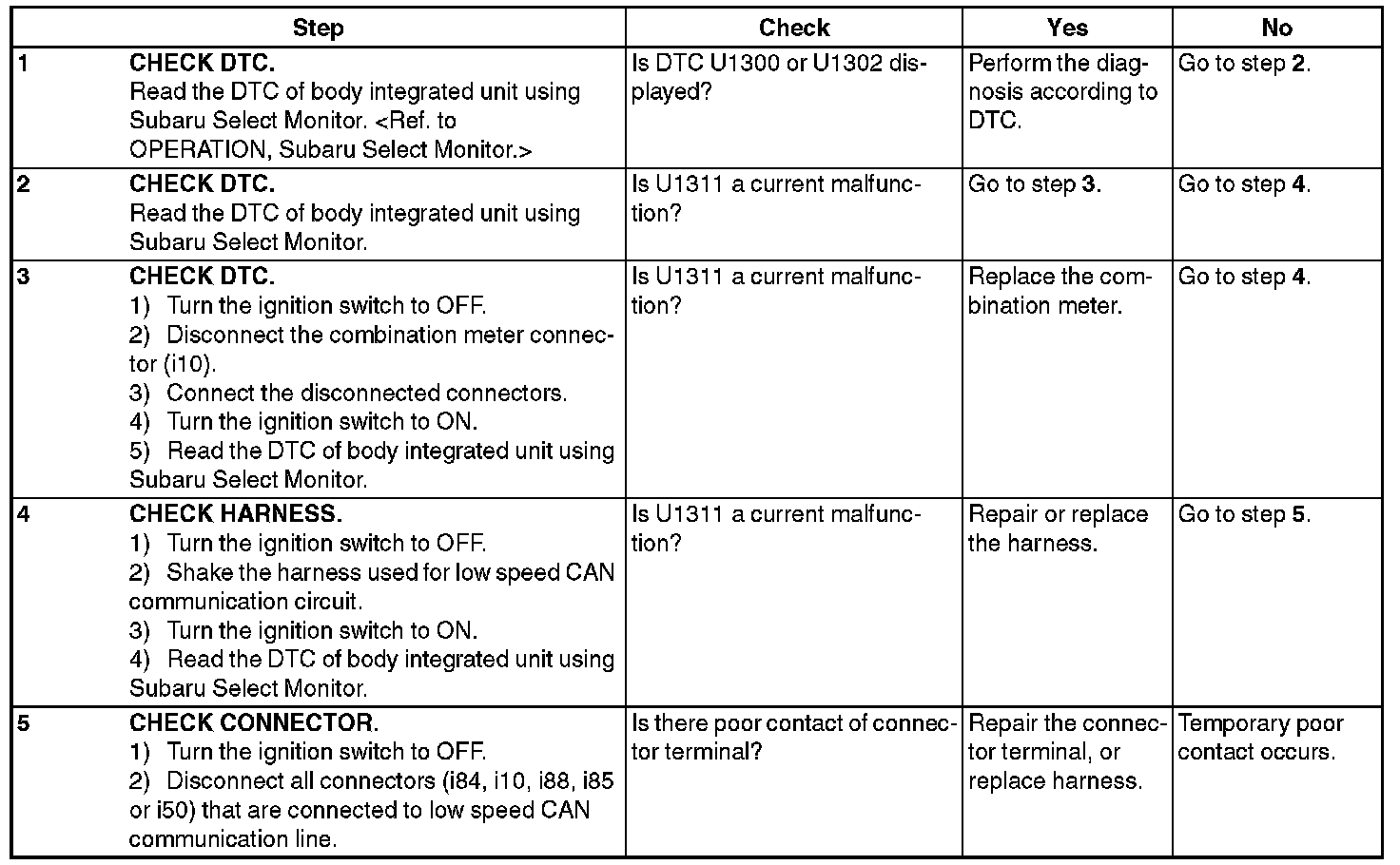

DTC U1311 CAN-LS METER UNIT DATA ABNORMAL

DTC DETECTING CONDITION:
Received error data from meter.

TROUBLE SYMPTOM:
Defective data from combination meter occurs.

WIRING DIAGRAM:
