U1223

DTC U1223 CAN-HS VDC/ABS NO-RECEIVE DATA

DTC DETECTING CONDITION:
Not received data from VDC/ABS CM.

TROUBLE SYMPTOM:
ABS warning light and VDC warning light illuminate.

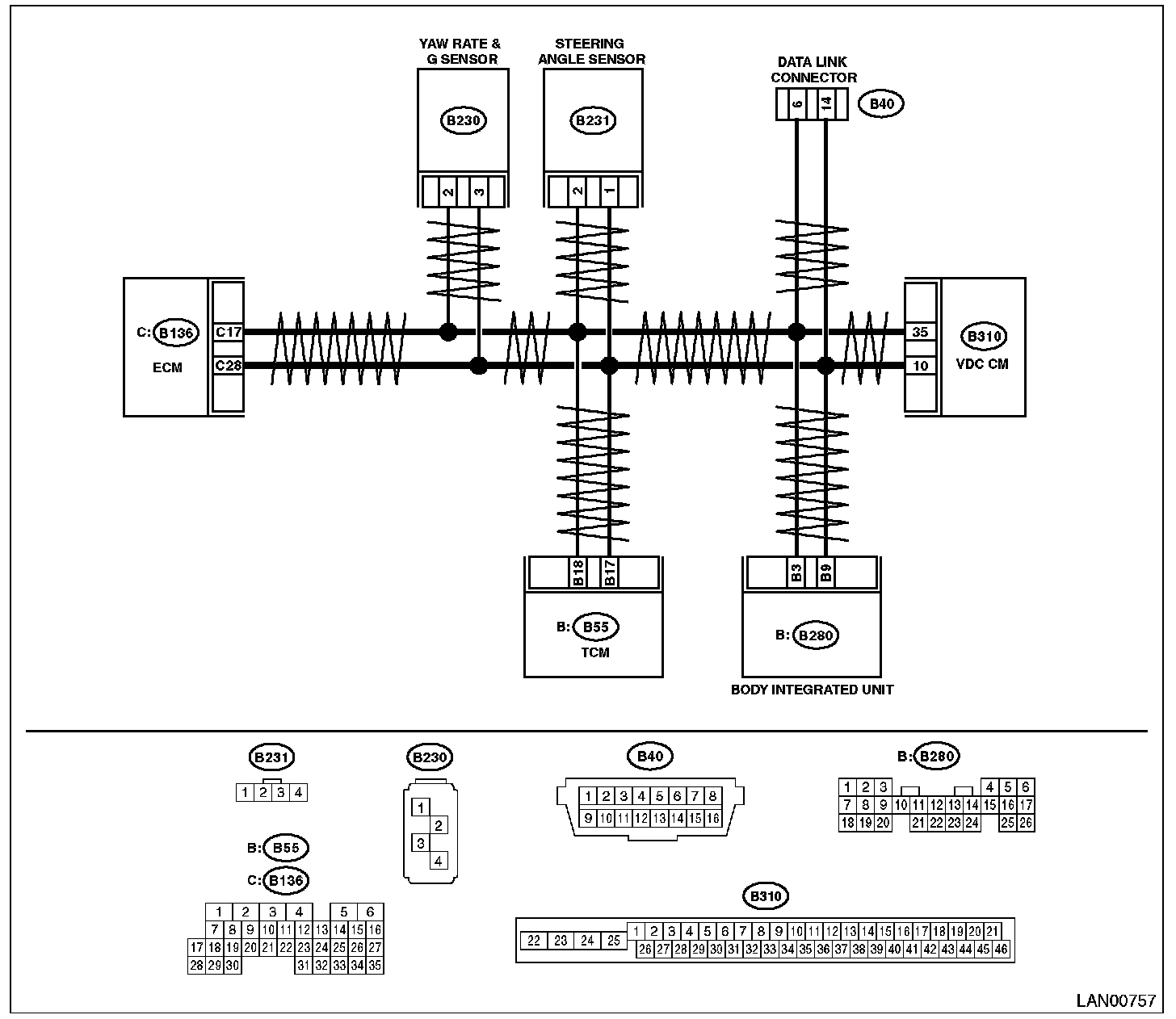

WIRING DIAGRAM:
