P2135

DTC P2135 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A"/"B" VOLTAGE CORRELATION

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2135

TROUBLE SYMPTOM:
- Improper idling
- Poor driving performance

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode. Inspection Mode

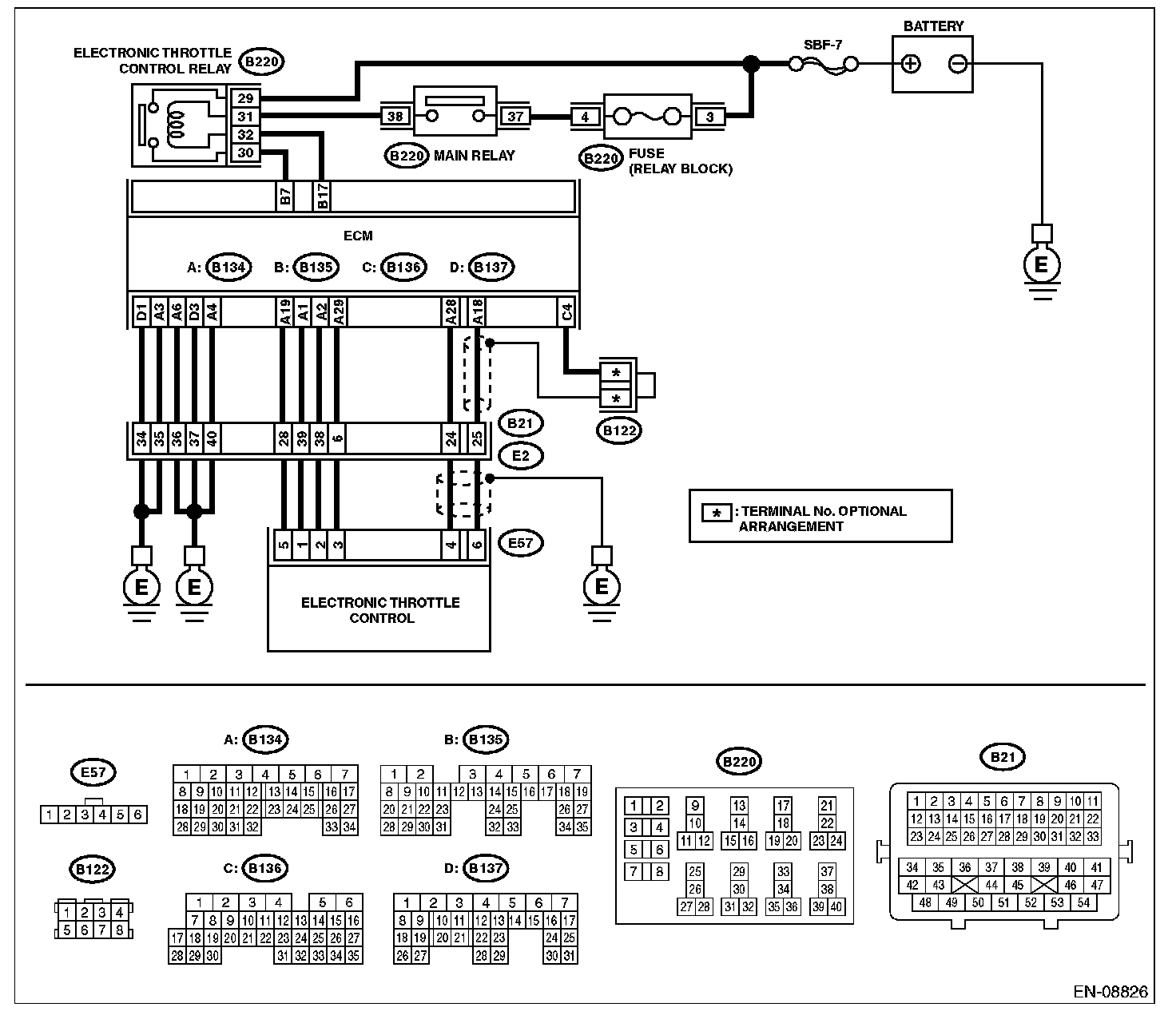

WIRING DIAGRAM:
