A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1570
P1570

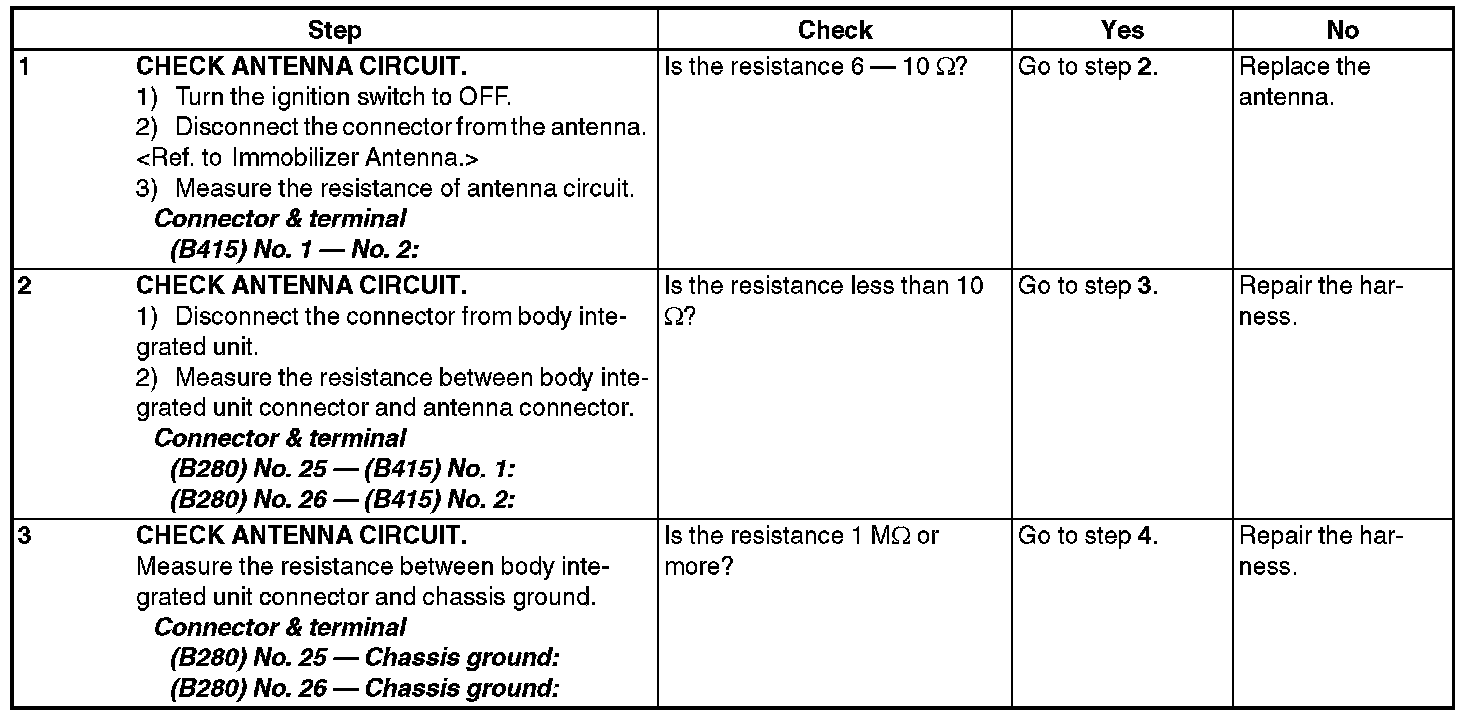

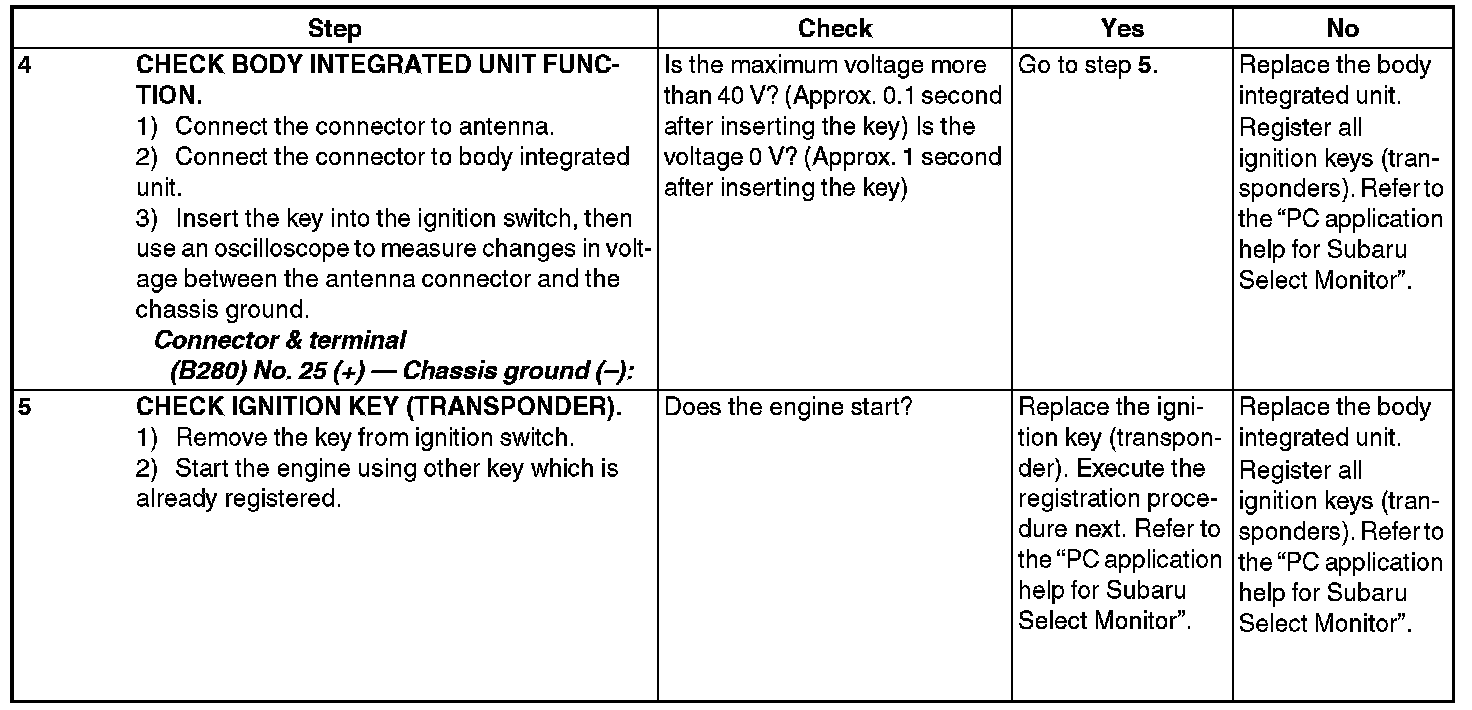

DTC P1570 ANTENNA
DTC DETECTING CONDITION:
Faulty antenna
WIRING DIAGRAM:
