P0768

DTC P0768 SHIFT SOLENOID "D" ELECTRICAL

DTC DETECTING CONDITION:
The output signal circuit of low & reverse duty solenoid is open or shorted.

TROUBLE SYMPTOM:
Gear is not changed.

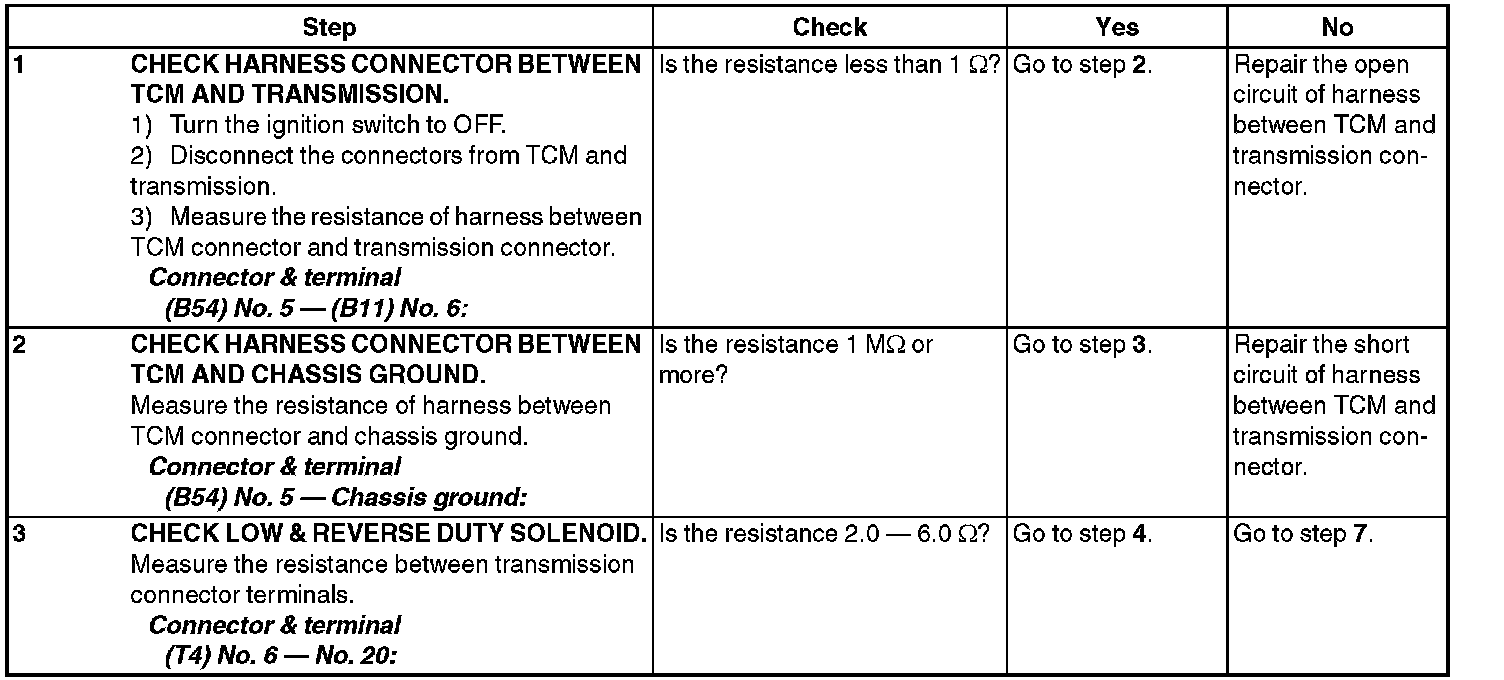

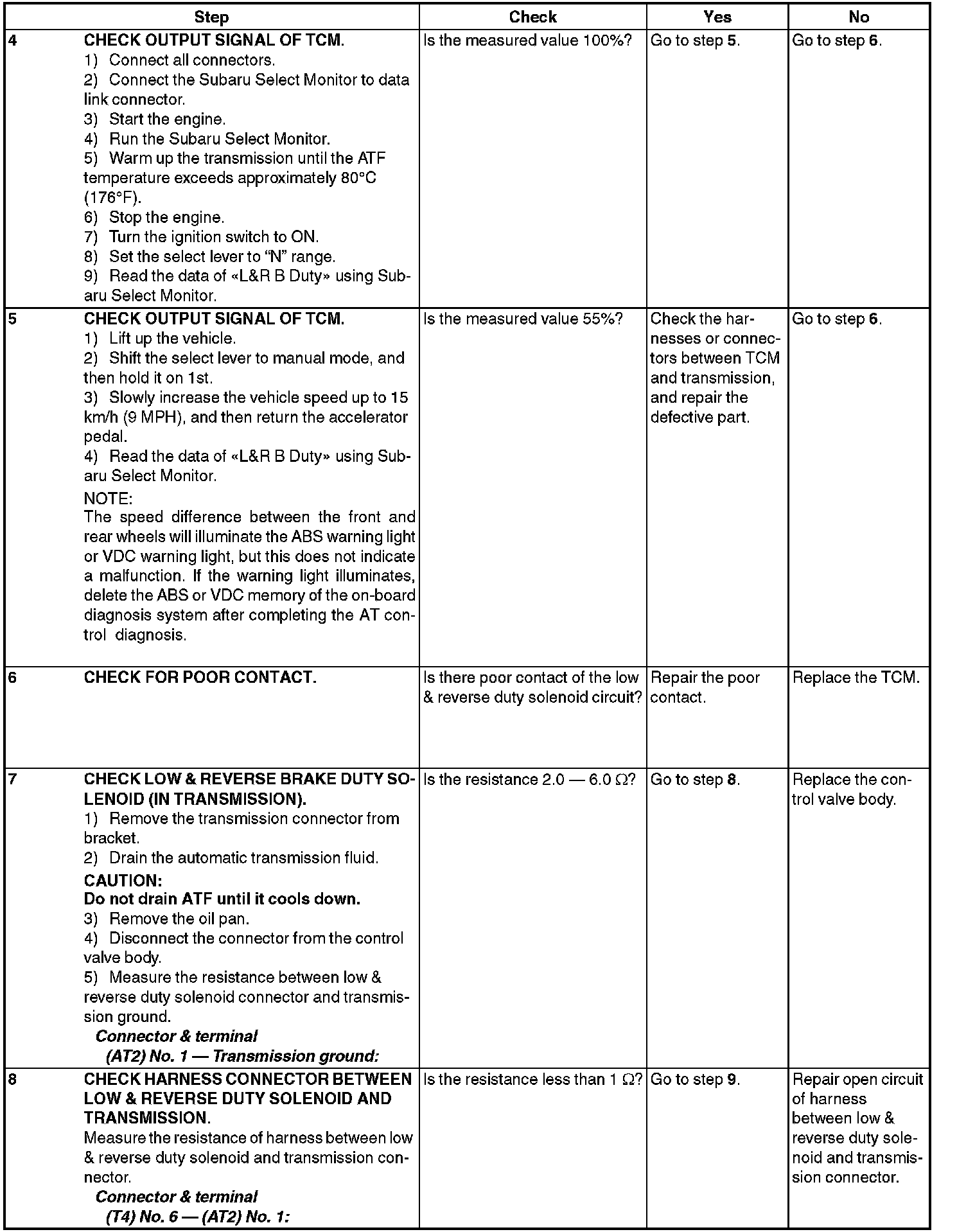

WIRING DIAGRAM:
